Fluid Filter - A/T: Service and Repair

Automatic Transmission Fluid Filter and Seal Replacement

Tools Required:
- J 6125-1B Slide Hammer
- J 23129 Axle Boot Remover

Removal Procedure

Caution: To avoid any vehicle damage, serious personal injury or death when major components are removed from the vehicle and the vehicle is supported by a hoist, support the vehicle with jack stands at the opposite end from which the components are being removed and strap the vehicle to the hoist.

1. Raise and support the vehicle.
2. Place the drain pan under the transaxle oil pan.






Notice: When removing the oil pan bolts, be careful not to damage the oil pan sealing surfaces. Such damage may result in oil leaks in this area.

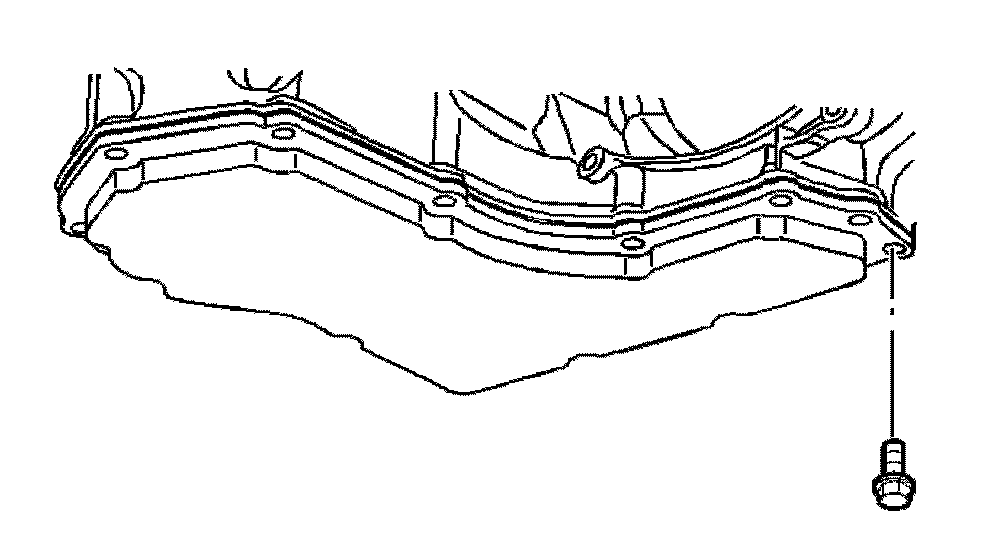

3. Remove the oil pan bolts from only the front and the sides.
4. Loosen the rear oil pan bolts about 4 turns.
5. Lightly tap the oil pan with a rubber mallet or pry in order to allow the fluid to drain.
6. Inspect the fluid color.
7. Remove the remaining oil pan bolts.






8. Remove the oil pan.






9. Remove the oil pan gasket.






10. Remove the oil filter. Use a long screwdriver in order to pry the oil filter neck out of the seal.
11. Check the oil filter seal for damage or wear.
12. As needed, remove the seal using the J 6125-1B and the J 23129.

Installation Procedure

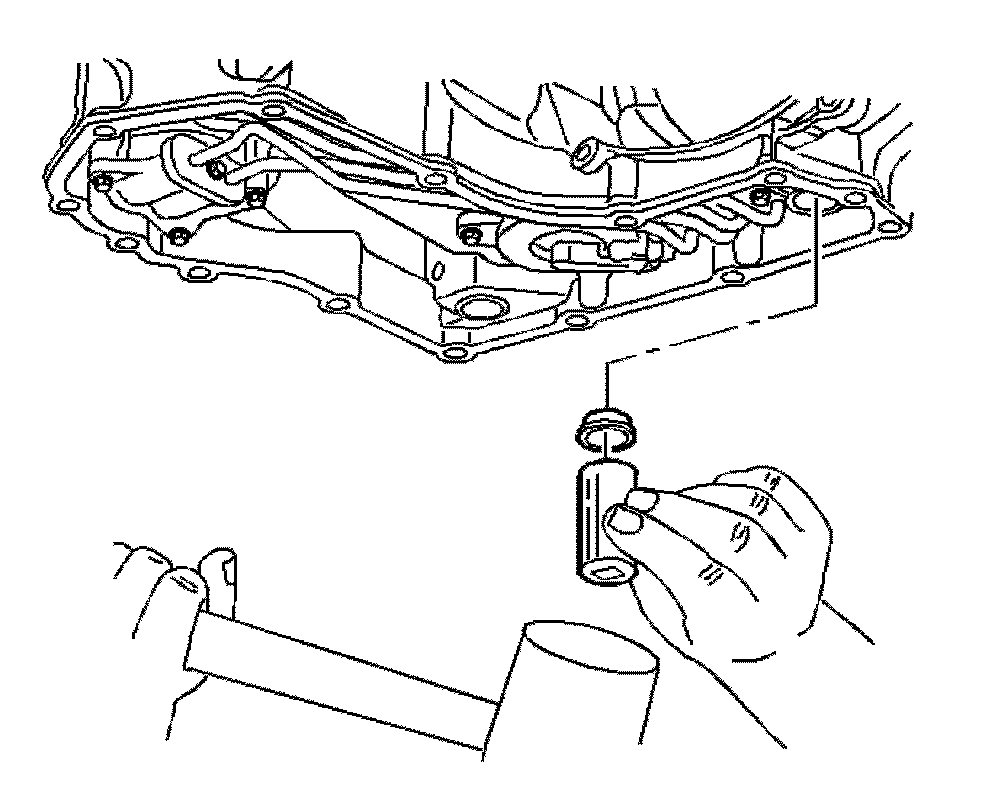

1. Install a new seal, as needed. Before installing, coat the new seal with a small amount of J 36850 or petroleum jelly.

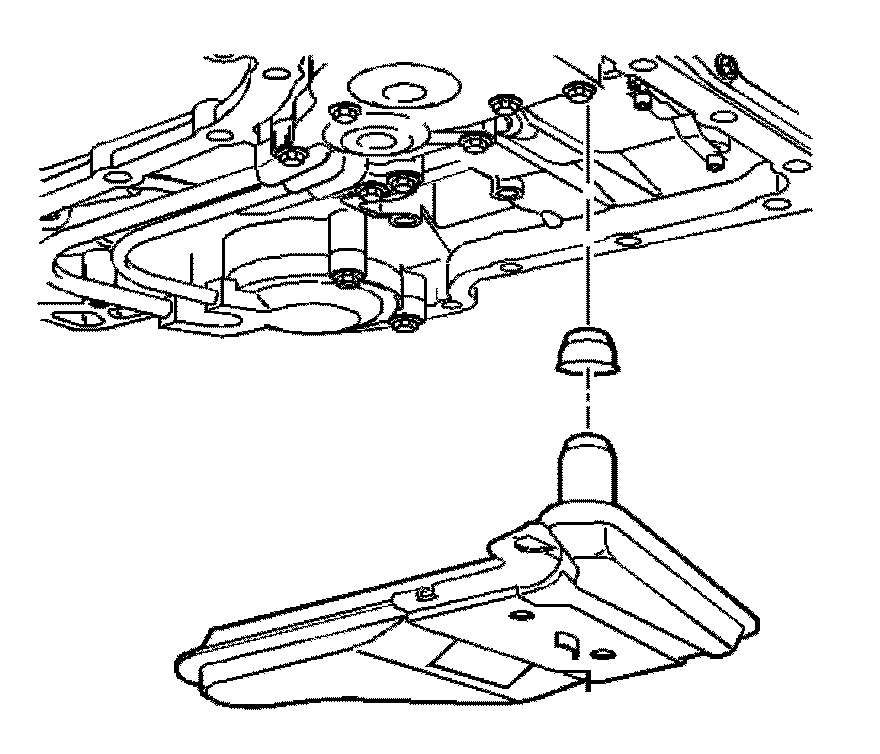

2. Install a new filter into the case.

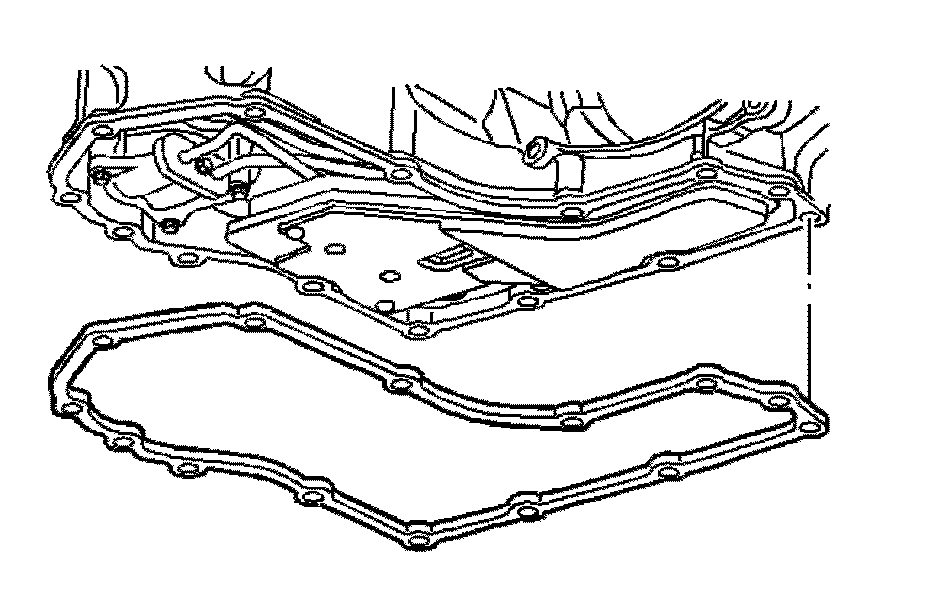

3. Install the oil pan gasket. Use a new gasket if the sealing ribs are damaged.
4. Clean and dry the oil pan. Inspect the pan for damage and replace the pan if necessary.

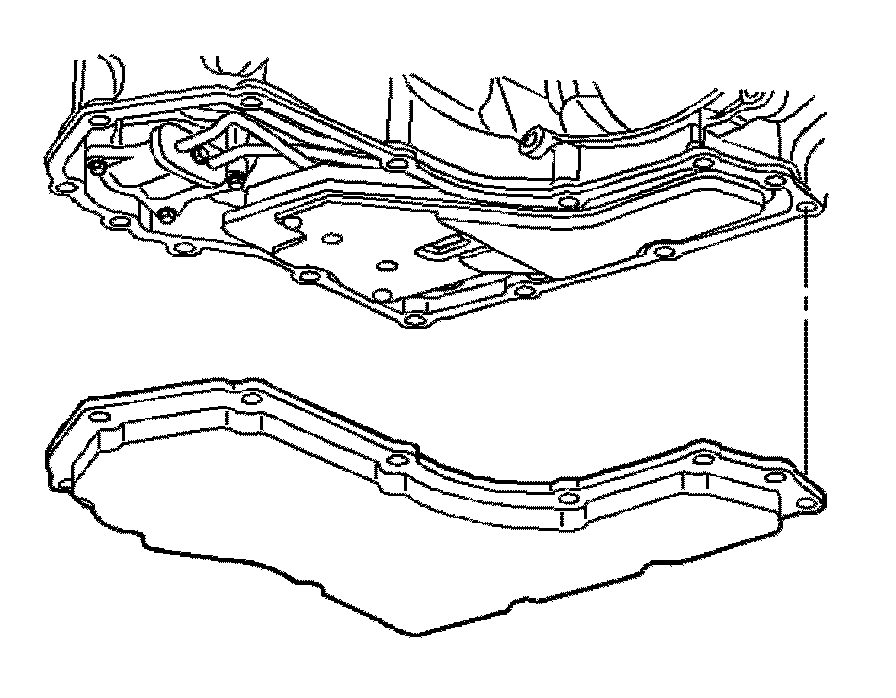

5. Install the oil pan.
6. Clean and dry the oil pan. Inspect the pan for damage and replace the pan if necessary.
7. Install the oil pan.

Notice: Use the correct fastener in the correct location. Replacement fasteners must be the correct part number for that application. Fasteners requiring replacement or fasteners requiring the use of thread locking compound or sealant are identified in the service procedure. Do not use paints, lubricants, or corrosion inhibitors on fasteners or fastener joint surfaces unless specified. These coatings affect fastener torque and joint clamping force and may damage the fastener. Use the correct tightening sequence and specifications when installing fasteners in order to avoid damage to parts and systems.

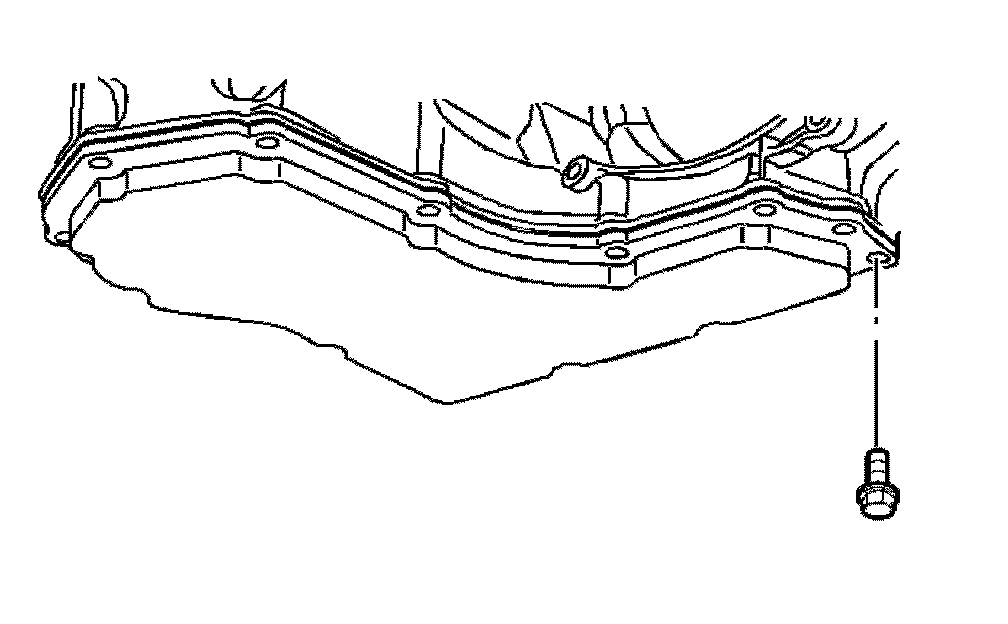

8. Install the oil pan bolts. Tighten the bolts to 10 Nm (89 lb in).
9. Lower the vehicle.
10. Fill the transaxle to the proper level.
11. Inspect the pan for leaks. Recheck the transmission fluid level.
