39. Right Hand Axle Seal Removal

Right Hand Axle Seal Removal

^ J 6125-1B Slide Hammer
^ J 23129 Universal Seal Remover





Notice: Do not damage the case bore when removing the axle seal.

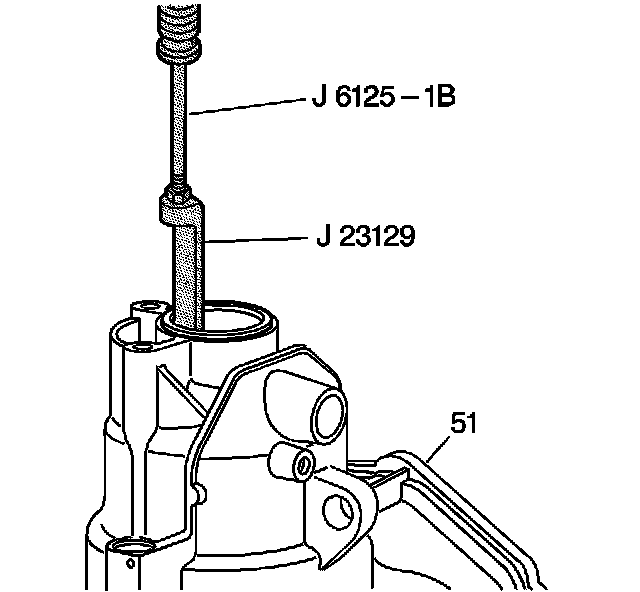

Assemble J 23129 onto J 6125-1B. Use J 6125-1B and J 23129 to remove the axle seal.
