Connector Views

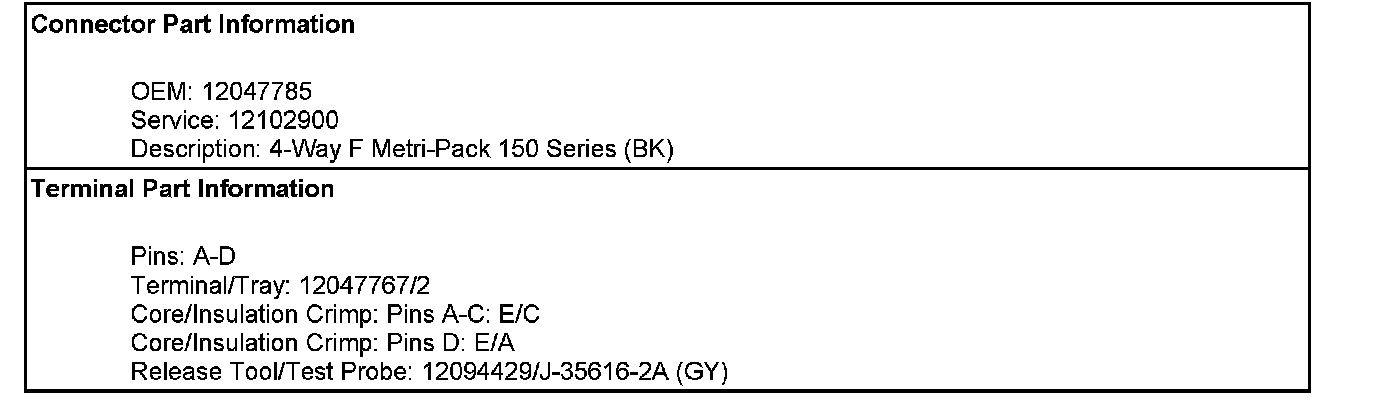

Shift Lock Control Connector End Views

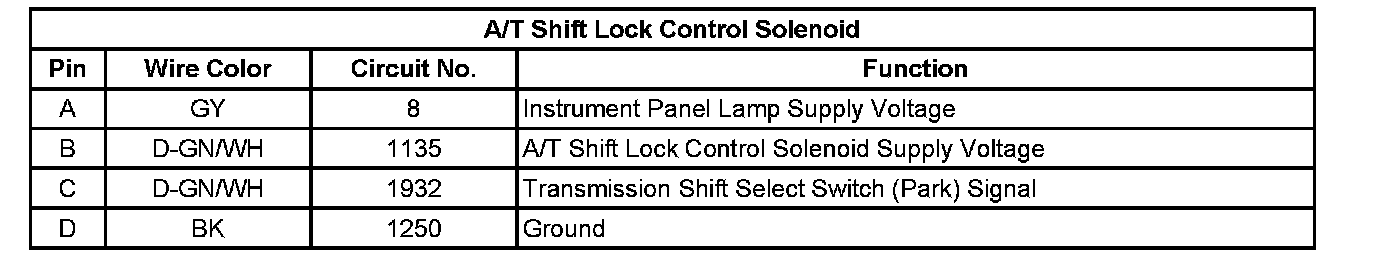

A/T Shift Lock Control Solenoid
A/T Shift Lock Control Solenoid:
