Rear Seat Armrest Replacement

Rear Seat Armrest Replacement

Removal Procedure




1. Release the J channel fastener located at the bottom of the seat back.

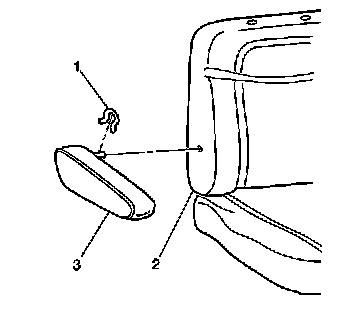

2. Use a small bladed tool release the clip (1) that retains the armrest (3) to the seatback (2).
3. Pull the armrest (3) from the seatback (2).

Installation Procedure




1. Install the retaining clip (1) to the seatback.
2. Ensure that you fully seat the retaining clip.
3. Position the armrest (3) to the hole in the seatback (2).
4. Press in on the armrest to engage the armrest into the retaining clip in the seatback.
5. Pull outward on the armrest to ensure the armrest is fully secured into the retaining clip.
6. Engage the J channel fastener at the bottom of the seat back.
