System Diagram

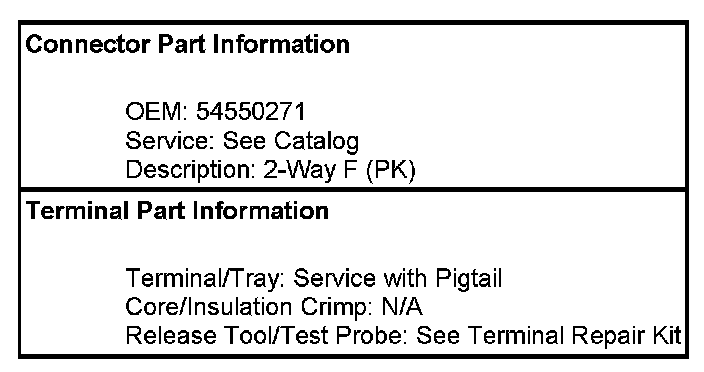

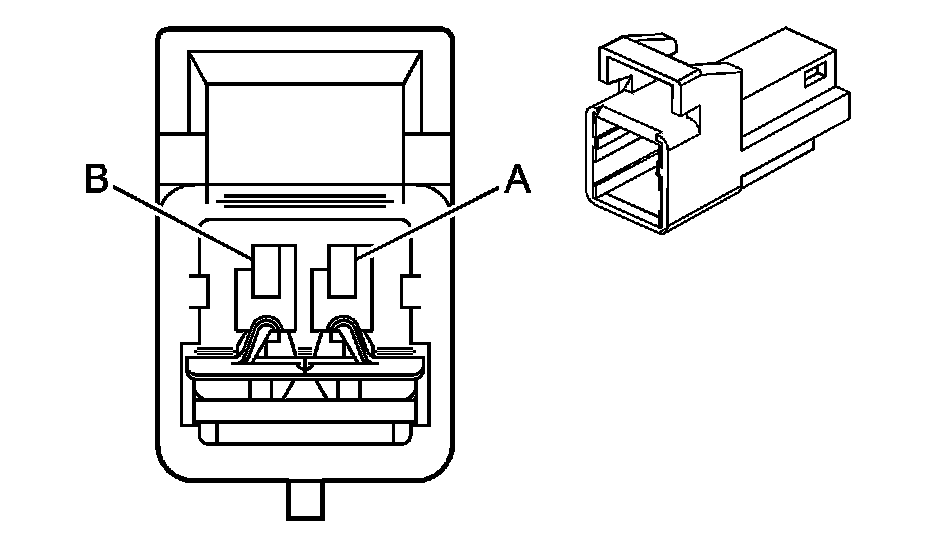

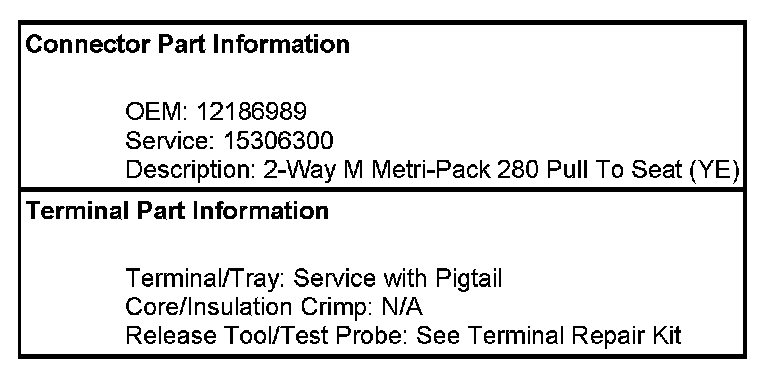

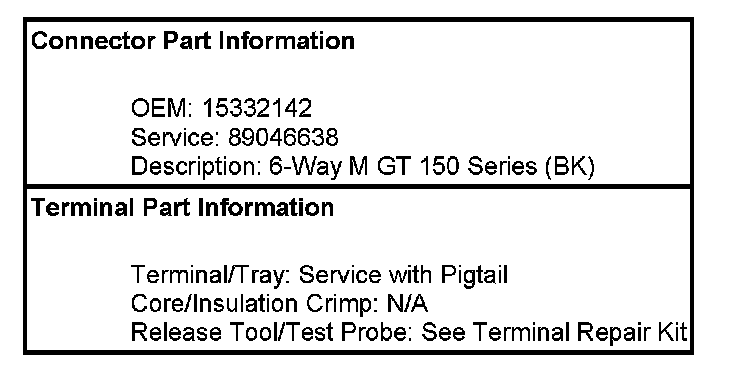

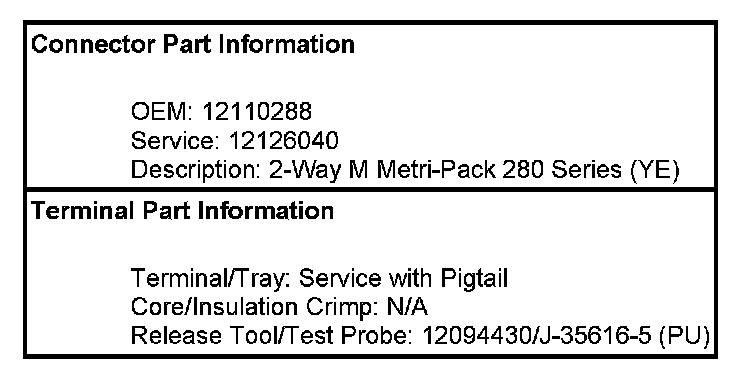

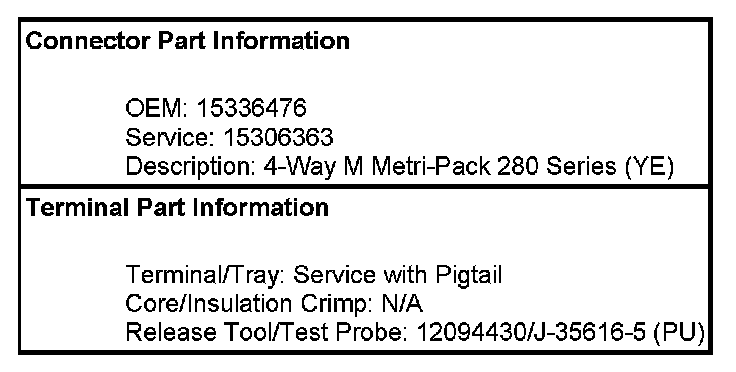

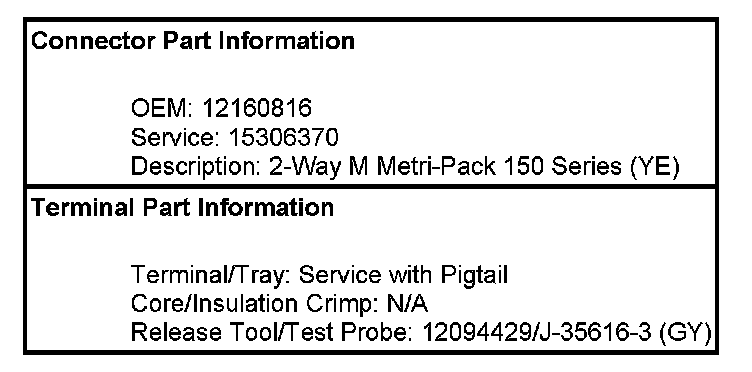

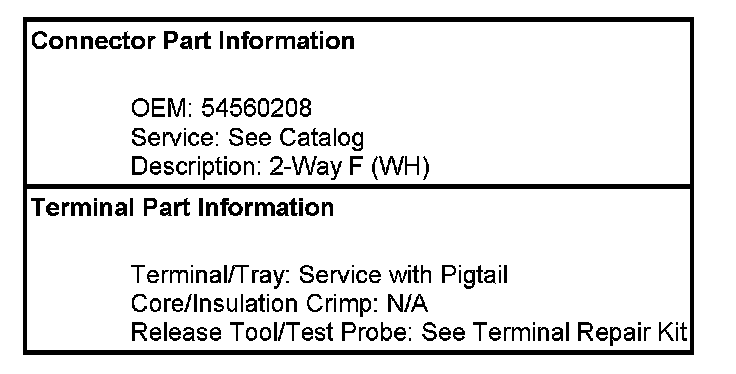

SIR Connector End Views

Inflatable Restraint Front End Sensor (Heavy Duty)

Inflatable Restraint Front End Sensor (Light Duty)

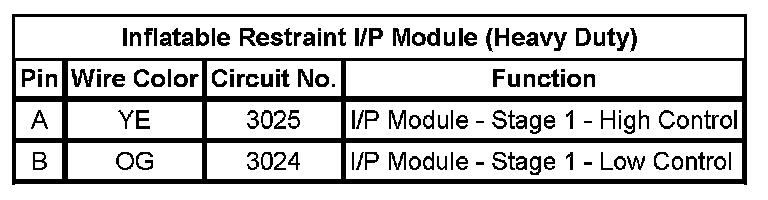

Inflatable Restraint I/P Module (Heavy Duty)

Inflatable Restraint I/P Module (Light Duty)

Inflatable Restraint I/P Module Disable Switch (Heavy Duty)

Inflatable Restraint PASSENGER AIR BAG ON/OFF Indicator (Light Duty w/o YF7)

Inflatable Restraint Passenger Presence System (PPS) Module (Light Duty w/o YF7)

Inflatable Restraint Seat Position Sensor (SPS) - Left (Light Duty)

A/T Shift Lock Control Solenoid:

Inflatable Restraint Seat Position Sensor (SPS) - Right (Light Duty)

A/T Shift Lock Control Solenoid:

Inflatable Restraint Sensing and Diagnostic Module (SDM)

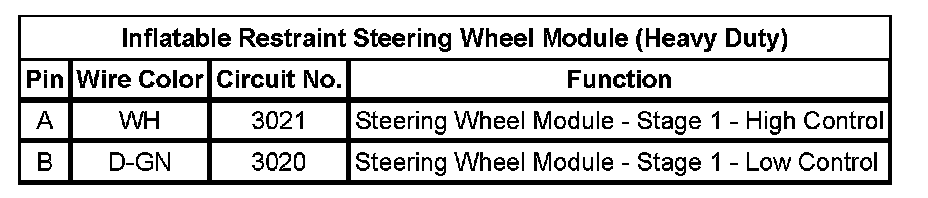

Inflatable Restraint Steering Wheel Module (Heavy Duty)

Inflatable Restraint Steering Wheel Module - C1 (Light Duty)

Inflatable Restraint Steering Wheel Module - C2 (Light Duty)

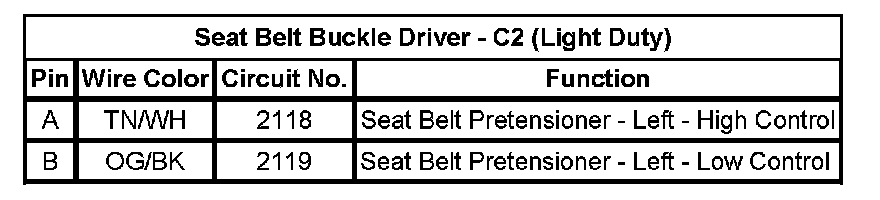

Seat Belt Buckle Driver - C2 (Light Duty)

Seat Belt Buckle Passenger - C2 (Light Duty)
