Cabin Ventilation Duct: Service and Repair



Pressure Relief Valve Replacement

Removal Procedure

1. Remove the tail lamp filler panel from the vehicle.
2. Remove the tail lamp assembly from the vehicle.

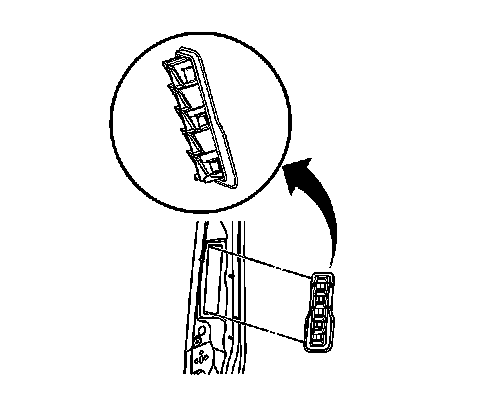

3. Pull the air relief vent away from the body in order to release the retainers.
4. Remove the air relief vent from the vehicle.

Installation Procedure




1. Install the air relief vent to the vehicle.
2. Align the retainers on the air relief vent with the body.
Press the vent into place.
3. Install the tail lamp assembly to the vehicle.
4. Install the tail lamp filler panel to the vehicle.
