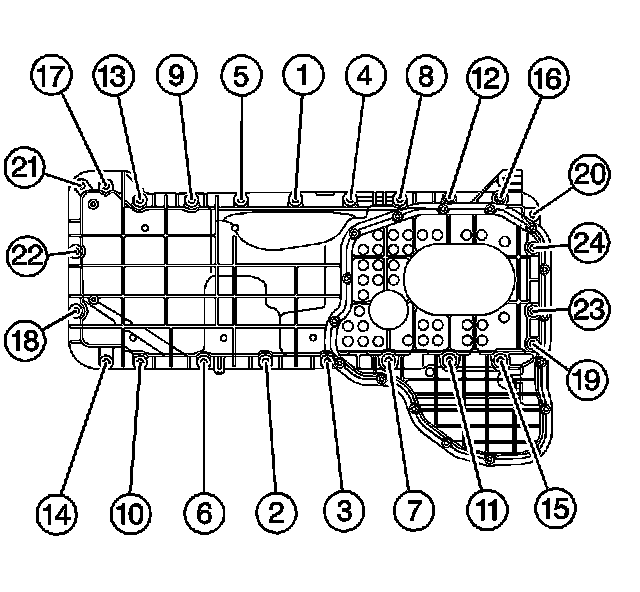

Oil Pan, Engine
Lower
Oil PanInstall the lower
oil pan bolts and nuts.
Tighten the bolts and nuts in the sequence shown to
10 N.m (89 lb in).

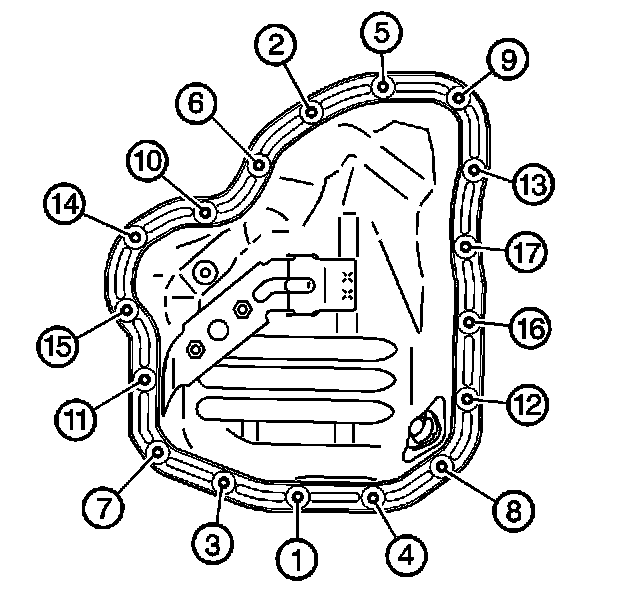

Upper
Oil PanInstall any brackets and the upper
oil pan bolts.
Tighten the bolts in the sequence shown to
20 N.m (15 lb ft).
Oil Pan Skid Plate Bolt
20 N.m (15 lb ft)
