Radio/Navigation System Schematics

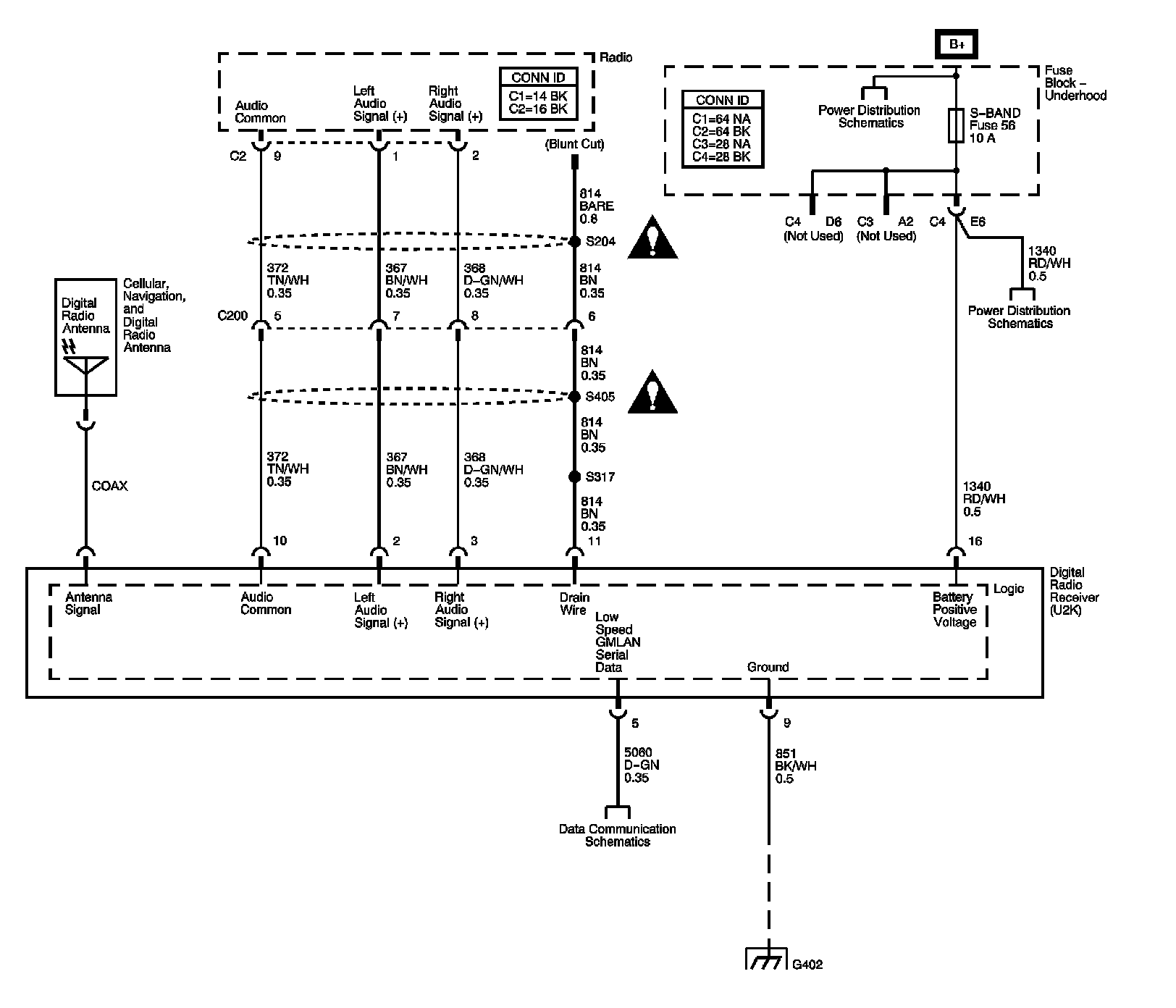

Radio/Navigation System SchematicsRadio w/ UW5Radio w/ UQ3 (1 of 2)Radio w/ UQ3 (2 of 2)Digital Radio Receiver (U2K)Locations: The locations for the Connectors, Grounds, Splices, and Grommets shown within these diagrams can be found via their numbers at Vehicle Locations.
Locations
