Entertainment/Communication Component Views



Entertainment/Communication Component Views

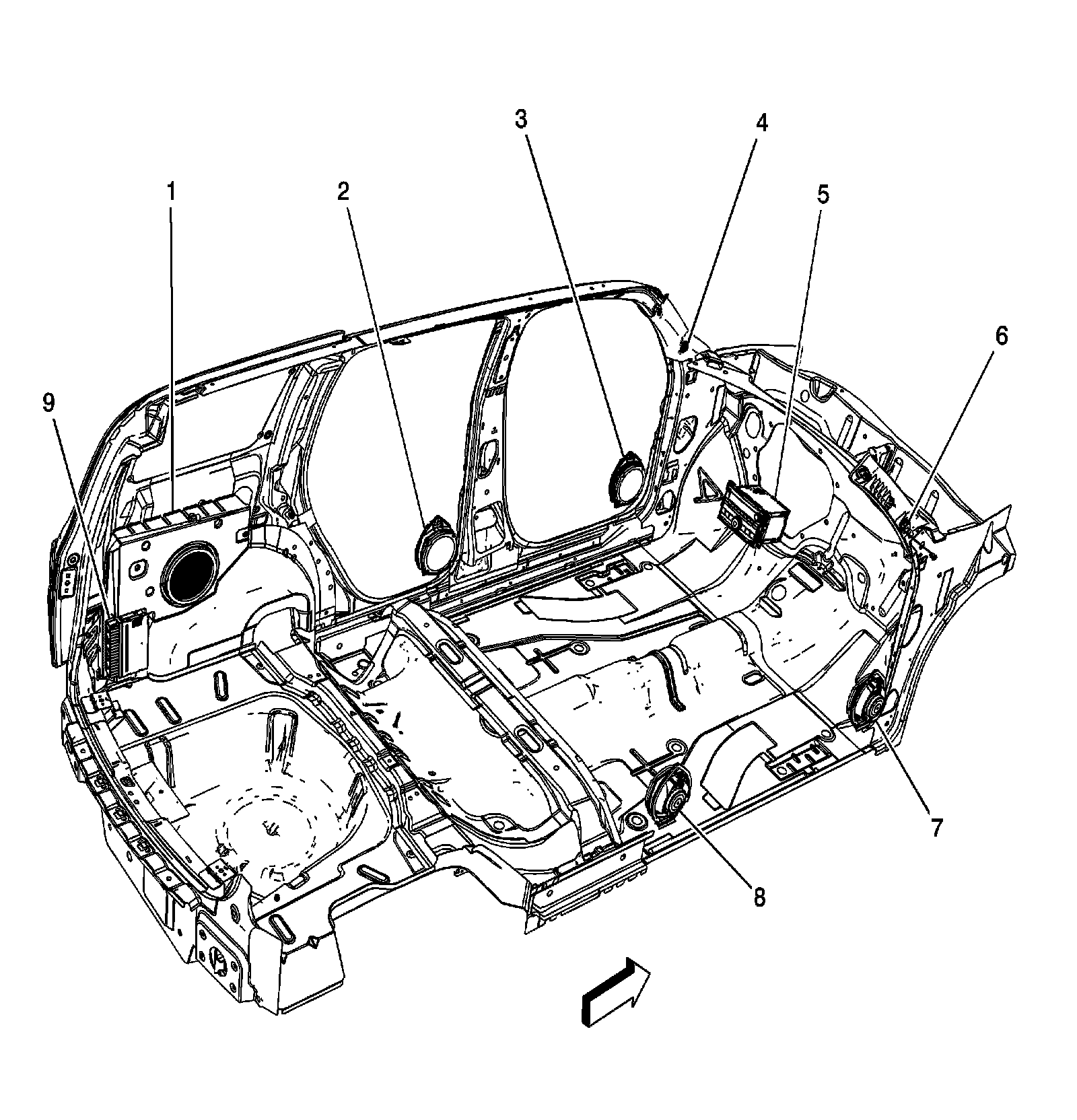

Audio Components




1 - Speaker - Subwoofer (UQ3)
2 - Speaker - LR Door
3 - Speaker - LF Door
4 - Speaker - LF Tweeter
5 - Radio
6 - Speaker - RF Tweeter
7 - Speaker - RF Door
8 - Speaker - RR Door
9 - Audio Amplifier (UQ3)

RR of the Passenger Compartment




1 - Digital Radio Receiver (U2K)
2 - Vehicle Communication Interface Module (VCIM) (UE1)
3 - G403
4 - Battery Current Sensor
5 - Battery
6 - Inline Fuse - 50 AMP

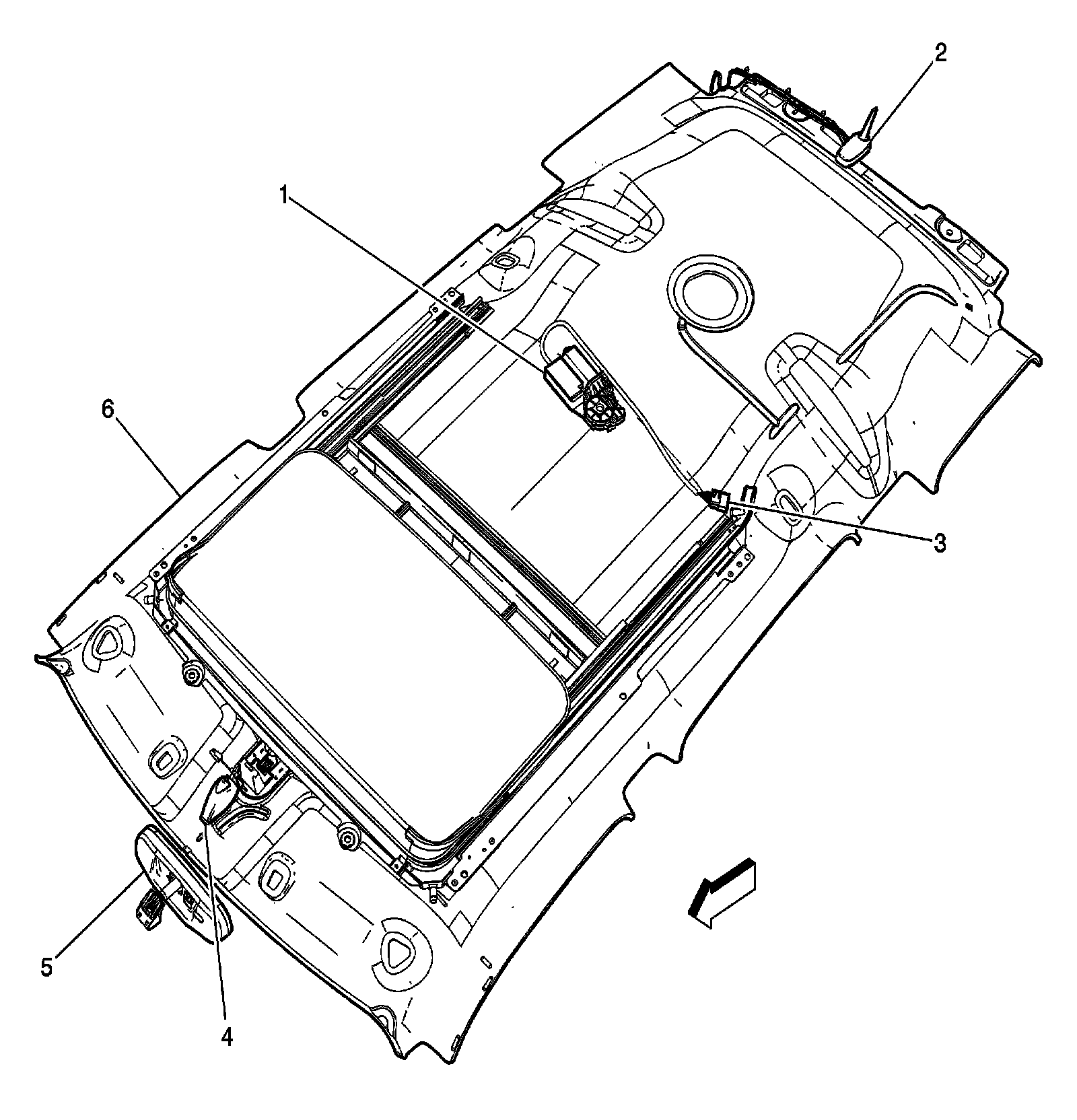

Headliner Components - Top




1 - Sunroof Control Module (CF5)
2 - Cellular, Navigation (UE1) and Digital Radio Antenna (U2K)
3 - C397
4 - Radio Antenna Base
5 - Inside Rearview Mirror
6 - Headliner

Headliner Components - Bottom




1 - Headliner
2 - Dome Lamp
3 - Cellular Microphone (UE1)
4 - OnStar Button Assembly (UE1)
5 - Inside Rearview Mirror
6 - Sunroof Switch (CF5)
7 - Console Flood Lamp

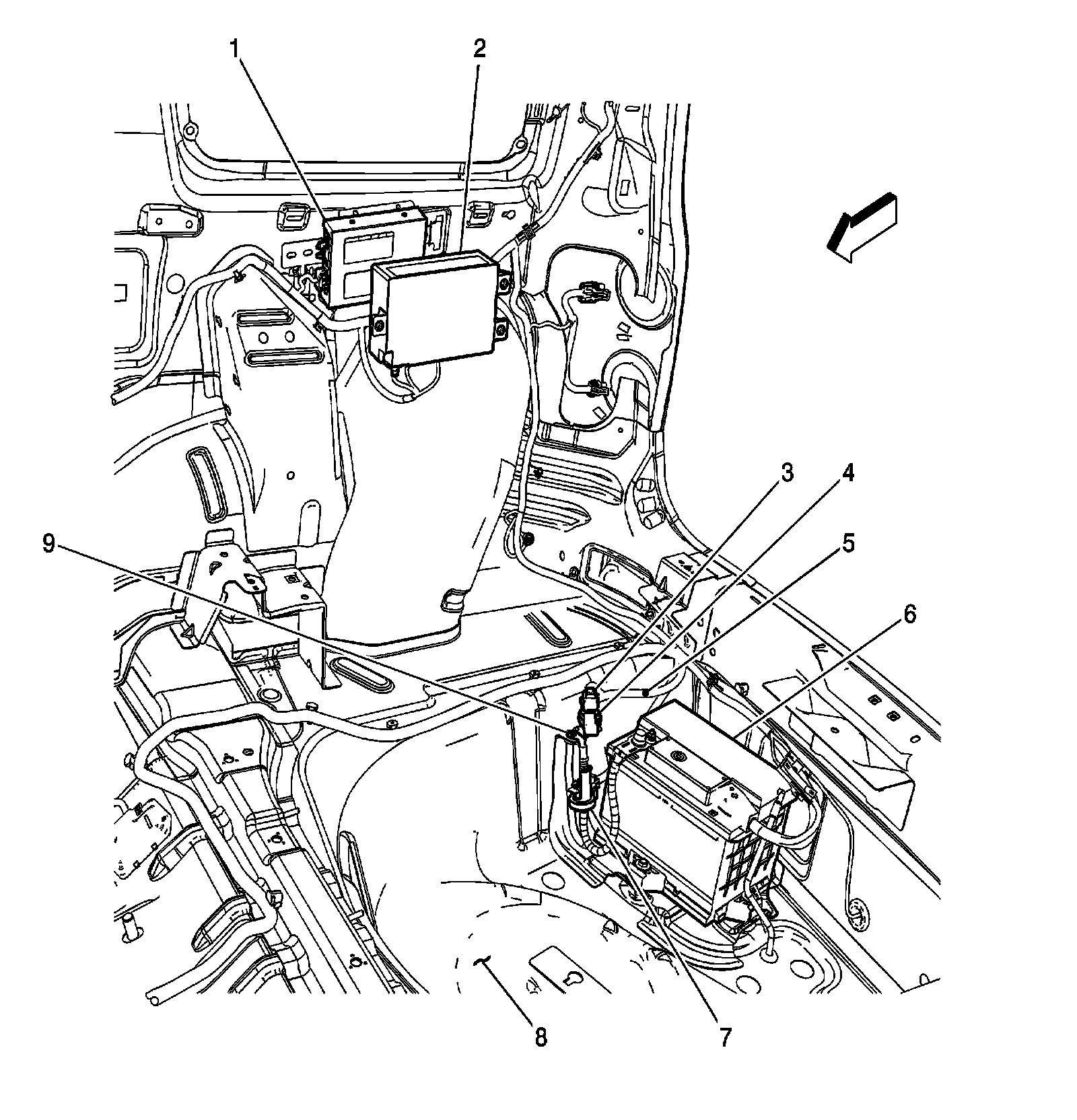

RR of the Passenger Compartment




1 - Digital Radio Receiver (U2K)
2 - Vehicle Communication Interface Module (VCIM) (UE1)
3 - VCIM fuse Holder - 10AMP (UE1)
4 - BCM Fuse holder - 50AMP
5 - S411 (UE1)
6 - Battery
7 - Battery Current Sensor
8 - Floor Panel
9 - G403
