Air Bag Systems

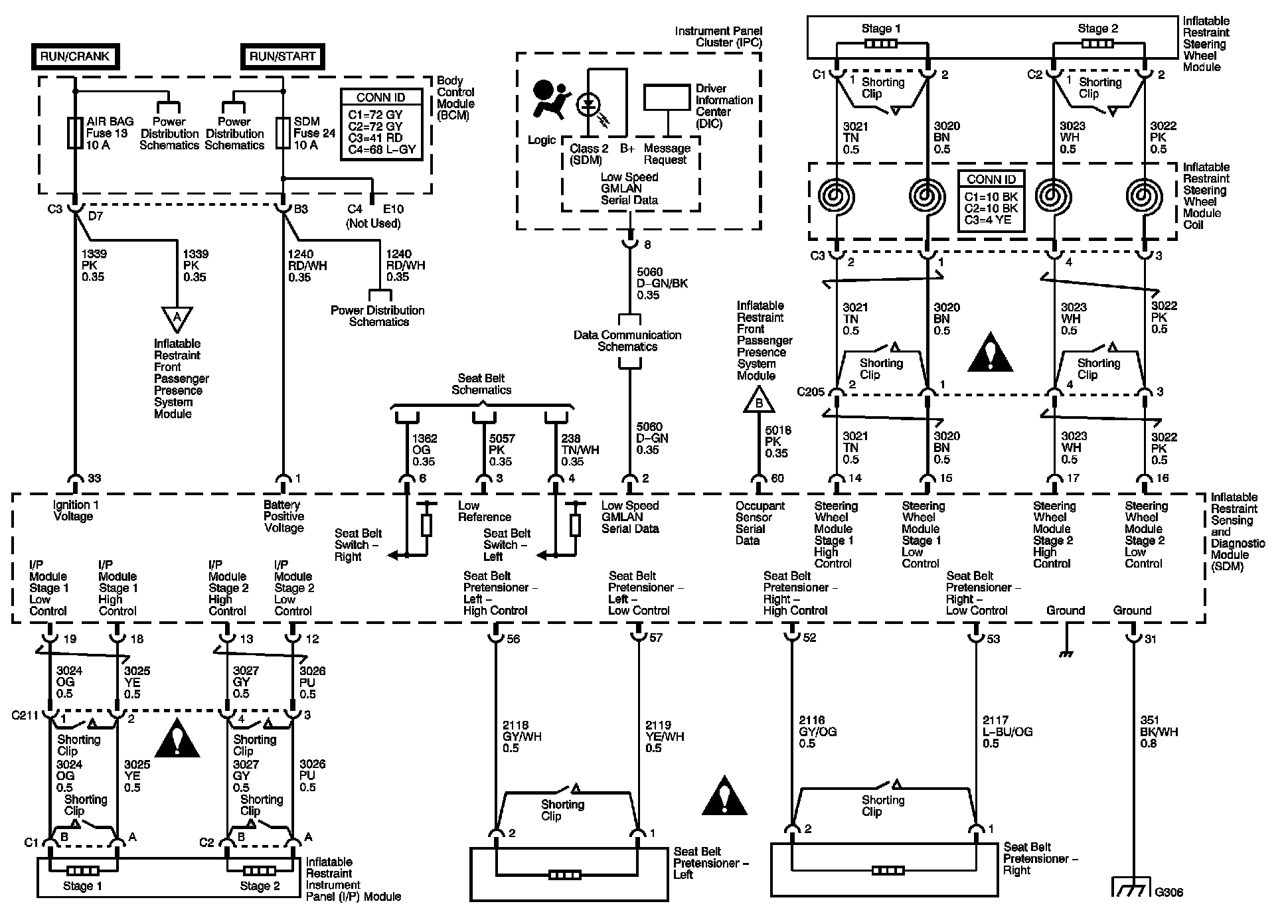

SIR SchematicsSIR Indicators, Power, Ground, Pretensioners, and Front Air Bag ModulesSide Impact (ASF), Roof Rail Module, and Front End SensorPassenger Presence SystemLocations: The locations for the Connectors, Grounds, Splices, and Grommets shown within these diagrams can be found via their numbers at Vehicle Locations.
Locations
