Transmission Holding Fixture Assemble



Transmission Holding Fixture Assemble

Tools Required

* J 41230 Transmission Support Fixture
* J 41230-TEM Drill Template
* J 3289-20 Support Fixture





Caution: To reduce the possibility of personal injury or transmission damage, make sure, when doing the next step, that all of the bolts for the support fixture are installed as shown, and that the bolts are tightened to 11 N.m (98 lb in).

Important: J 41230 should be updated using J 41230-TEM due to transmission mounting changes.

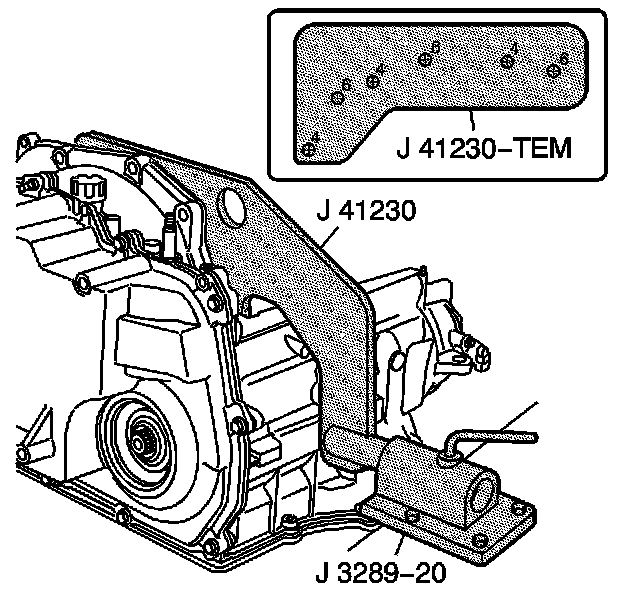

1. Install the J 41230 transmission support fixture onto the transmission.

Notice: Refer to Fastener Notice.

2. Install the support fixture bolts.

Tighten the support fixture bolts to 11 N.m (8 lb ft).

3. Install the transmission and the support fixture onto the J 3289-20 fixture base.
4. Position the transmission with the side cover facing down.
5. Insert the pin into the J 3289-20 fixture base in order to lock the unit into place.
