Transmission Control Lever Knob Replacement



Transmission Control Lever Knob Replacement

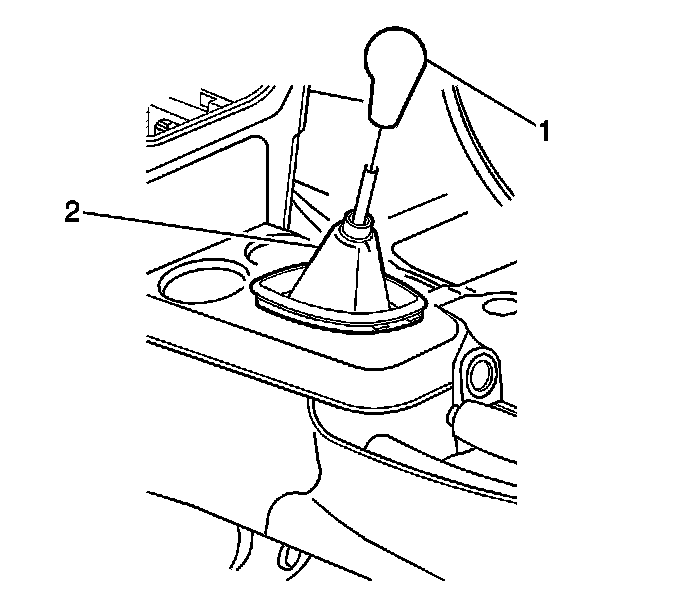

Removal Procedure




1. Twist the shift control boot collar 1/4 turn and disconnect from the shift control boot (2).
2. Remove the shift control knob (1) upward from the shift control assembly.

Installation Procedure




1. Install the shift control knob (1) to the shift control assembly.
2. Install the shift control boot collar (2) to the shift control knob (1) and twist 1/4 turn to lock.
