Television / Monitor: Service and Repair

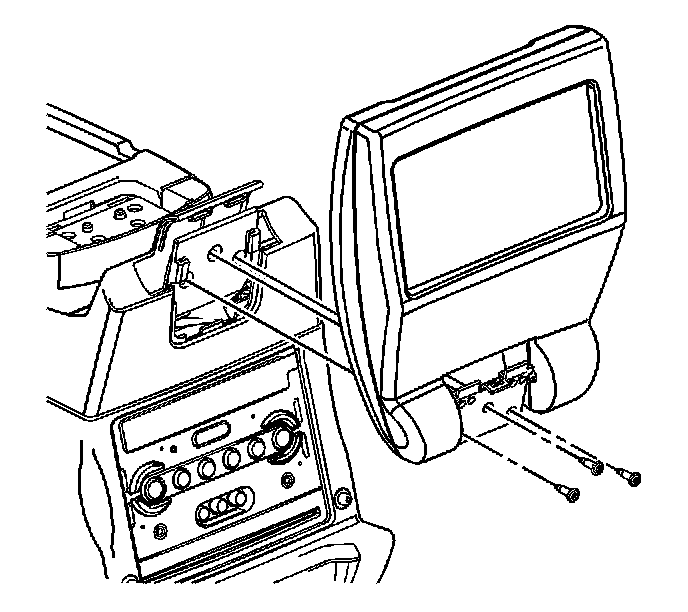

Video Display Replacement

Removal Procedure

1. Remove the hinge cover.
2. Remove the video display hinge screws.
3. Remove the video display wire harness connector.




4. Remove the video display.

Installation Procedure




1. Install the video display.
2. Install the video display wire harness connector.

Notice: Refer to Fastener Notice.

3. Install the video display hinge screws.

Tighten the screws to 1 N.m (10 lb in).

4. Install the hinge cover.
