Front Carpet Retainer Replacement



Front Carpet Retainer Replacement

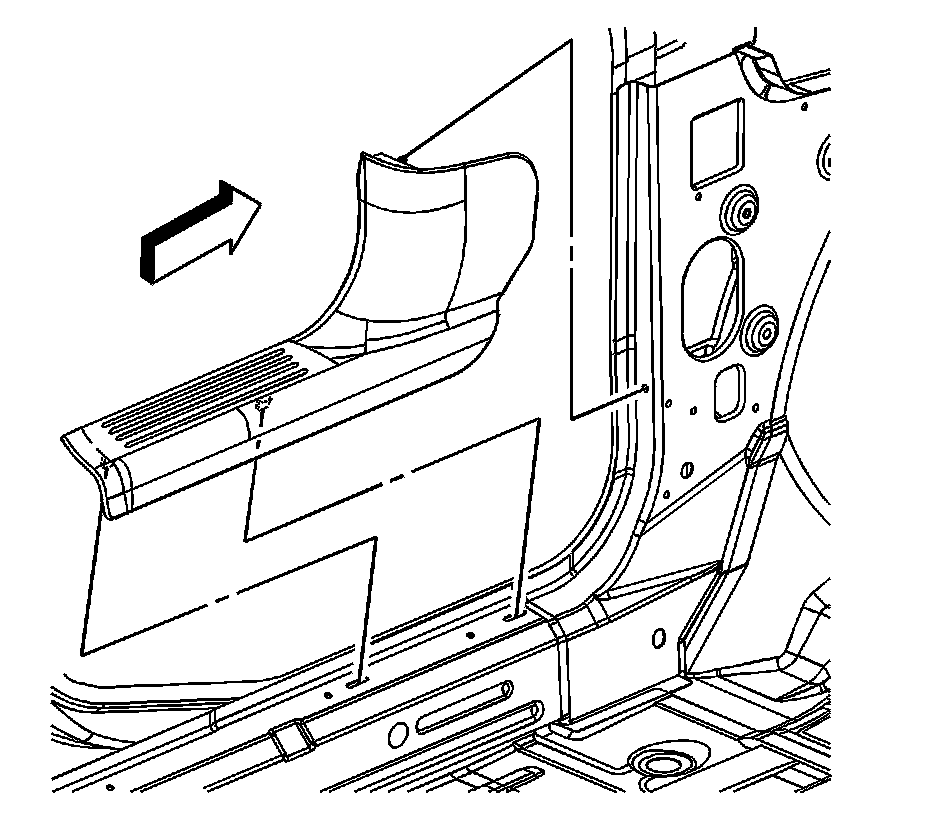

Removal Procedure





1. Open the front door.
2. Remove the carpet retainer by pulling up, starting at the rear of the retainer.



Installation Procedure





1. Install the carpet retainer, starting at the front of the car and working toward the rear.
2. Snap the retainer into place.
3. Close the door.
