Console Replacement



Console Replacement

Removal Procedure

1. Remove the right console trim panel. Refer to Front Floor Console Side Trim Panel Replacement - Right Side .
2. Remove the left console trim panel. Refer to Front Floor Console Side Trim Panel Replacement - Left Side .

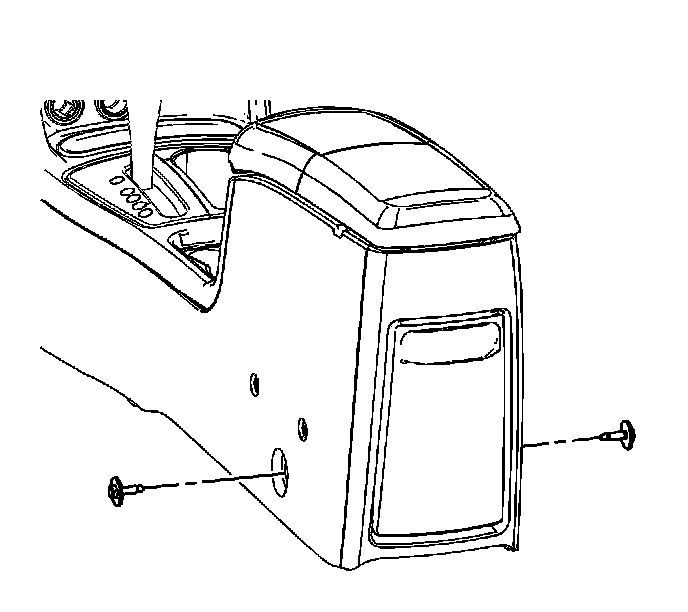

3. Remove the front console screw covers from behind the console.
4. Remove the front console screws.




5. Position the front seats to the full forward position.
6. Remove the rear console bolts.
7. Place the shifter in drive.




8. Remove the pen tray.





Important: Do not let the console contact the shifter handle or bezel.

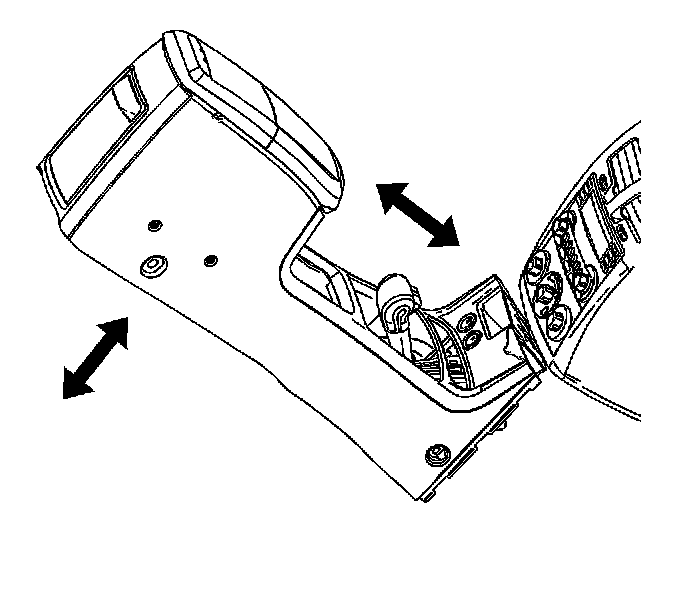

9. Disconnect the electrical connectors and remove the console.



Installation Procedure






Important: Do not let the console contact the shifter handle or bezel.

1. Connect the electrical connectors and install the console.




2. Install the pen tray.





Notice: Refer to Fastener Notice .

3. Install the rear console bolts.

Tighten the bolts to 1 N.m (10 lb in).

4. Install the front console screws.

Tighten the bolts to 1 N.m (10 lb in).





5. Install the front console screw cover.
6. Install the left console trim panel. Refer to Front Floor Console Side Trim Panel Replacement - Left Side .
7. Install the right console trim panel. Refer to Front Floor Console Side Trim Panel Replacement - Right Side .
