Roof Console Replacement



Roof Console Replacement

Removal Procedure

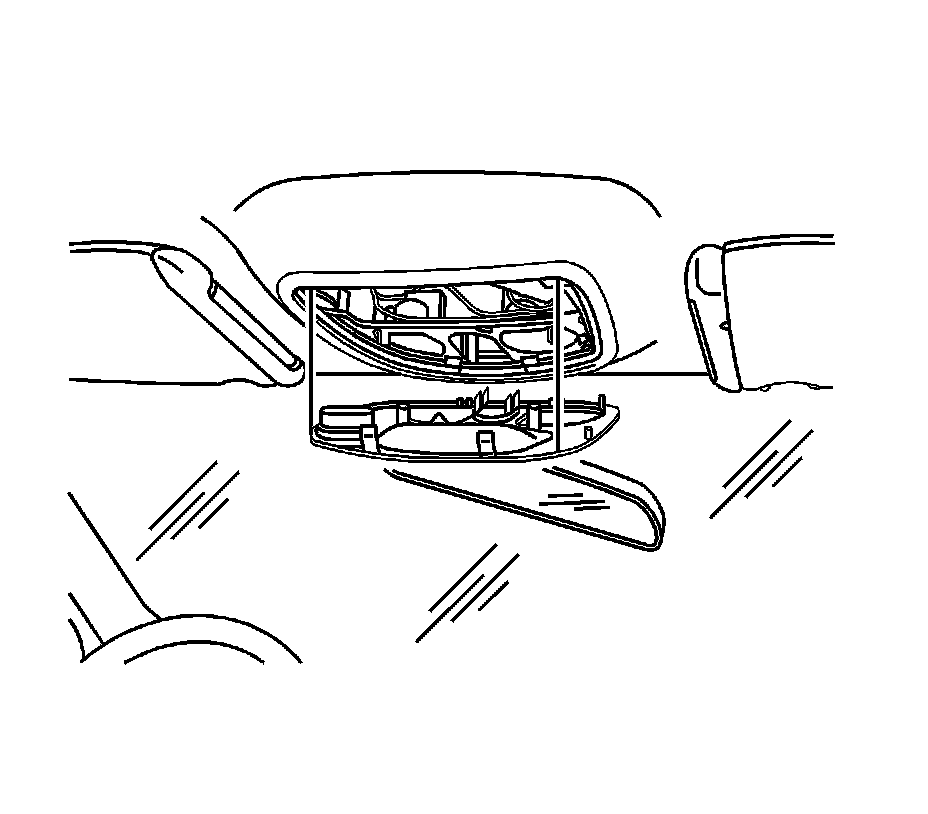

1. Using a flat-bladed tool, remove the overhead console from the console bezel.
2. Disconnect the electrical connectors.
3. Remove the OnStar(R) microphone.
4. Remove the universal garage door opener. Refer to Garage Door Opener Replacement .
5. Remove the sunroof switch, if equipped. Refer to Sunroof Switch Replacement .



Installation Procedure





1. Install the sunroof switch. Refer to Sunroof Switch Replacement .
2. Install the universal garage door opener. Refer to Garage Door Opener Replacement .
3. Install the OnStar(R) microphone.
4. Partially install the overhead console and connect the electrical connectors.
5. Install the overhead console from the console bezel.
