Oil Pan, Engine
Oil Pan BoltInstall a NEW
oil pan gasket.
Position the
oil pan to the engine.
Install the
oil pan bolts (1, 2).
Tighten the bolts (1) to
50 N.m (37 lb ft).
Tighten the bolts (2) to
25 N.m (18 lb ft).

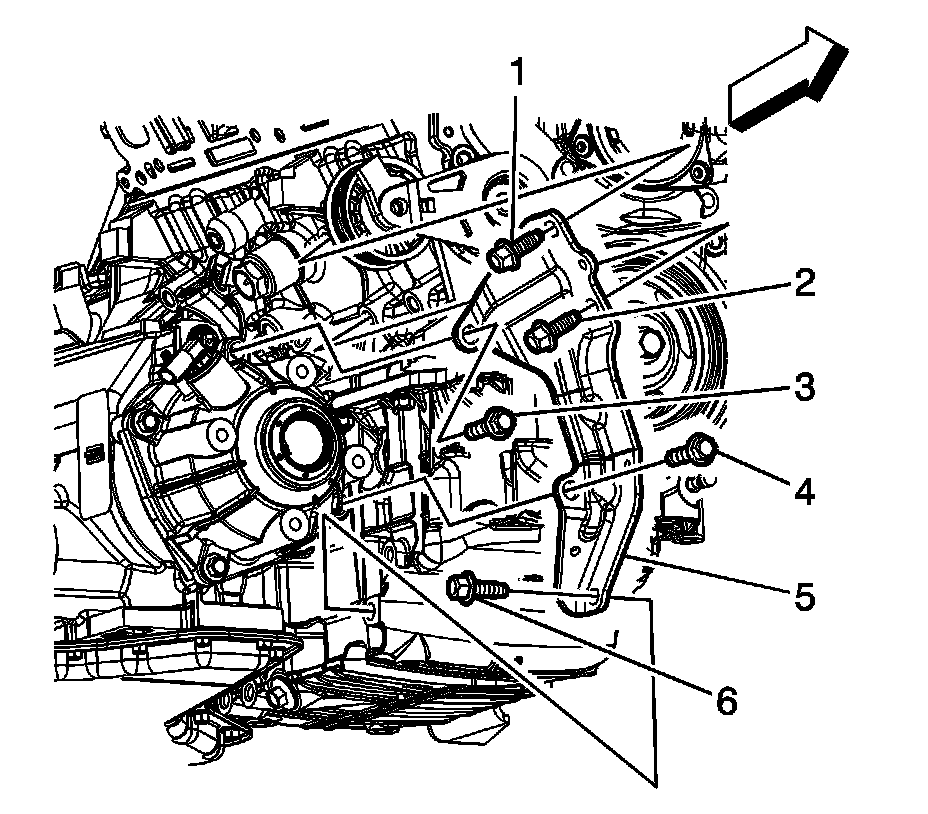

Install the transaxle brace to
oil pan lower bolt (6), if equipped with RPO M15.
Tighten the bolts to
50 N.m (37 lb ft).
