Alternator: Service and Repair

Generator Replacement (LZ9)

Removal Procedure




1. Disconnect the negative battery cable.
2. Remove the drive belt.

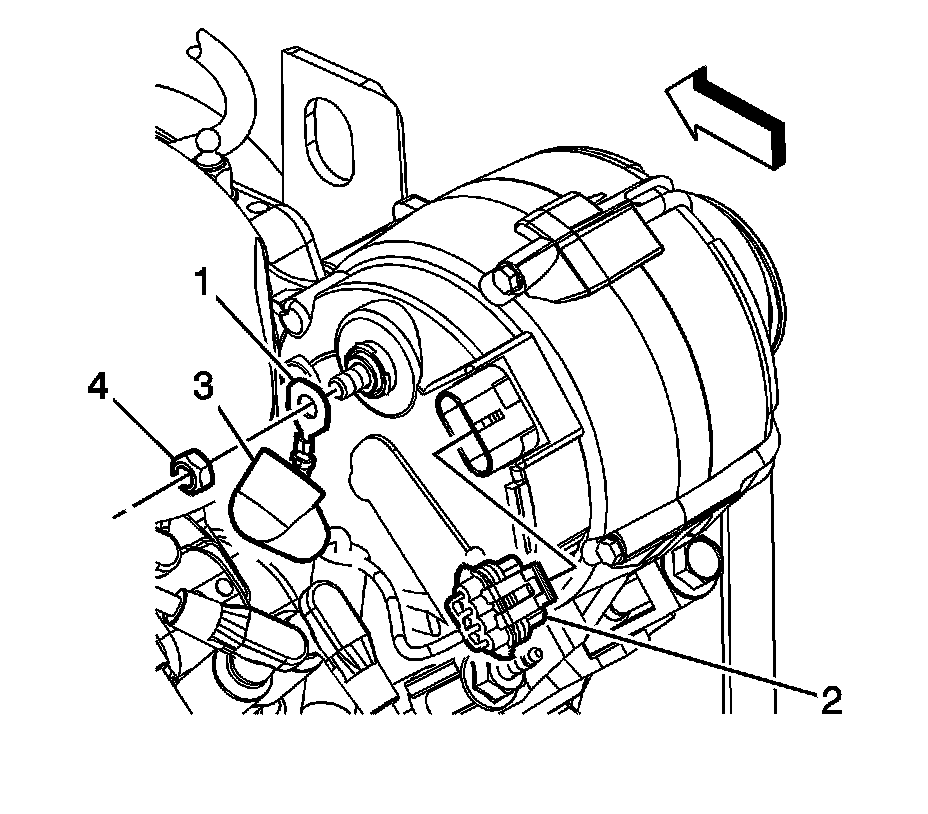

3. Disconnect the engine wiring harness electrical connector (2).
4. Reposition the engine wiring harness terminal boot (3).
5. Remove the engine wiring harness terminal lead to generator nut (4).
6. Remove the engine wiring harness terminal (1) from the generator stud.

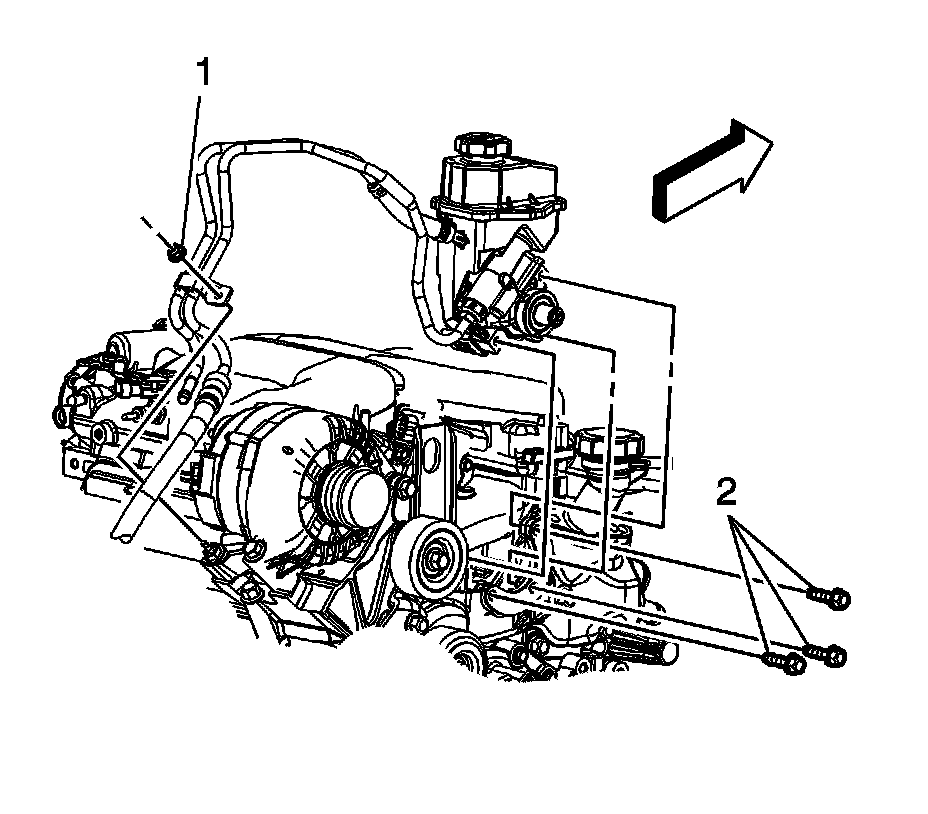

7. Remove the power steering line clip nut (1).
8. Remove the power steering line clip from the generator stud and reposition the lines out of the way.




9. Remove the generator side bolt and stud.




10. Remove the generator through bolt.
11. Remove the generator.

Installation Procedure




1. Position the generator to the coolant crossover.
2. Loosely the generator through bolt.






Notice: Refer to Fastener Notice.

3. Loosely the generator side bolt and stud.

Tighten the bolts/stud to 50 N.m (37 lb ft).




4. Position the power steering lines and install the power steering line clip to the generator stud.
5. Install the power steering line clip nut (1).

Tighten the nut to 5 N.m (44 lb in).




6. Install the engine wiring harness terminal (1) to the generator stud.
7. Install the engine wiring harness terminal lead to generator nut (4).

Tighten the nut to 20 N.m (15 lb ft).

8. Position the engine wiring harness terminal boot (3).
9. Connect the engine wiring harness electrical connector (2).
10. Install the drive belt.
11. Connect the negative battery cable.
