Operation CHARM
: Car repair manuals for everyone.
Home
>>
Chevrolet
>>
2007
>>
Optra (CANADA) L4-2.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Mirrors
Mirrors

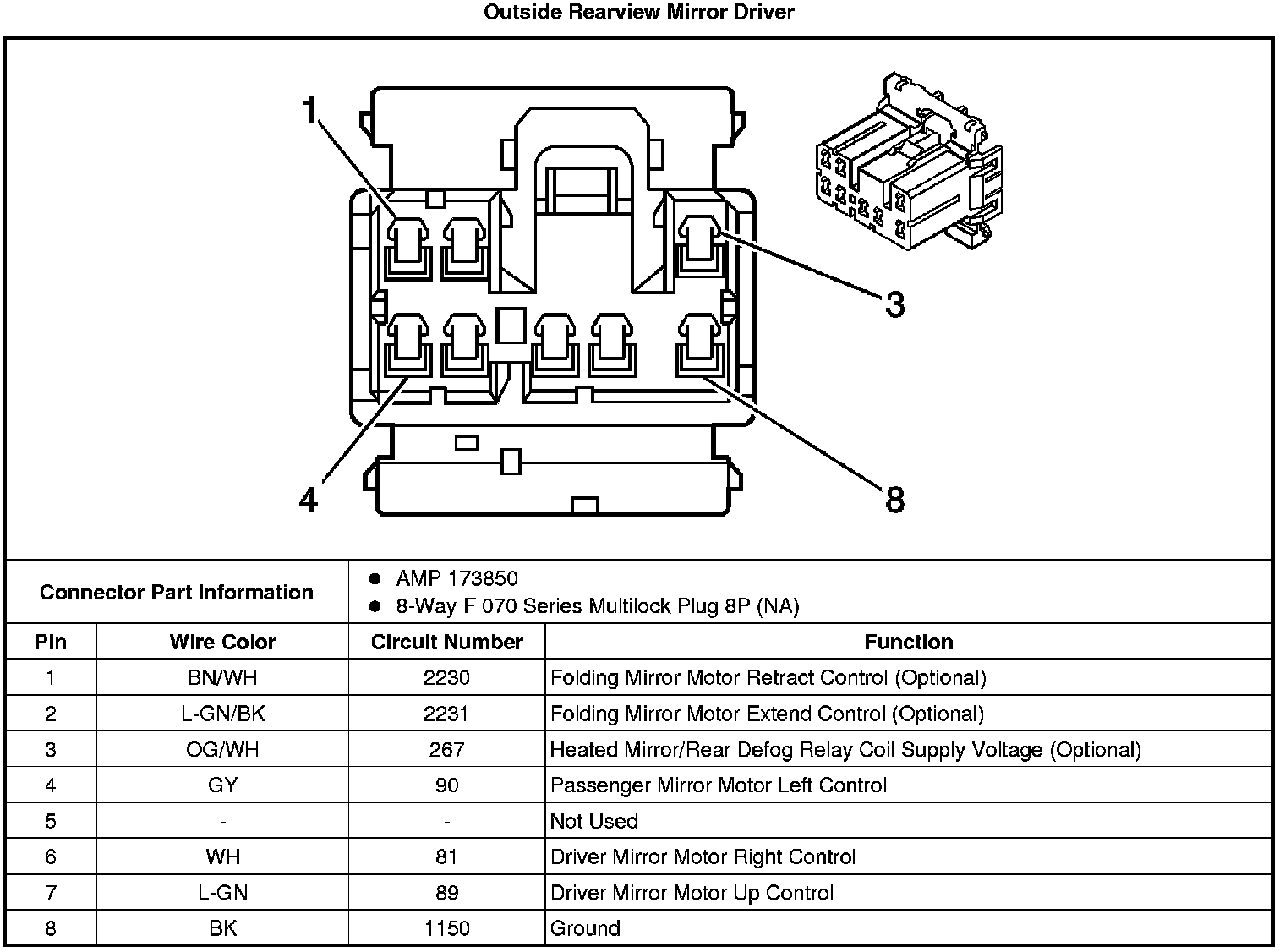

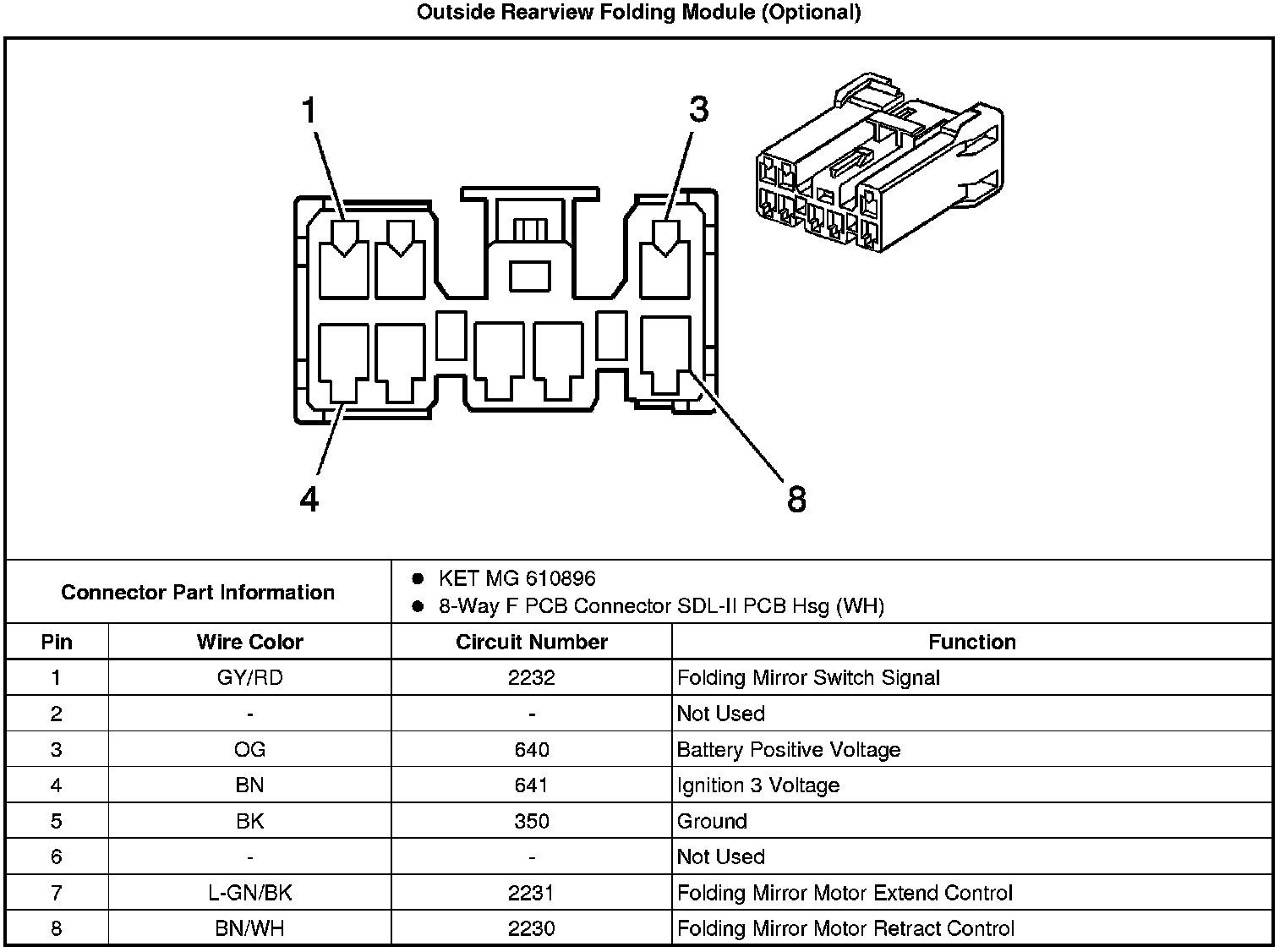

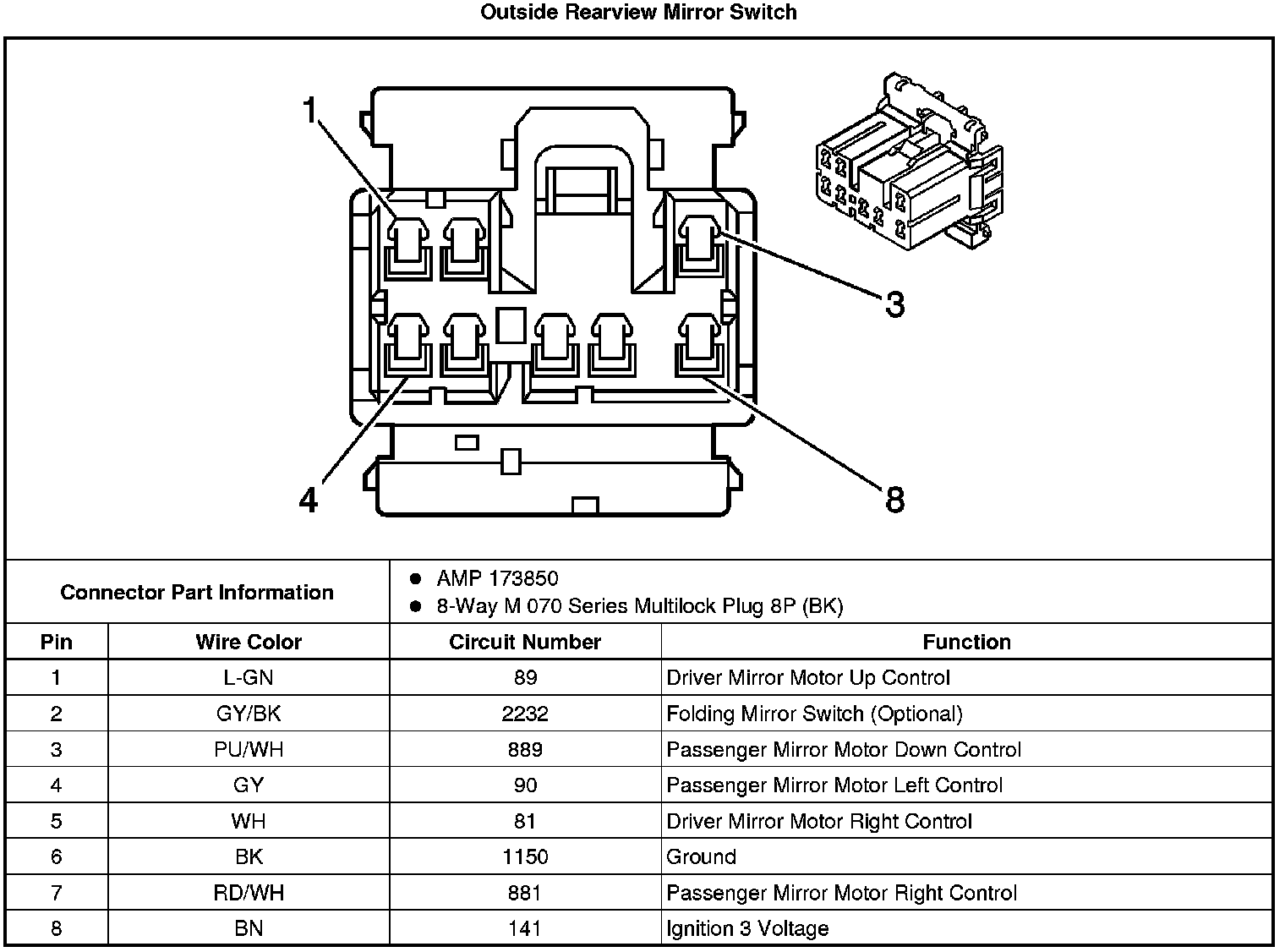

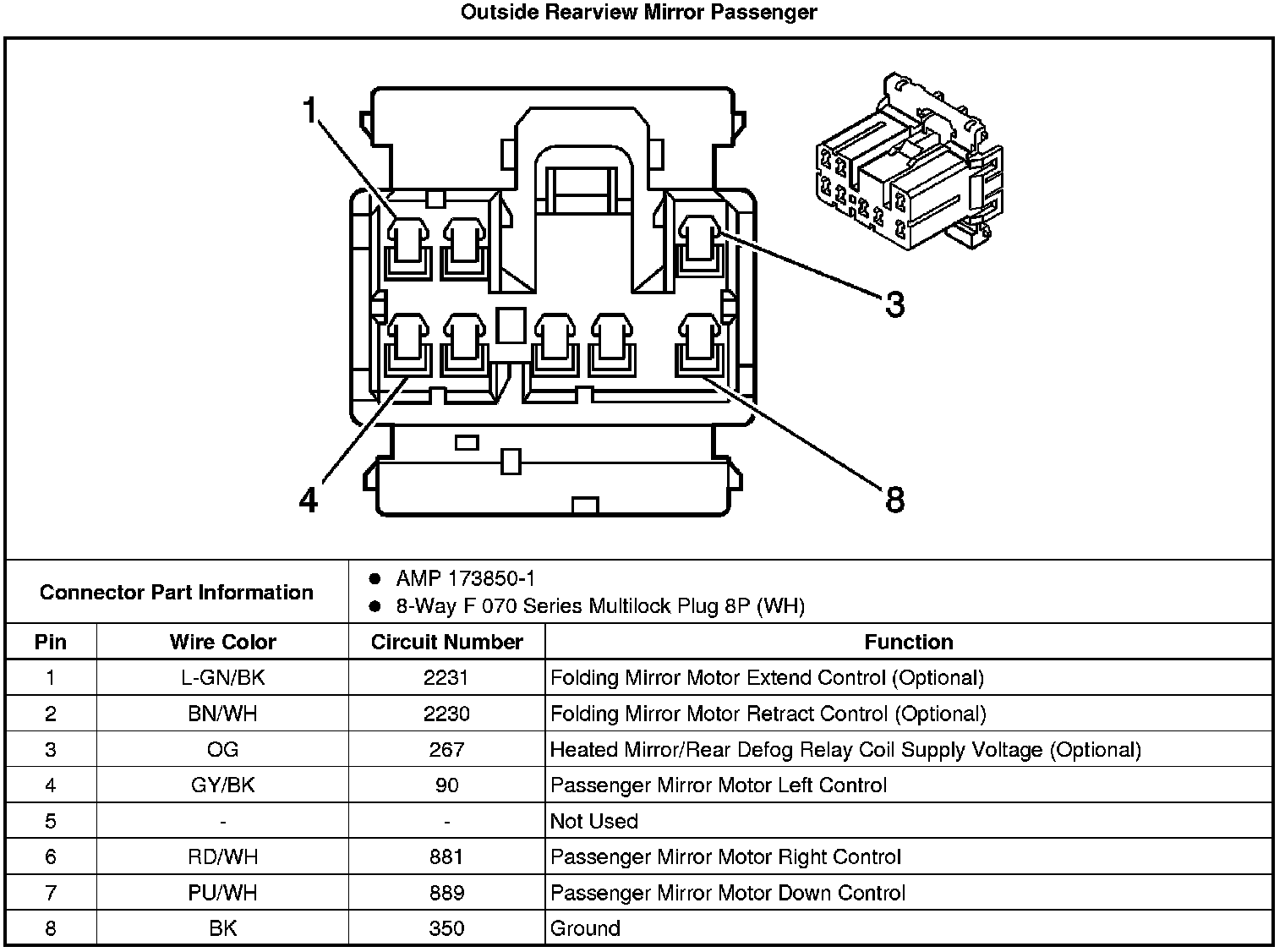

Mirror Connector End Views
