Air Register: Service and Repair

Air Outlet Replacement - Passenger

Removal Procedure




1. Remove the instrument panel storage compartment.

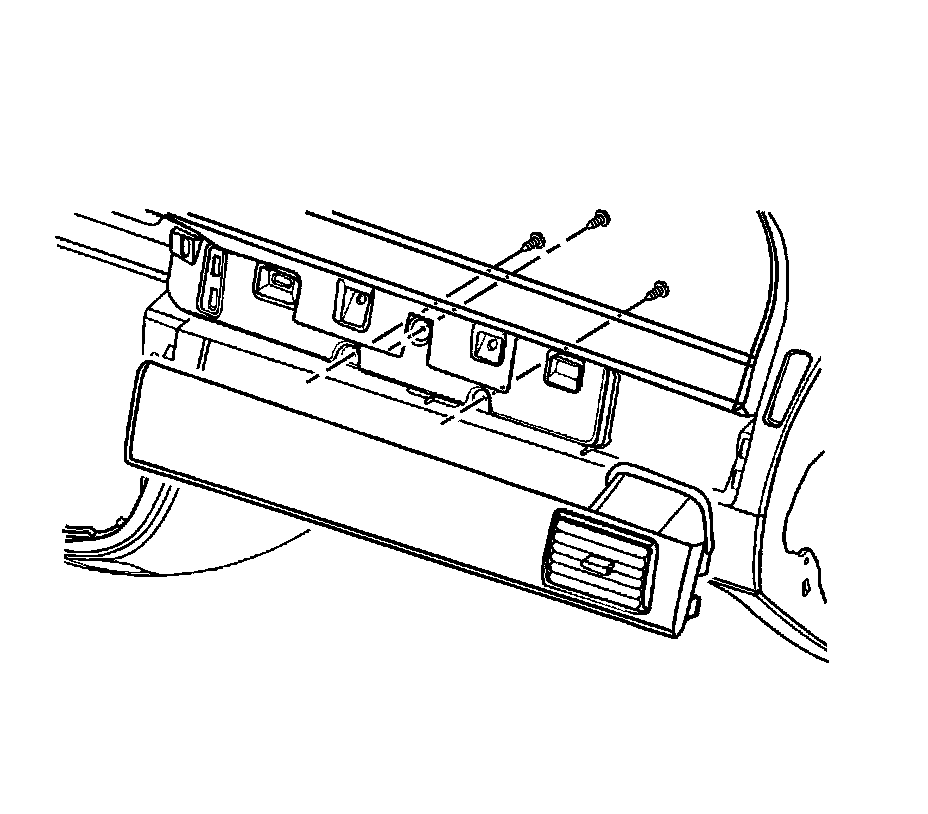

2. Remove the screws and the garnish molding.

Installation Procedure





Notice: Refer to Fastener Notice Fastener Notice.

1. Install the garnish molding with the screws.

Tighten the garnish molding screw to 2 Nm (18 lb in).

2. Install the instrument panel storage compartment.
