Brake Booster Vacuum Sensor

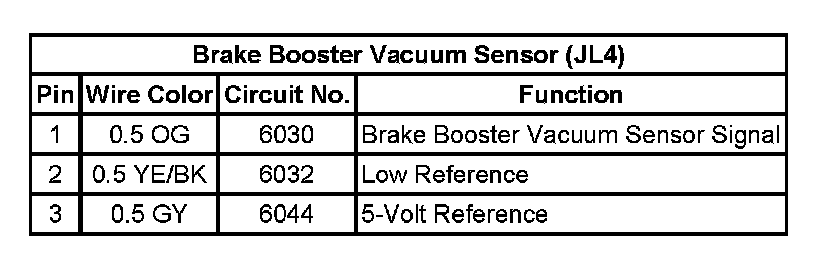

Brake Booster Vacuum Sensor (JL4)







Brake Booster Vacuum Sensor (JL4):
