Temperature Versus Resistance (Transmission Fluid Temperature Sensor)



Temperature Versus Resistance (Transmission Fluid Temperature Sensor)

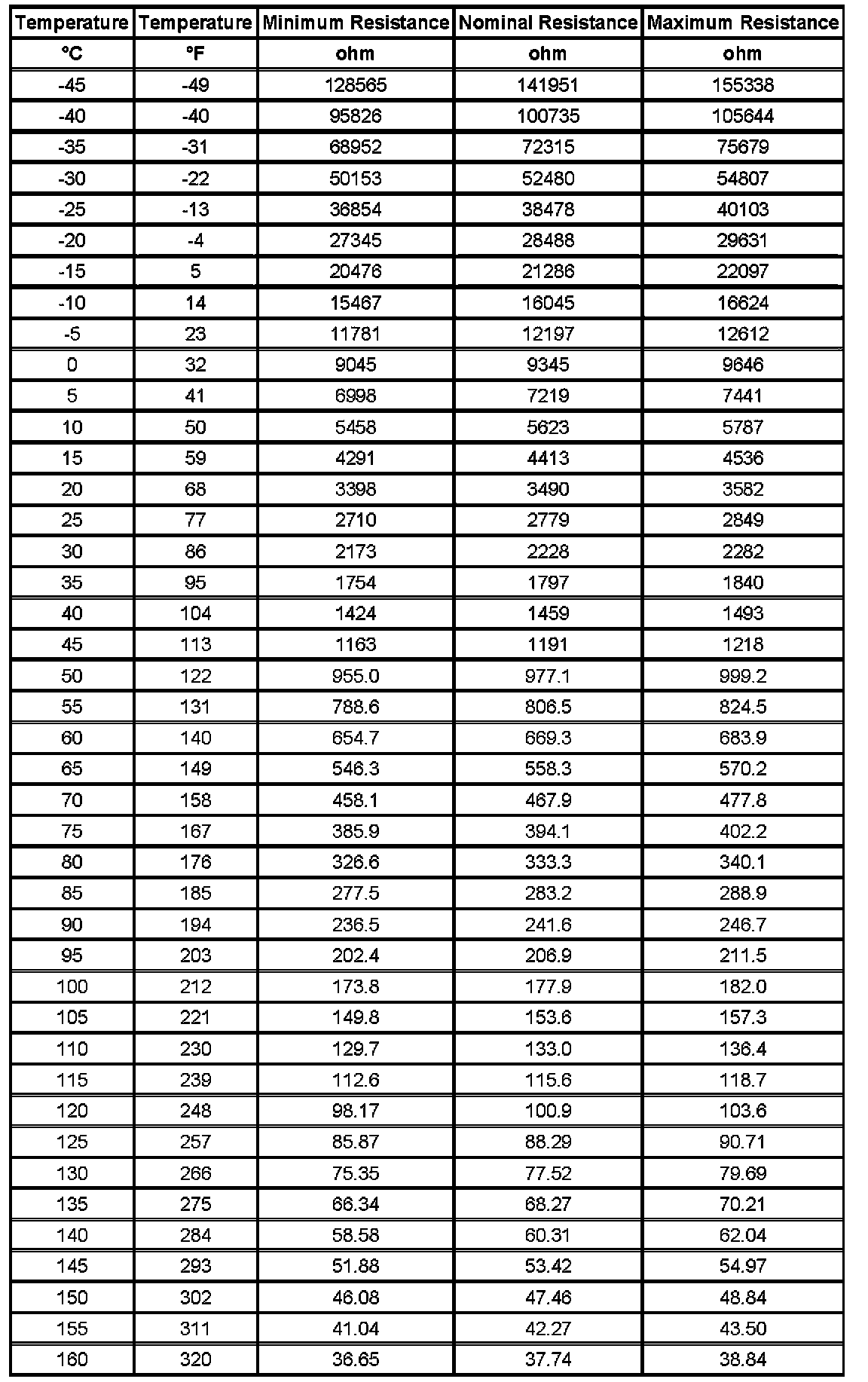

Temperature Versus Resistance (Transmission Fluid Temperature Sensor):
