Body Control Module

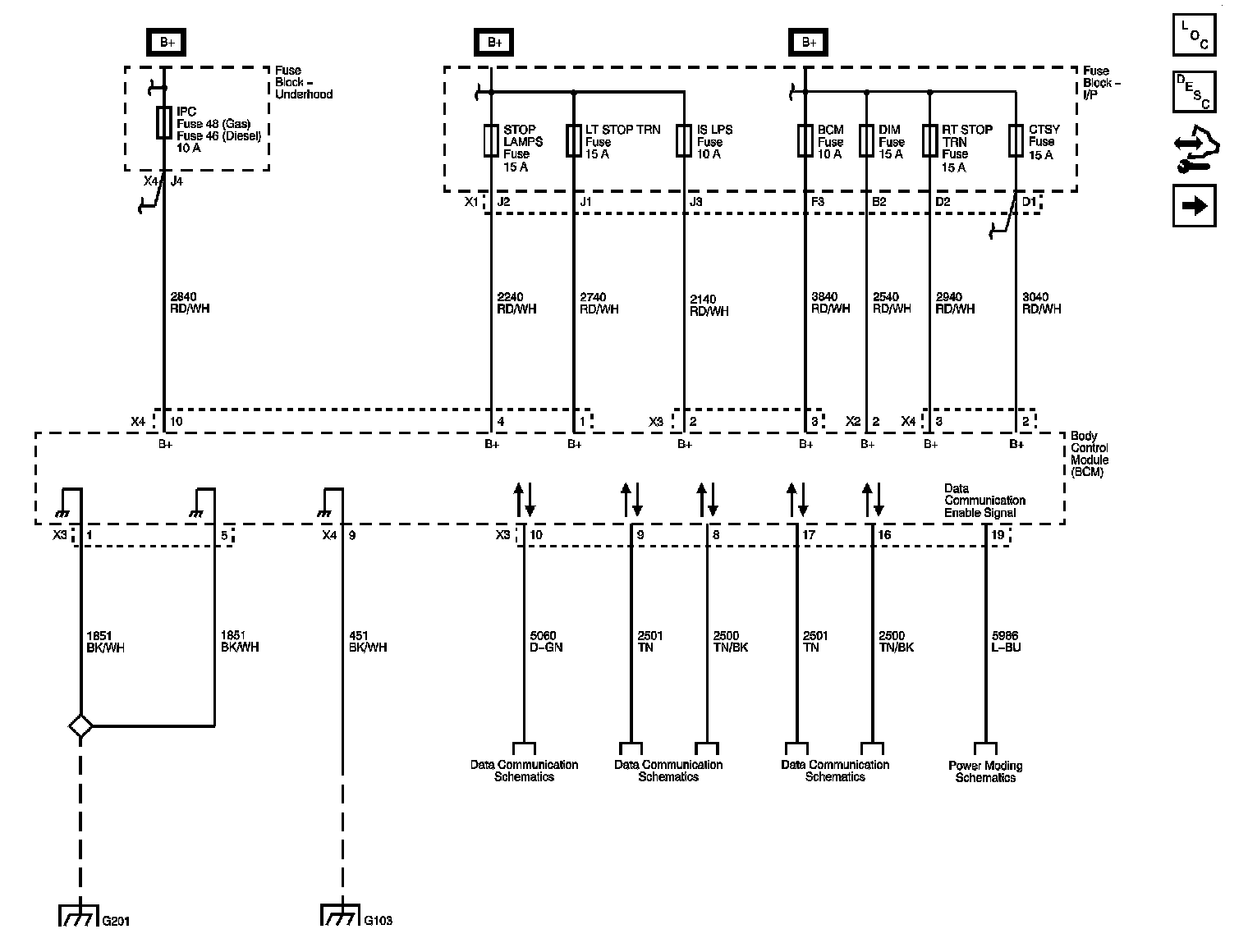

Module Power, Ground and Serial Data

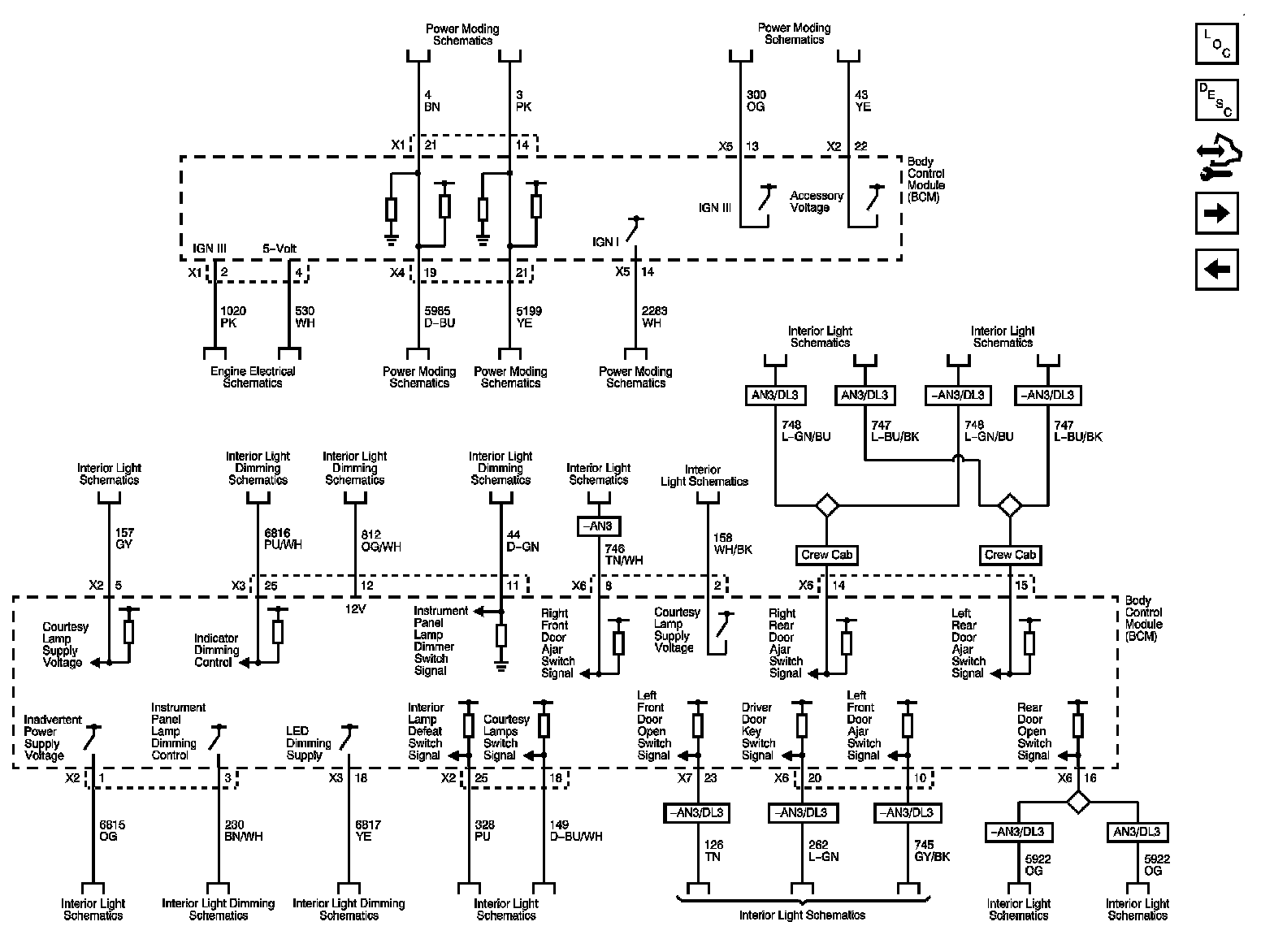

Power Moding and Interior Light References

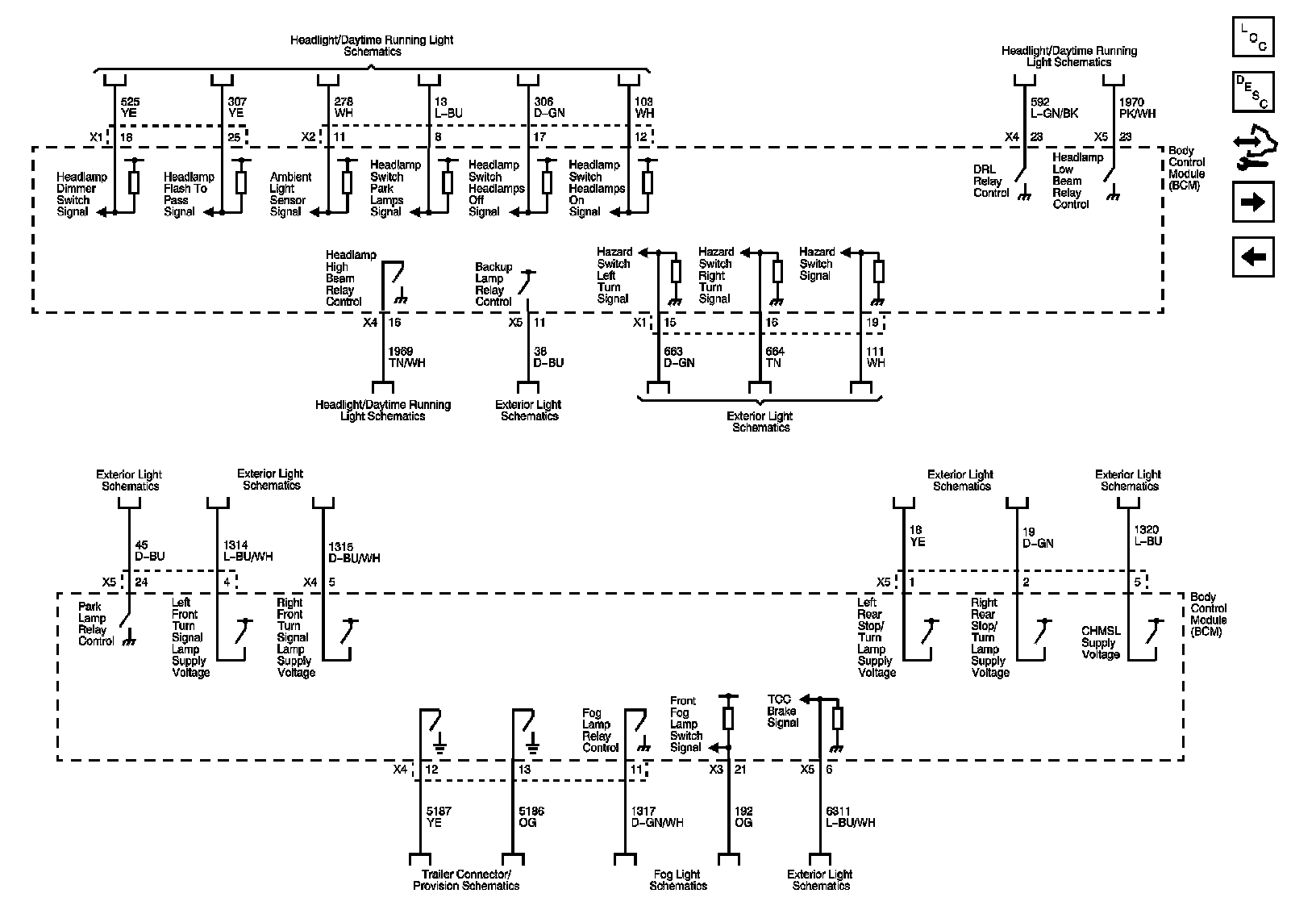

Exterior Light References

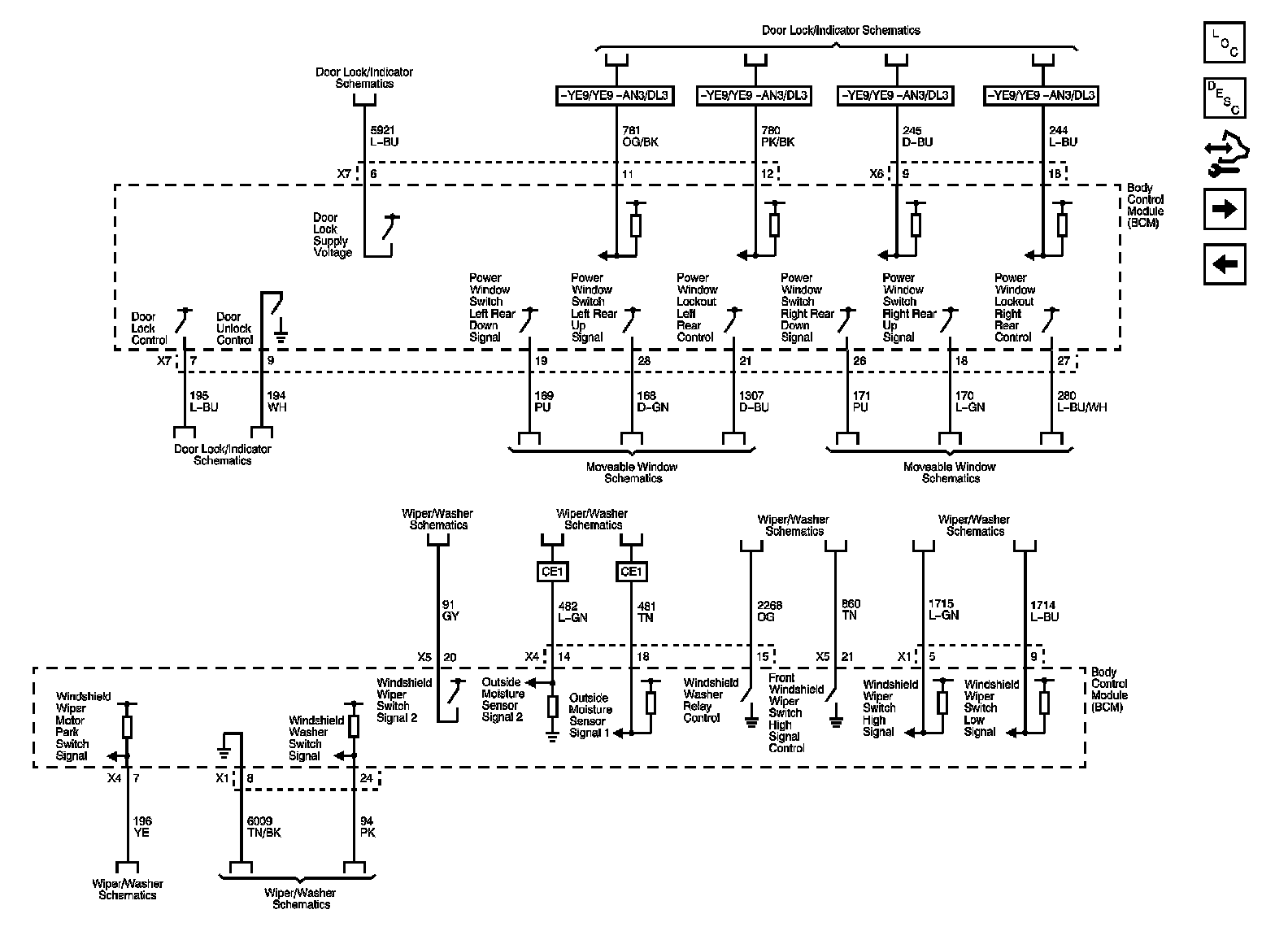

Vehicle Access and Wiper References

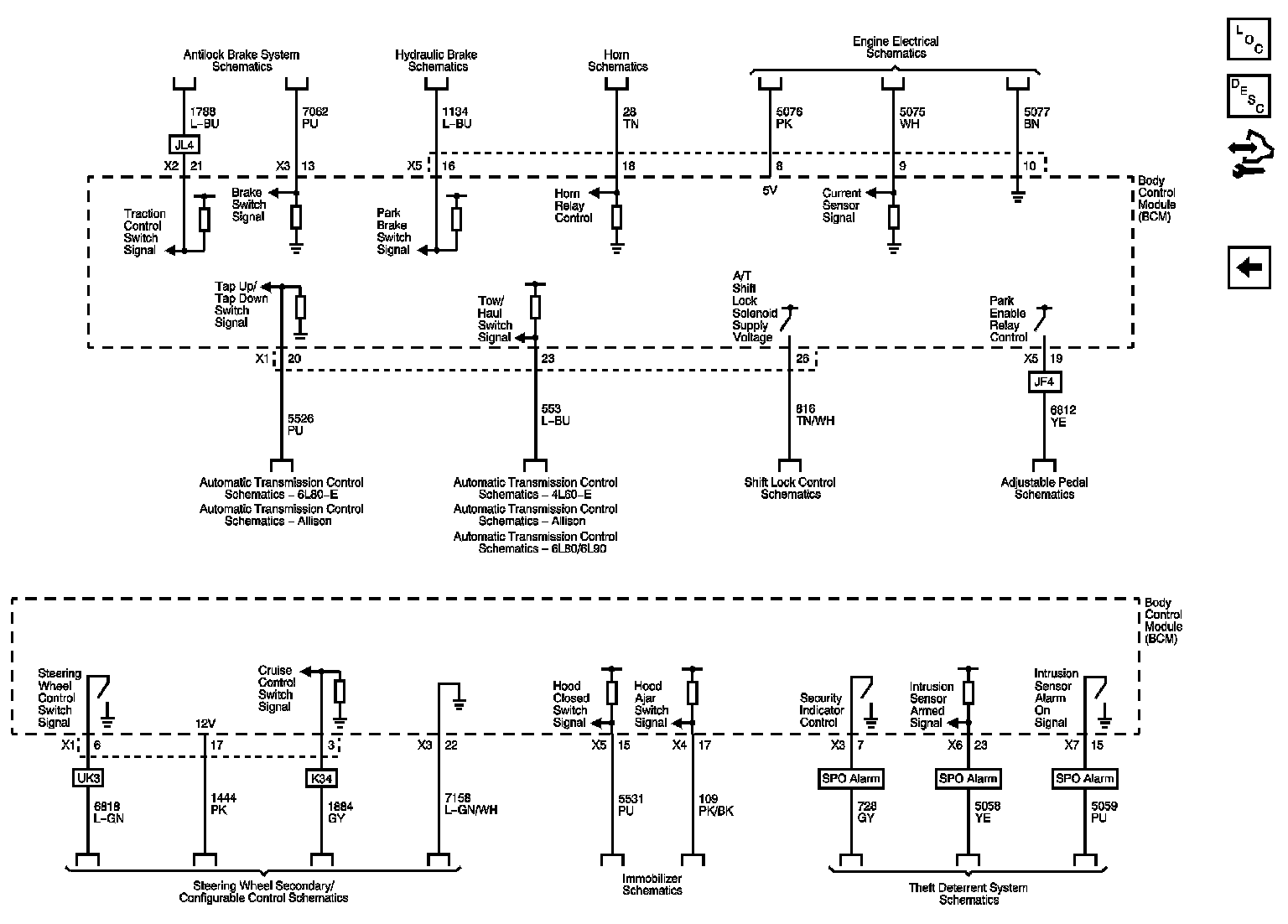

Brake, Horn, Transmission, Theft and Secondary/Configurable References
