Power Seat Motor: Locations

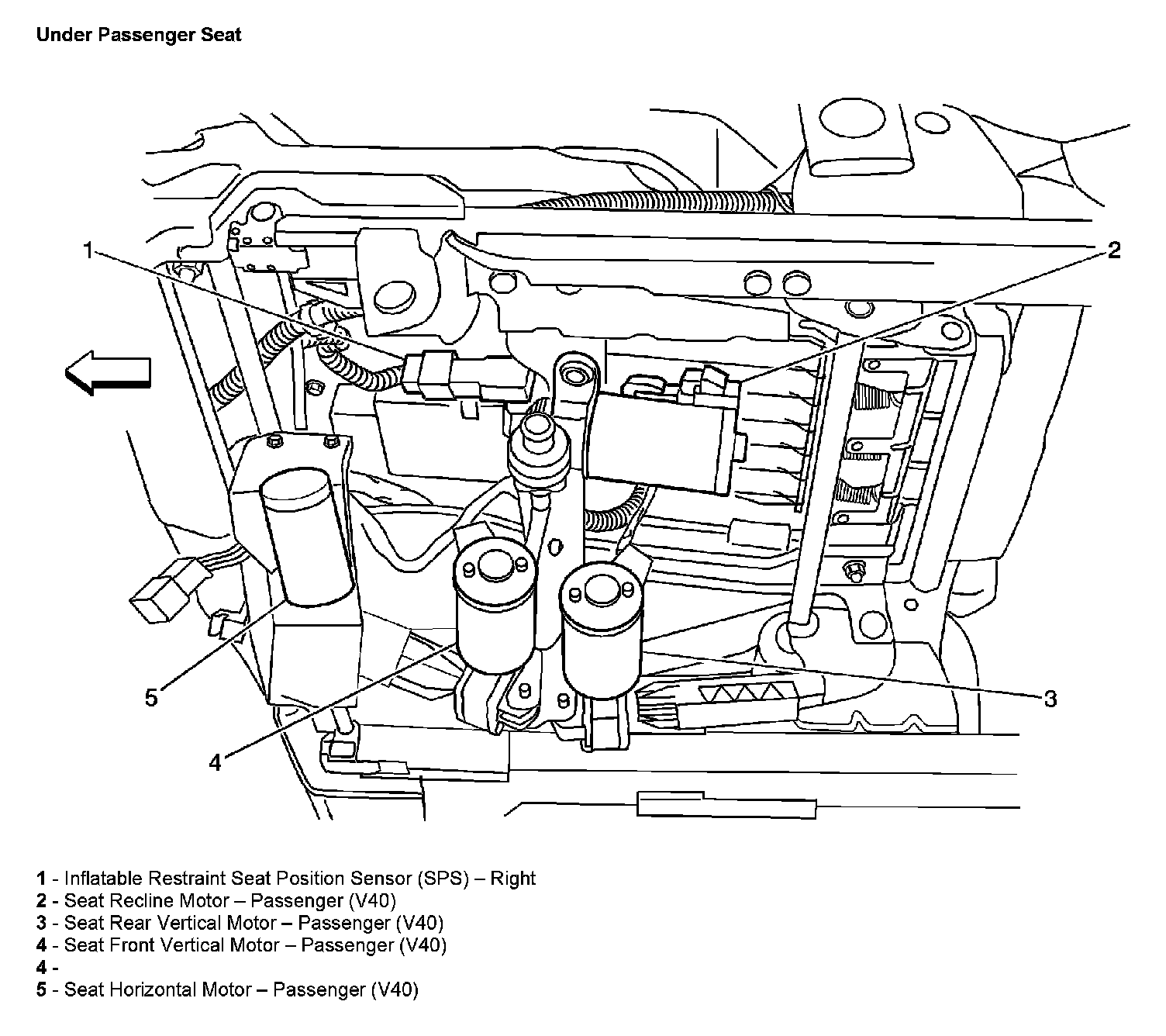

Under Passenger Seat:

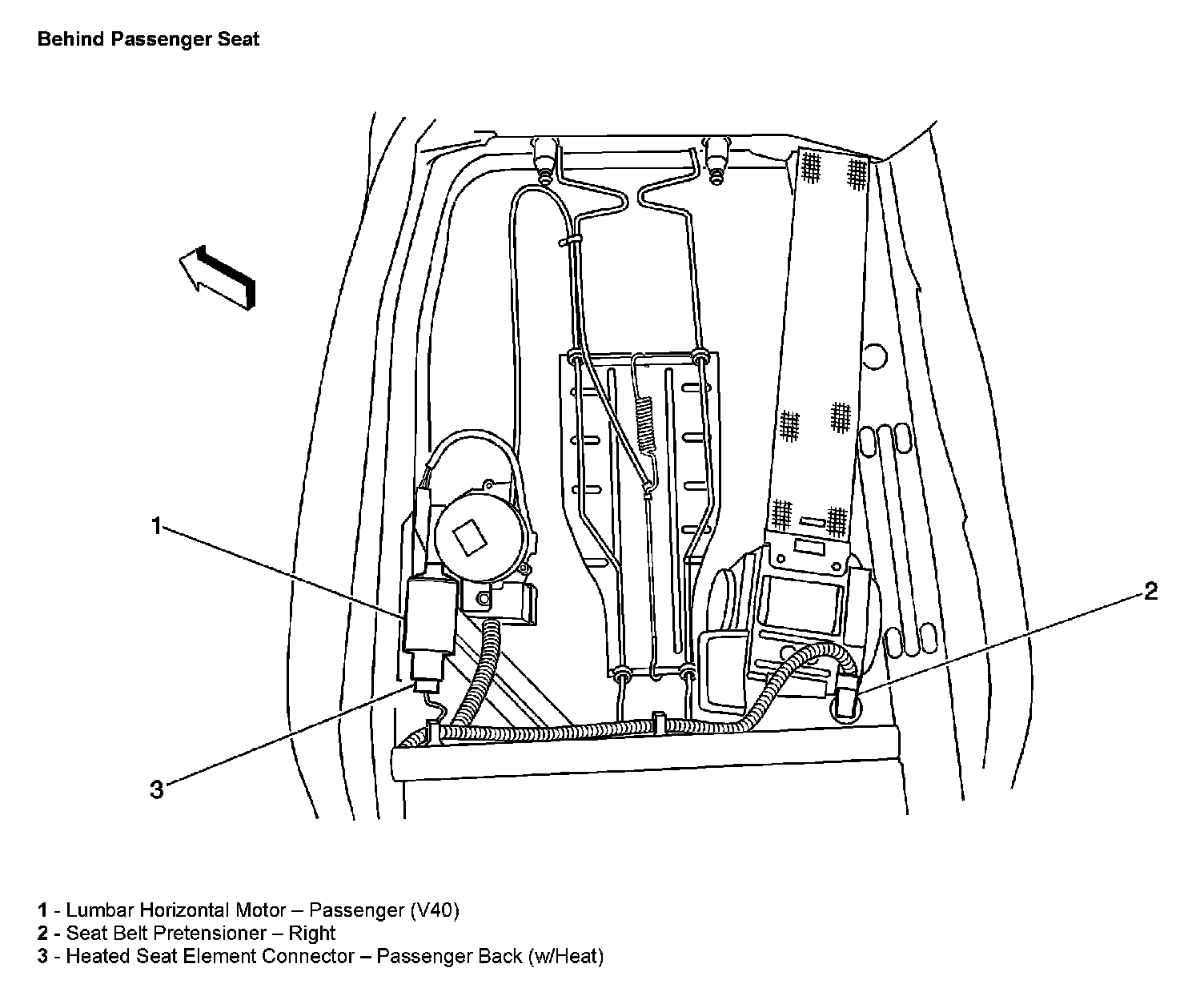

Behind Passenger Seat:

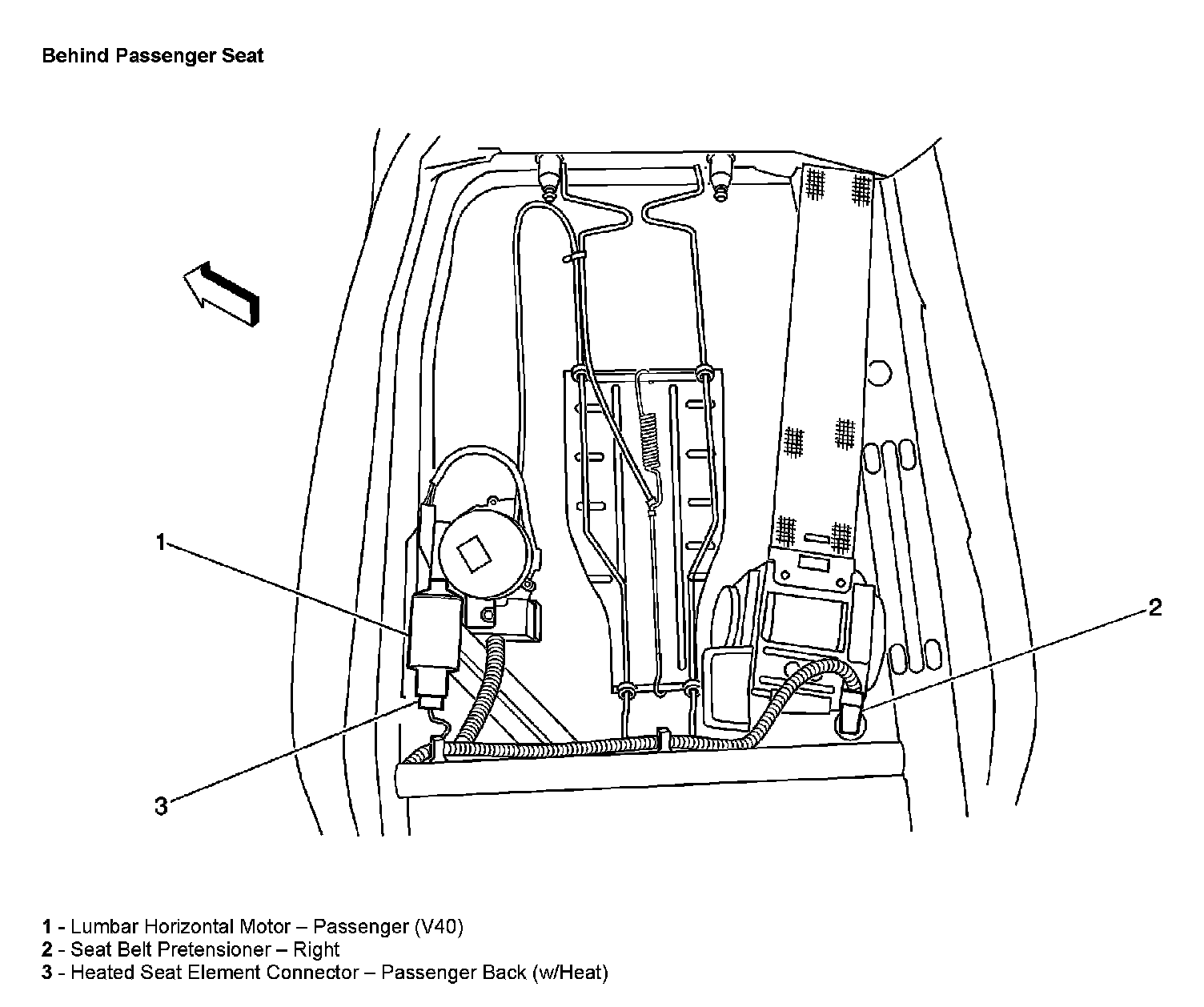

Behind Passenger Seat:





Behind Driver Seat:





Behind Driver Seat:





Under Driver Seat:
