Grille: Service and Repair

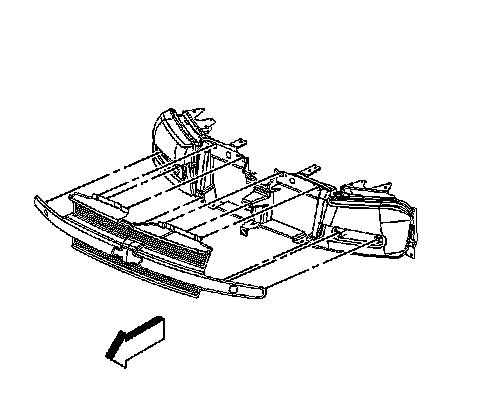

Grille Replacement (TrailBlazer)

Removal Procedure

1. Use a flat-bladed tool in order to release the clips that retain the grille to the headlamp housing panel.
2. Remove the grille from the vehicle.

Installation Procedure

1. Install the grille to the vehicle.
2. Align the retaining clips on the grille with the slots in the headlamp housing panel.
3. Fully install the retaining clips into the headlamp housing panel.
