Skid Plate: Service and Repair


Engine Shield Replacement


Removal Procedure





Notice:Refer to Vehicle Lifting and Jacking Notice in Cautions and Notices.

1.Raise and suitably support the vehicle.

2.Remove the front wheel. Refer to Tire and Wheel Removal and Installation in Tires and Wheels.

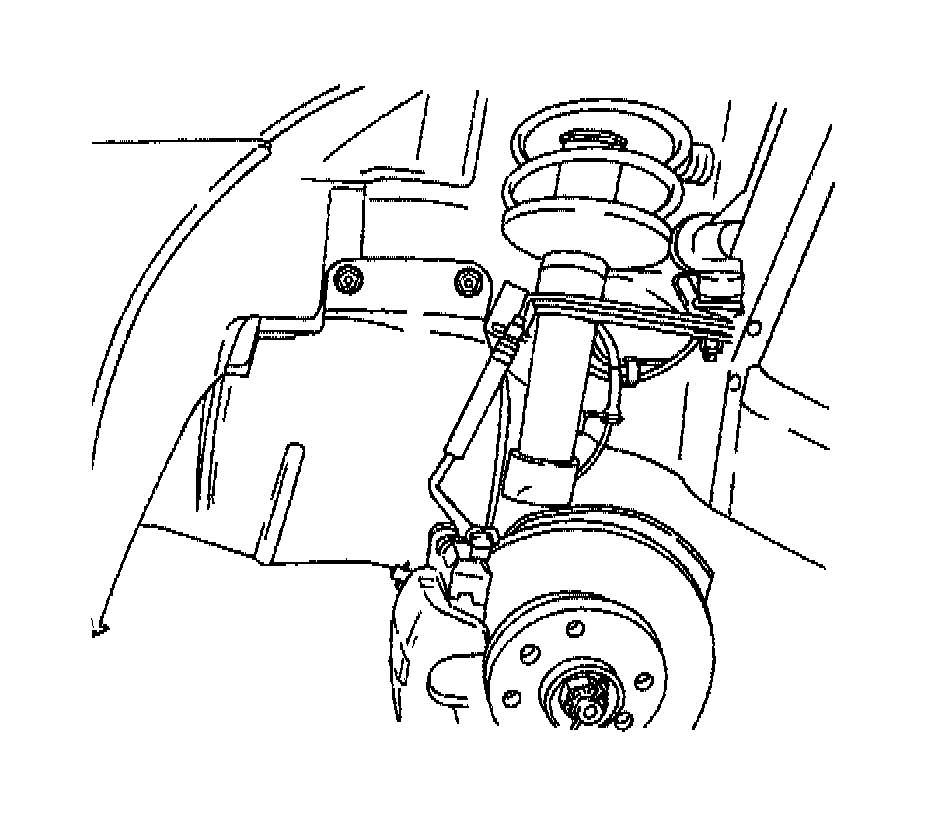

3.Remove the nuts, the bolts, and the engine under cover.

Installation Procedure





Notice:Refer to Fastener Notice in Cautions and Notices.

1.Install the engine under cover with the bolts and nuts.

TightenTighten the engine under cover nuts and bolts to 3.5 N �m (31 lb in).

2.Install the front wheel. Refer to Tire and Wheel Removal and Installation in Tires and Wheels.

3.Lower the vehicle.
