Front Door Weatherstrip: Service and Repair

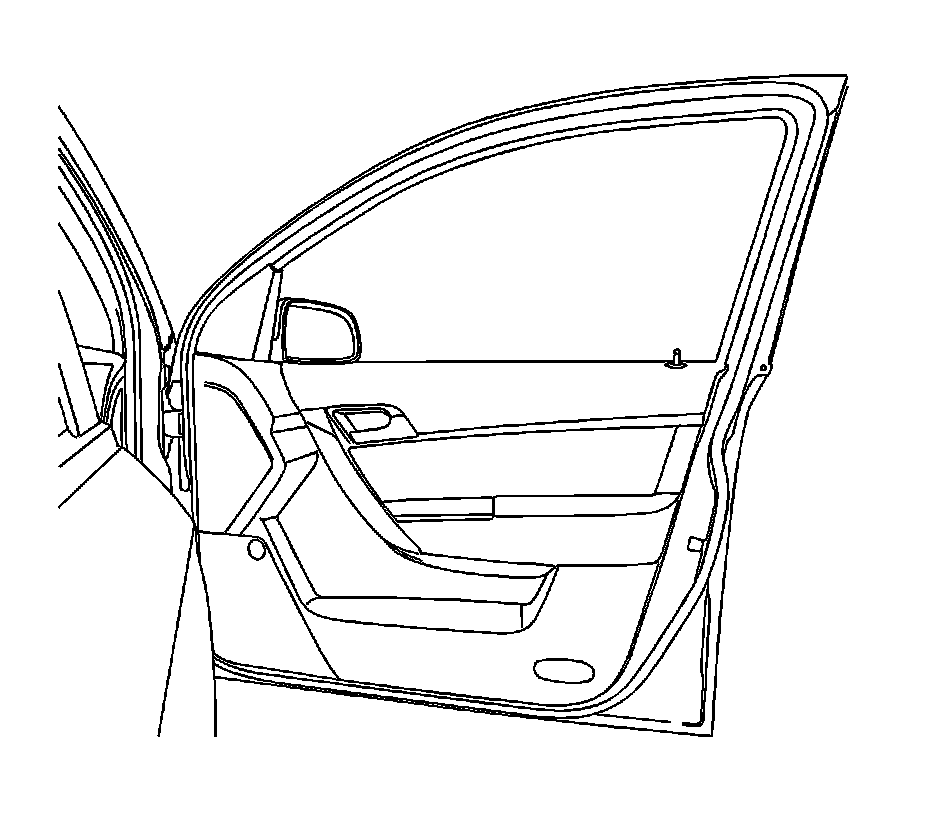

Door Weatherstrip ReplacementRemoval Procedure 1.
Remove the door hold open link-to-body bolt.
2.
Remove the door
weatherstrip.
Installation Procedure 1.
Install the door
weatherstrip.
Notice: Refer to Fastener Notice (
Fastener Notice).
2.
Install the door hold open link to the body with the bolt.
Tighten the door hold open link-to-body bolt to 35 N.m (26 lb ft).
