HVAC - Automatic

HVAC Component Views

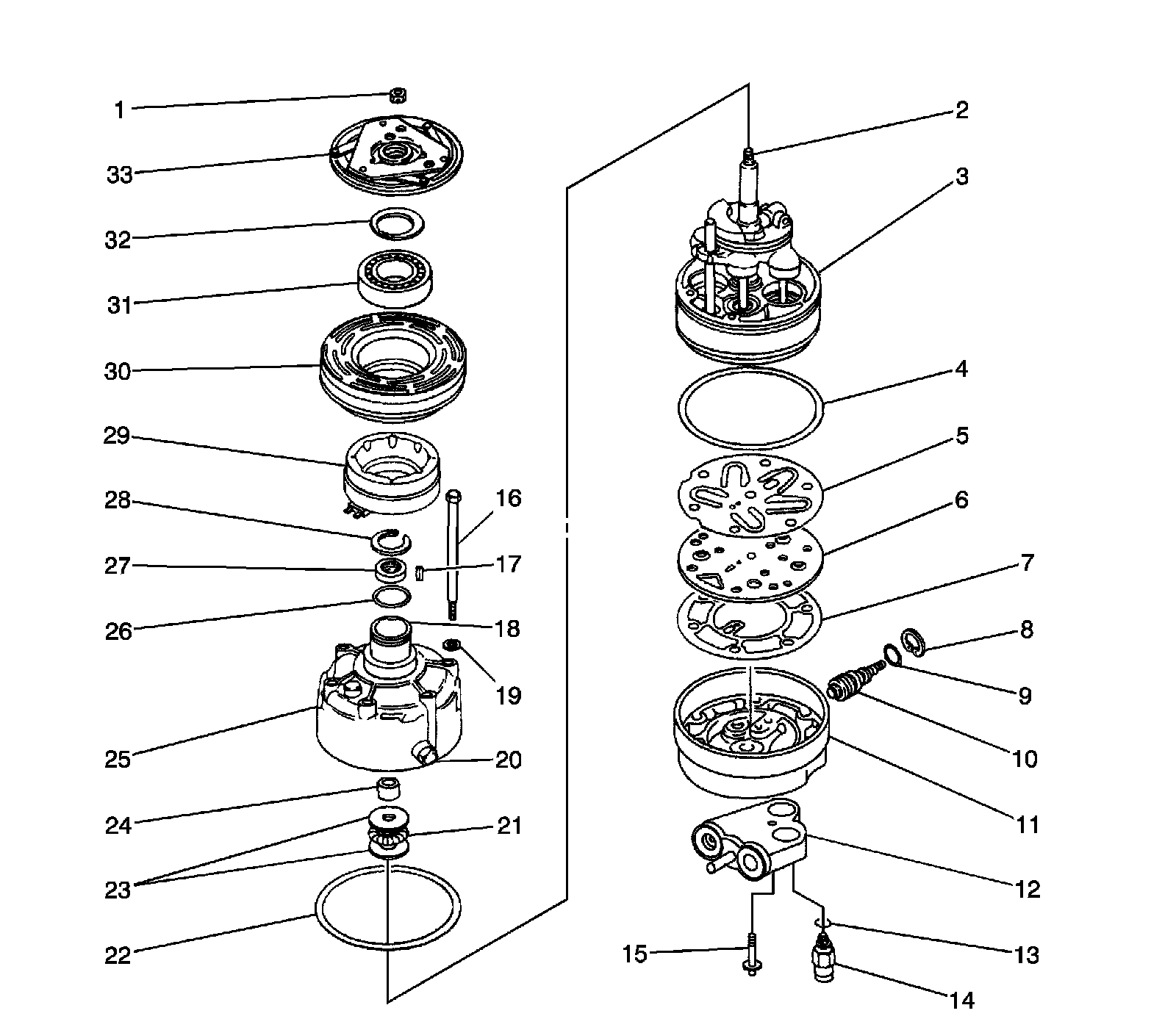

V5 Compressor Assembly




1 - Shaft Nut
2 - Compressor Shaft
3 - Shaft and Guide Pin Assembly Cylinder
4 - Rear Head O-Ring
5 - Suction Reed
6 - Valve Plate
7 - Rear Head Gasket
8 - Retaining Ring
9 - Control Valve O-Ring
10 - Compressor Control Valve
11 - Rear Head Compressor
12 - Adaptor Compressor
13 - Pressure Relief Valve O-Ring
14 - Pressure Relief Valve
15 - Adaptor Bolt
16 - Through-Bolt
17 - Clutch Hub Key
18 - Clutch and Hub Keyway
19 - Through-Gasket
20 - Oil Drain Plug
21 - Bearing
22 - Compressor Housing-to-Cylinder O-Ring
23 - Race
24 - Thrust Washer
25 - Compressor Housing
26 - Shaft Seal O-Ring
27 - Shaft Lip Seal
28 - Seal Retaining Ring
29 - Clutch Coil
30 - Rotor Pulley
31 - Pulley Bearing
32 - Pulley Bearing-to-Head Retaining Ring
33 - Drive Plate Clutch
