HVAC - Automatic



Heater and Air Conditioning Control Replacement

Removal Procedure




Caution: Refer to Battery Disconnect Caution (Battery Disconnect Caution).
1. Disconnect the negative battery cable.
2. Remove the audio system trim molding.
3. Remove the lower HVAC control assembly trim molding.

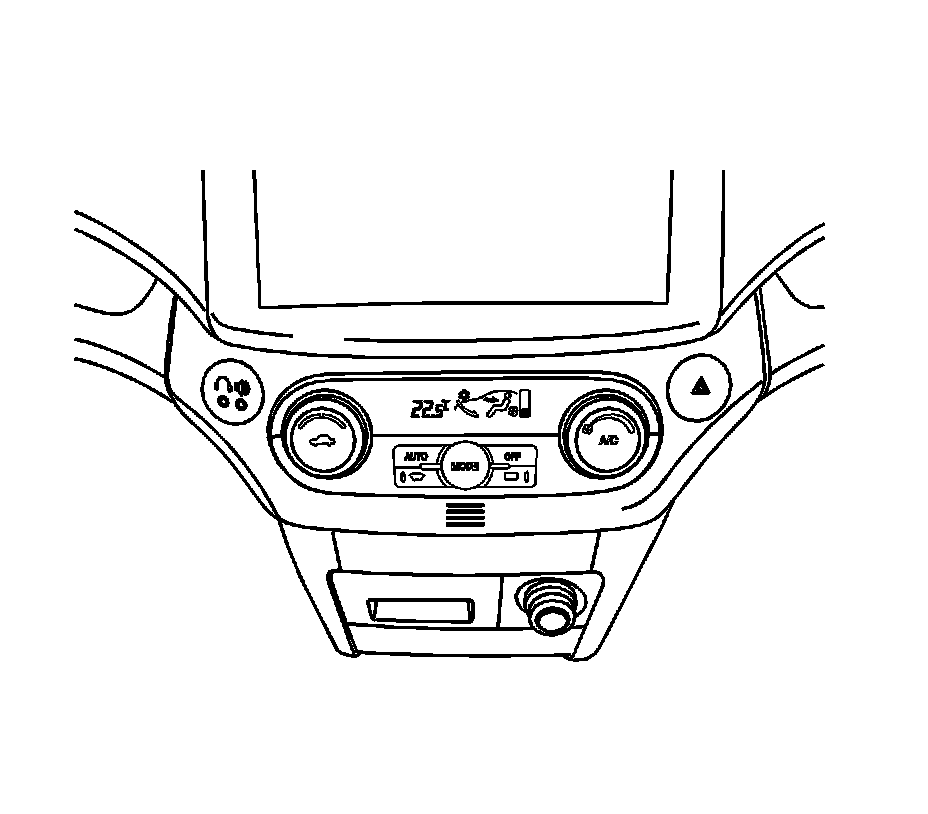

4. Remove the HVAC control assembly screws.
5. Disconnect the electrical connectors.
6. Remove the HVAC control assembly.


Installation Procedure




1. Connect the electrical connectors.

Notice: Refer to Fastener Notice (Fastener Notice).

2. Position the HVAC control assembly on the center molding and install the retaining screws.

Tighten the control assembly retaining screws to 2 N.m (18 lb in).

3. Install the audio trim panel.
4. Connect the negative battery cable.
