Refrigerant Temperature Sensor: Service and Repair



Air Conditioning Refrigerant Temperature Sensor Replacement

Removal Procedure




Caution: Refer to Battery Disconnect Caution (Battery Disconnect Caution).
1. Disconnect the negative battery.

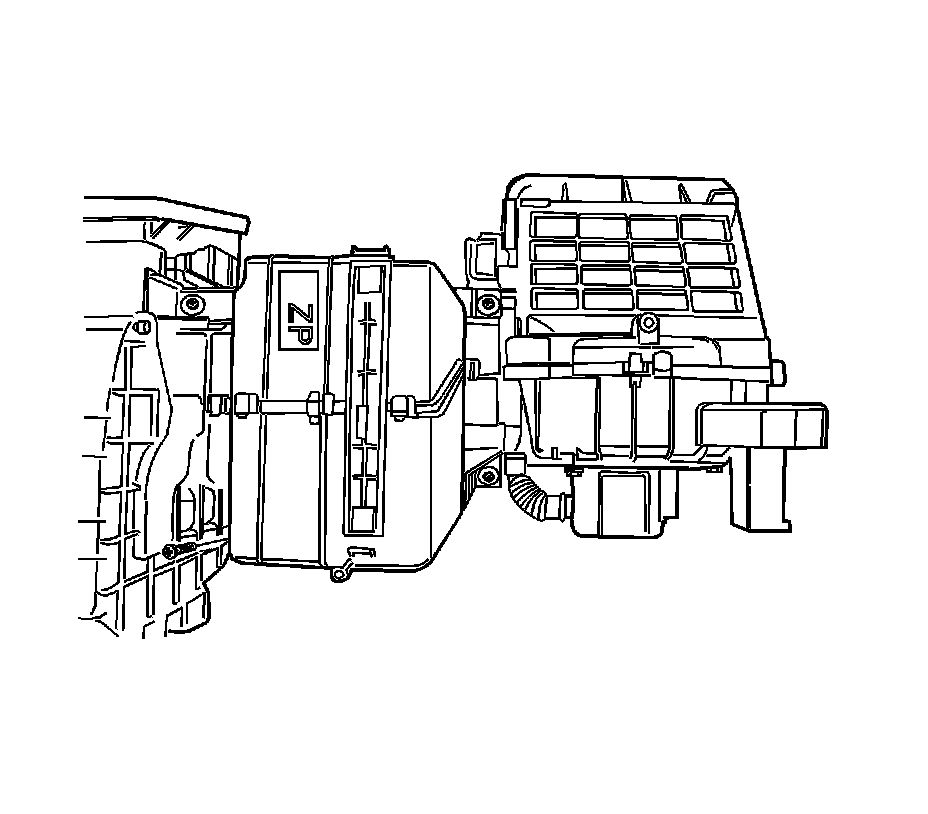

2. Remove the evaporator core. Refer to Air Conditioning Evaporator Core Replacement (Service and Repair).




3. Remove the intake sensor with the connector.


Installation Procedure

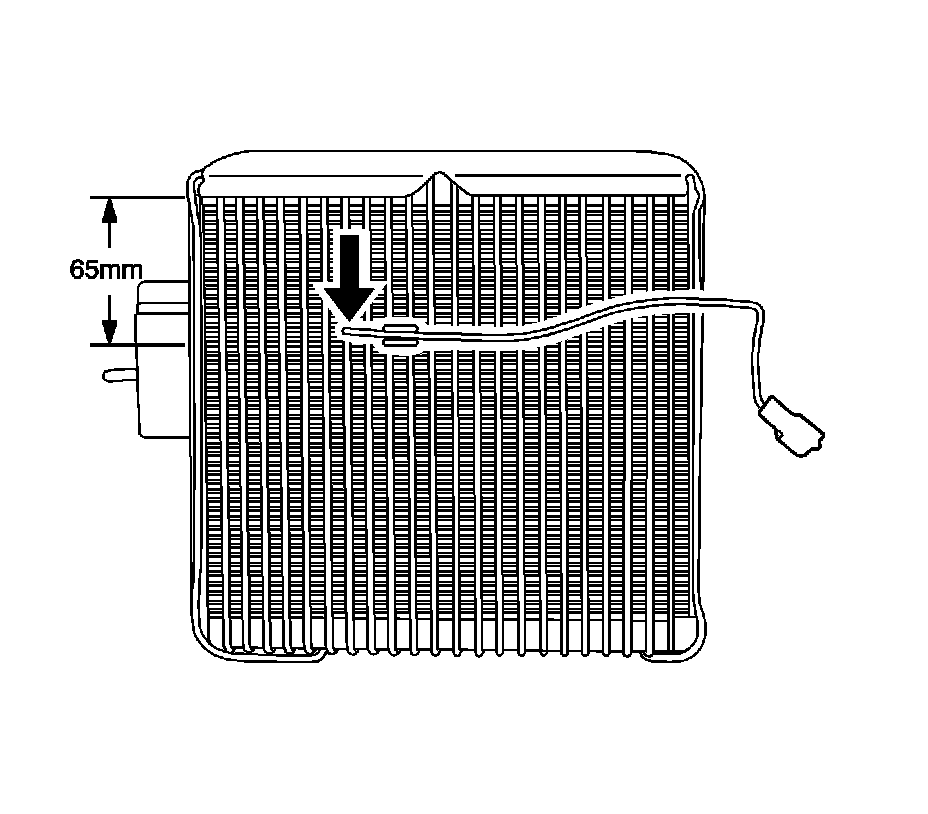

Important: To achieve peak air conditioning performance the intake sensor should be located at column 8 and a height of 65mm.


1. Install the intake sensor with the connector.




2. Install the evaporator core. Refer to Air Conditioning Evaporator Core Replacement (Service and Repair).
3. Connect the negative battery.
