License Plate Lamp: Service and Repair

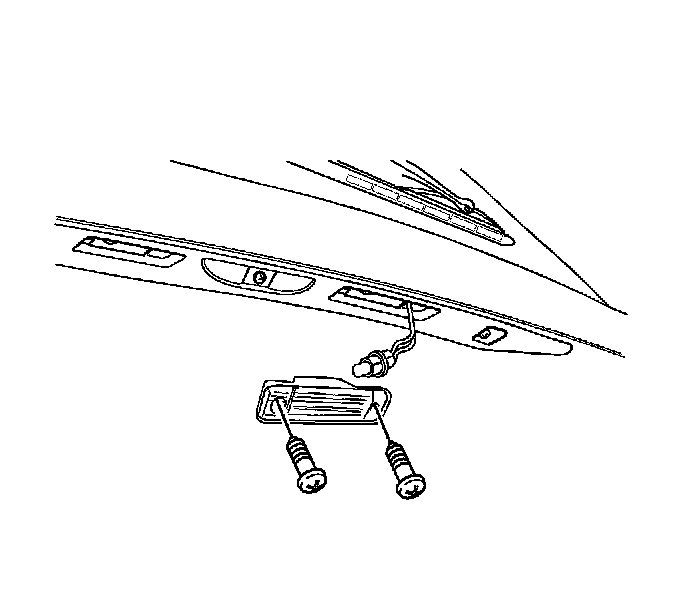

Rear License Lamp Replacement (Typical)

Removal Procedure

1. Remove the screws.
2. Disconnect the electrical connector.
3. Remove the lamp assembly.
4. Remove the bulb.

Installation Procedure

1. Install a new bulb.
2. Connect the electrical connector.

Notice: Refer to Fastener Notice (Fastener Notice).

3. Install the lamp assembly with the screws.

Tighten the license plate lamp screws to 1.5 N.m (13 lb in).
