Drive Belt: Service and Repair

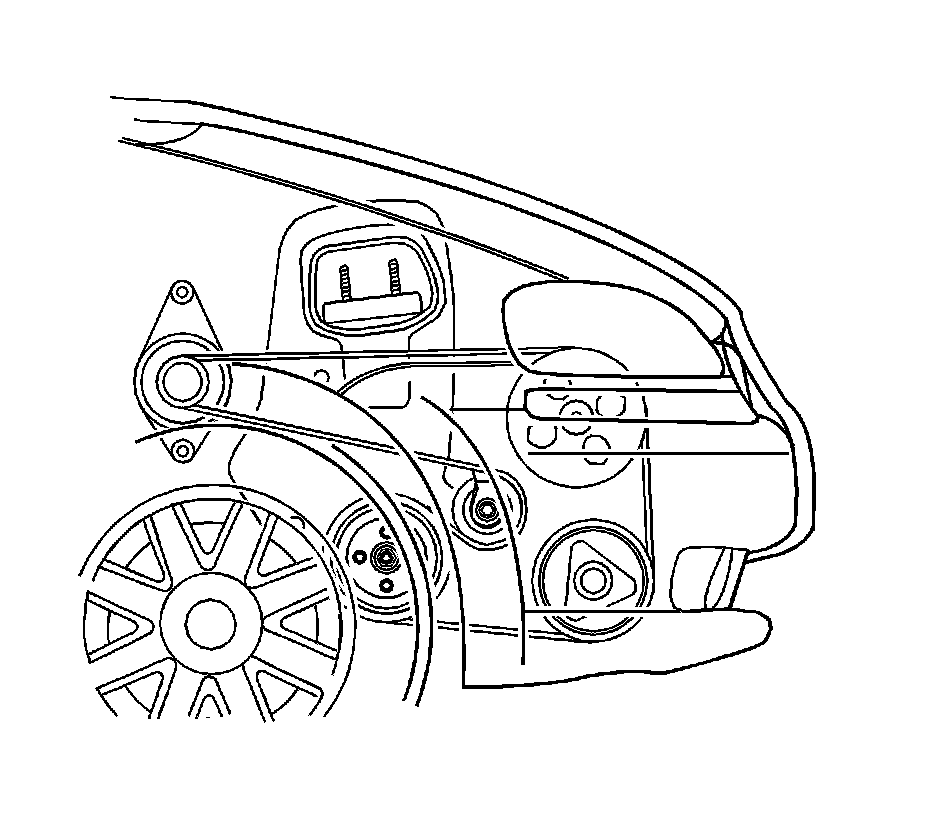

Power Steering Pump Belt Replacement

Tools Required

J 23600-B Belt Tension Gage

Checking Belt Tension





Notice: Refer to Belt Dressing Notice (Service Precautions).

1. Using the J 23600-B , check the tension on the pump drive belt.
2. If the J 23600-B does not indicate the proper tension, adjust the belt.


Adjusting Belt Tension




1. With the J 23600-B on the pump drive belt, loosen the alternator adjusting bolt and move the alternator until the gage indicates the proper tension.

Notice: Refer to Fastener Notice (Fastener Notice).

2. Tighten the alternator adjusting bolt.

Tighten the alternator adjusting bolt to 20 N.m (15 lb ft).
