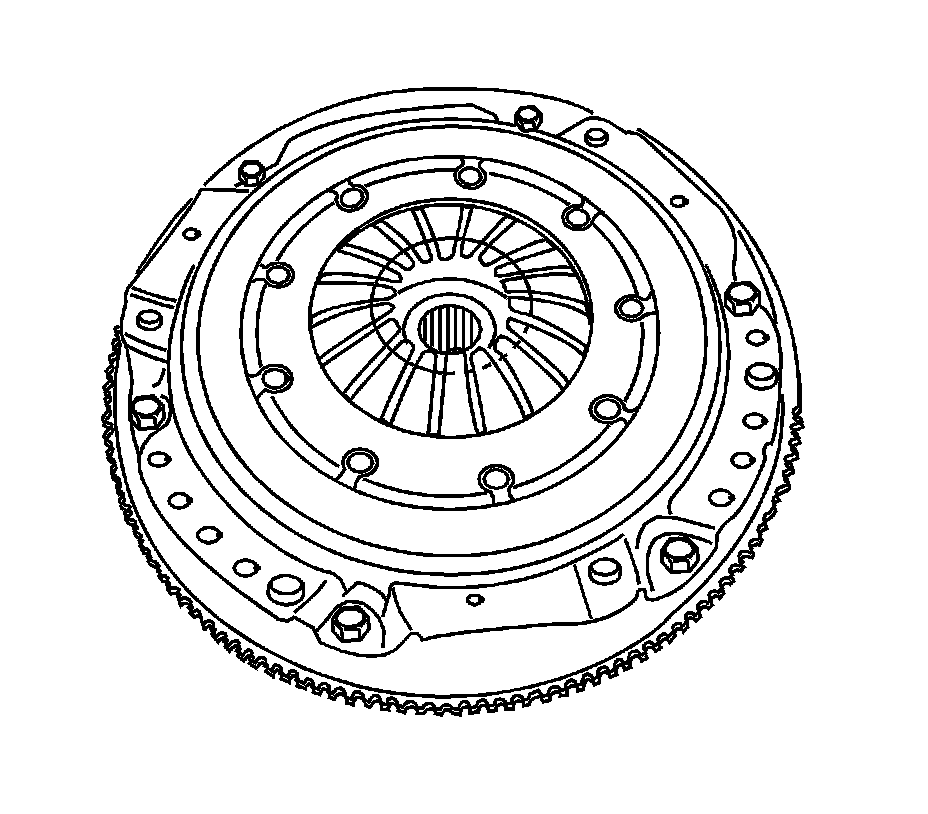

Pressure Plate





Install the pressure plate bolts.
For the hydraulic clutch type
Tighten the bolts to 15 N.m (11 lb ft).

For the cable clutch type
Tighten the bolts to 18 N.m (13 lb ft).
