Alignment: Service and Repair

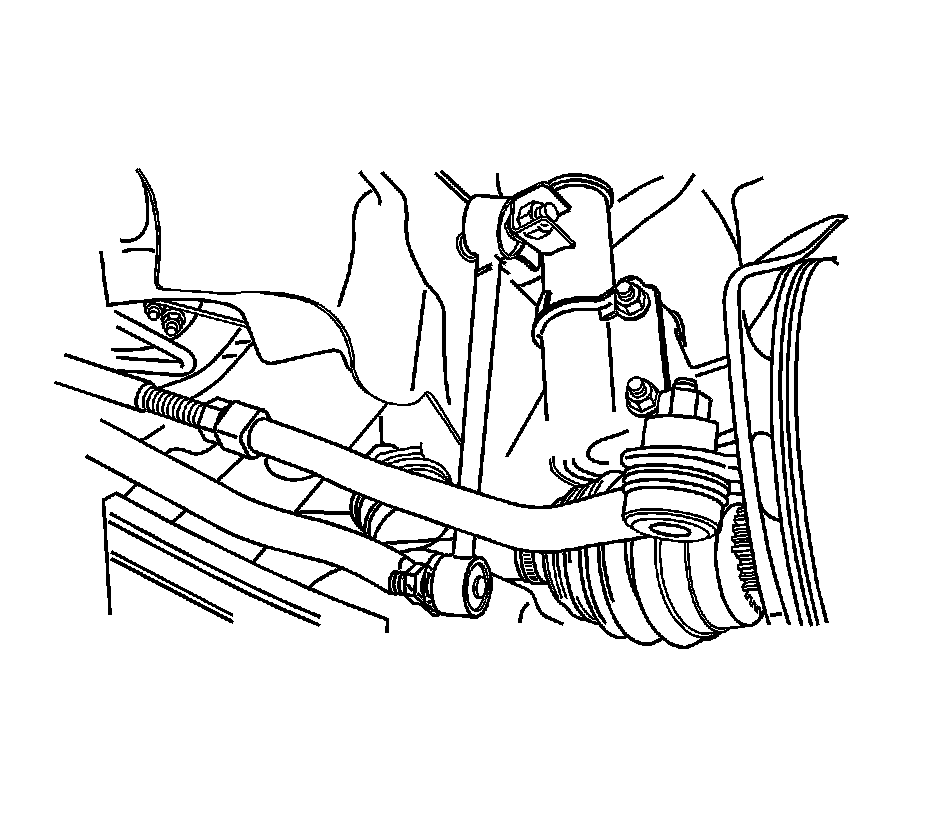

Front Toe Adjustment 1.
Loosen the right and the left rod lock bolts.
Important: In this adjustment, the right and left tie rods must be equal in length. 2.
Turn the right and the left tie rod adjusters to align the toe to 0 degrees ±10 minutes.
Notice: Refer to Fastener Notice (
Fastener Notice).
3.
Tighten the tie rod lock bolts.
Tighten the tie rod lock bolts to 64 N.m (47 lb ft).
