Transmission Pressure Test Port: Service and Repair



Automatic Transmission Fluid Pressure Test Hole Plug Replacement

Removal Procedure

1. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle (Service and Repair) .

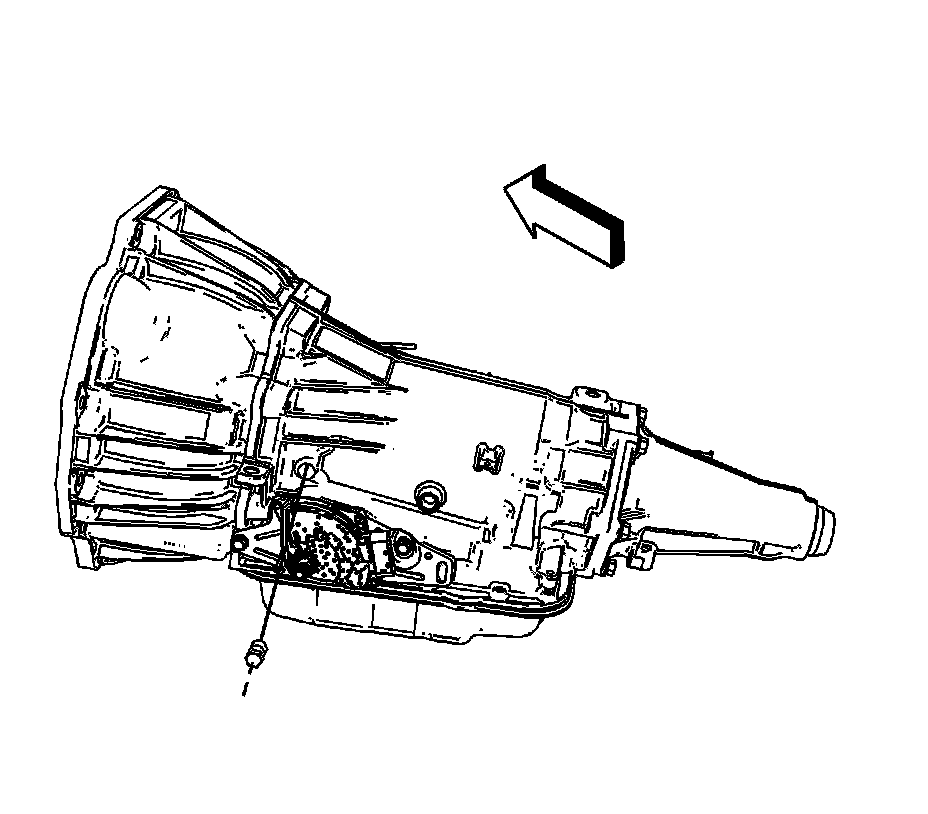

2. Remove the oil pressure test plug.

Installation Procedure





Notice: Refer to Component Fastener Tightening Notice (Component Fastener Tightening Notice) .

1. Install an oil pressure test plug.

Tighten the oil pressure test plug to 8 N.m (71 lb in).

2. Check the transmission fluid level, fill if necessary. Refer to Transmission Fluid Check (Testing and Inspection) .
3. Lower the vehicle.
