Engine, Cooling and Exhaust

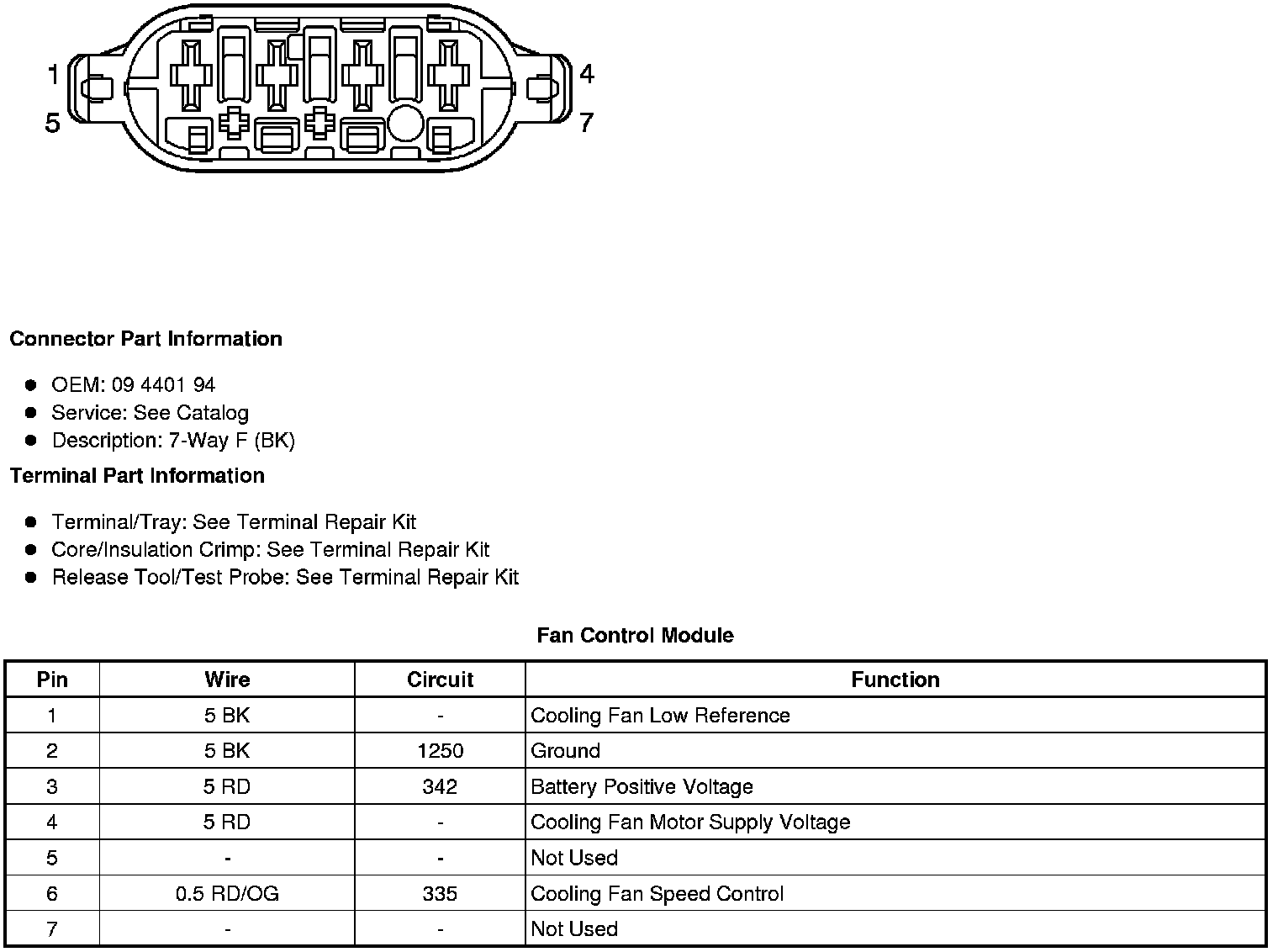

Fan Control Module

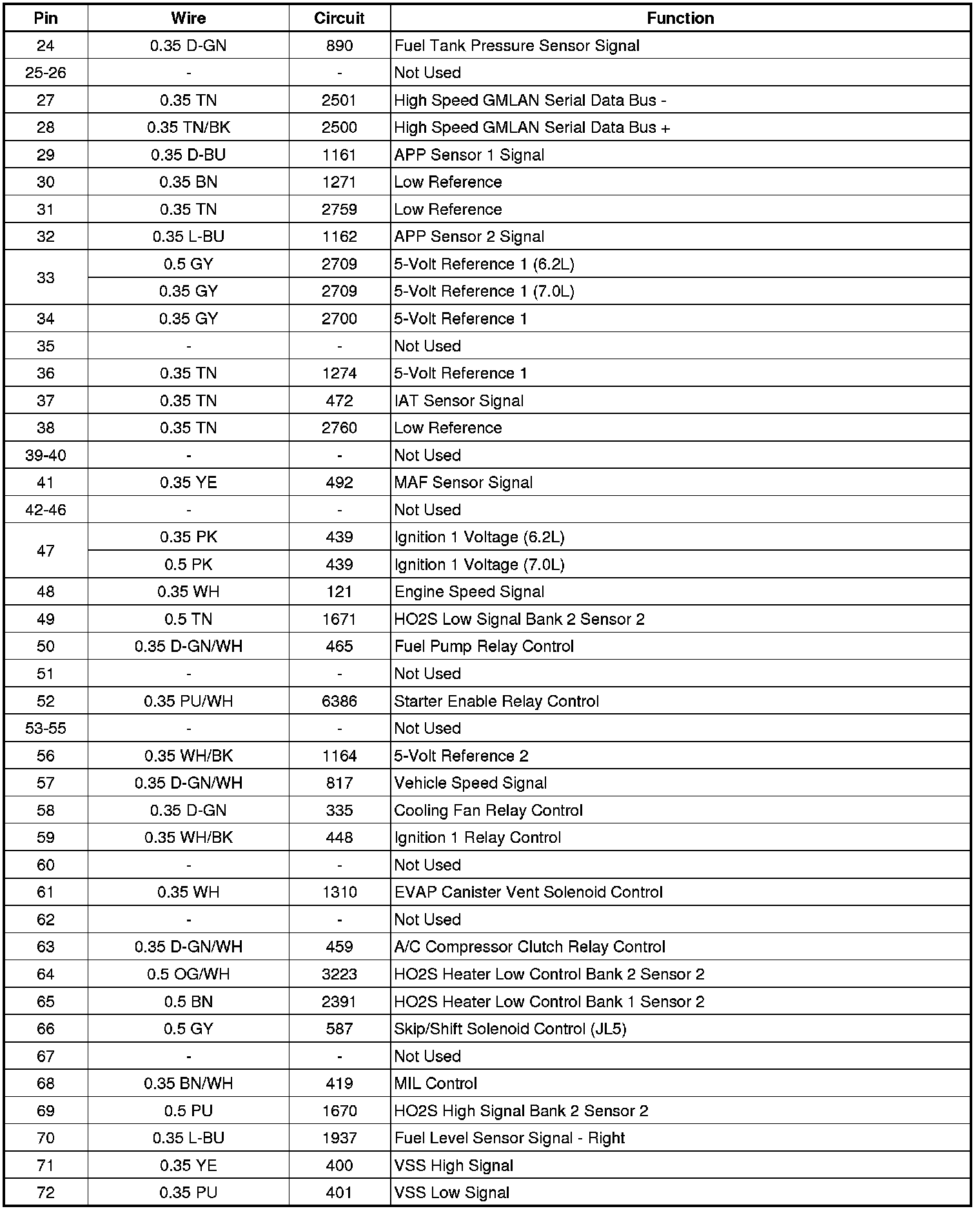

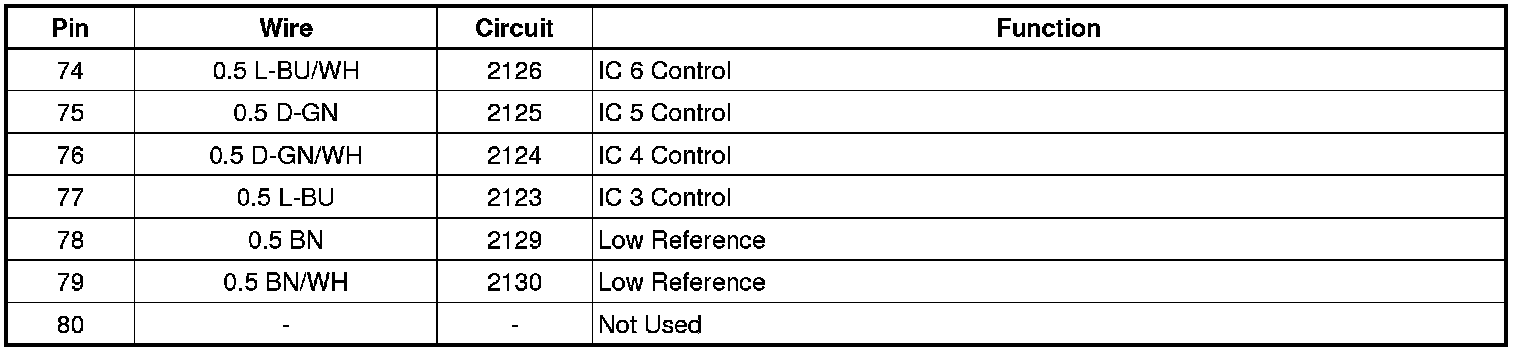

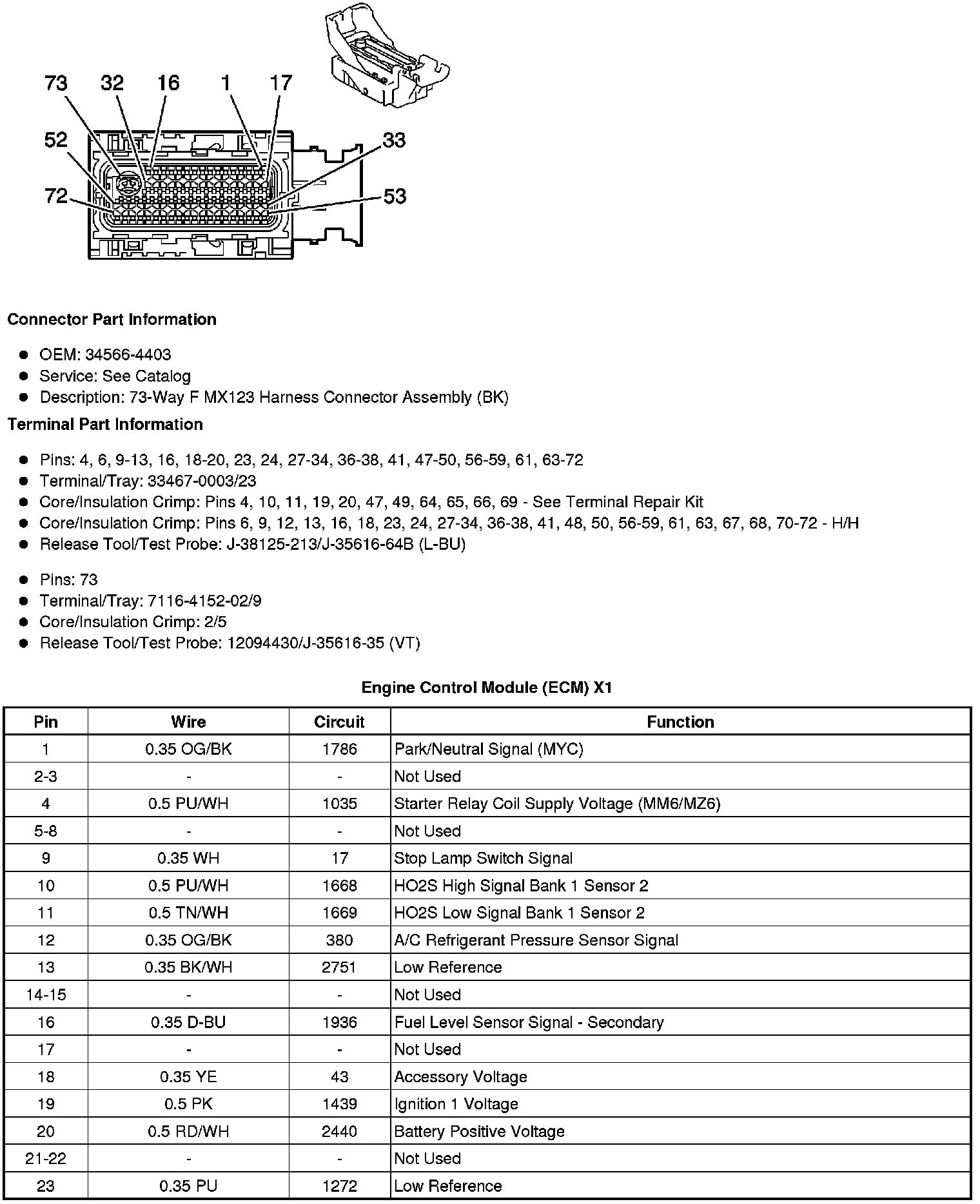

Engine Control Module (ECM) X1

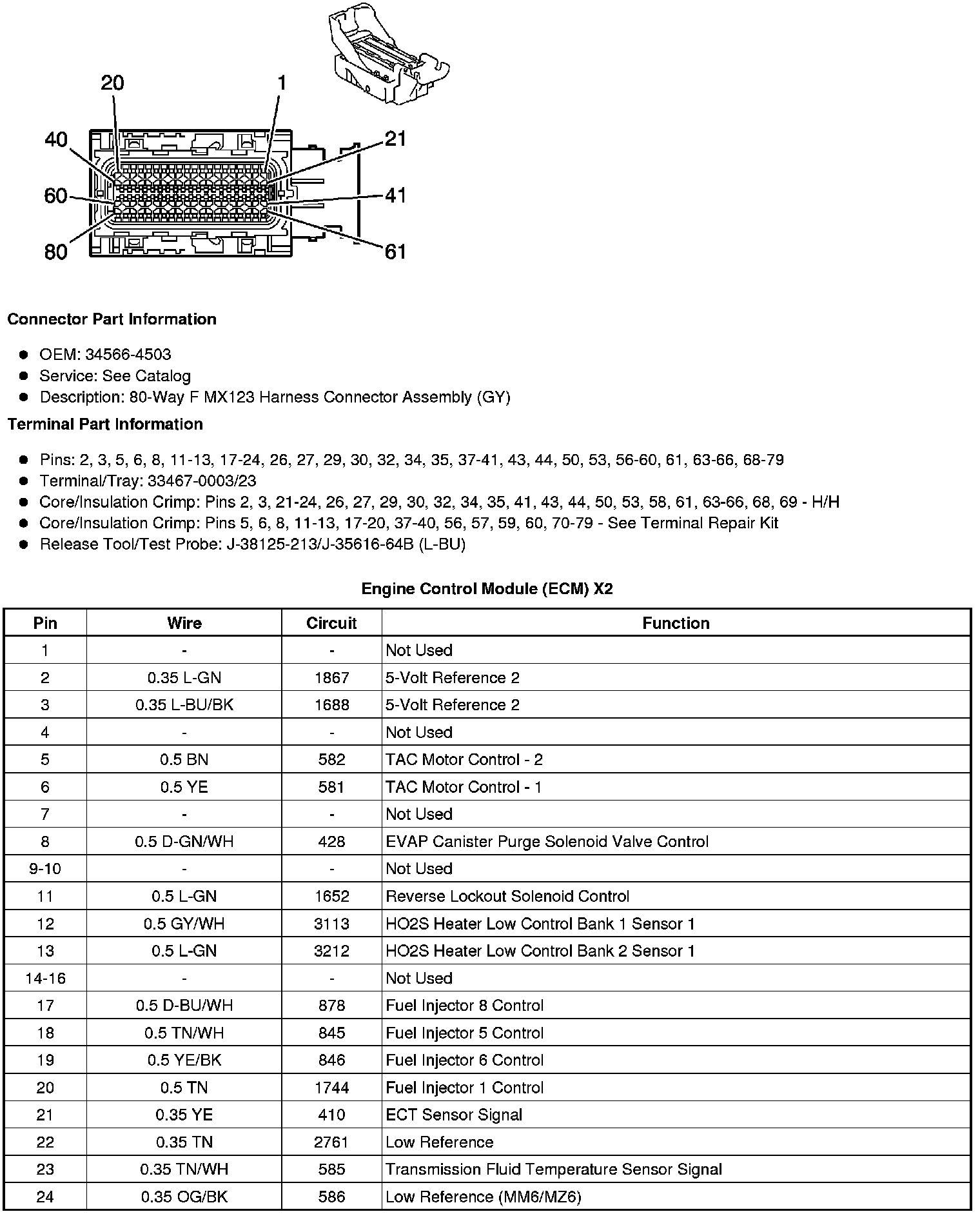

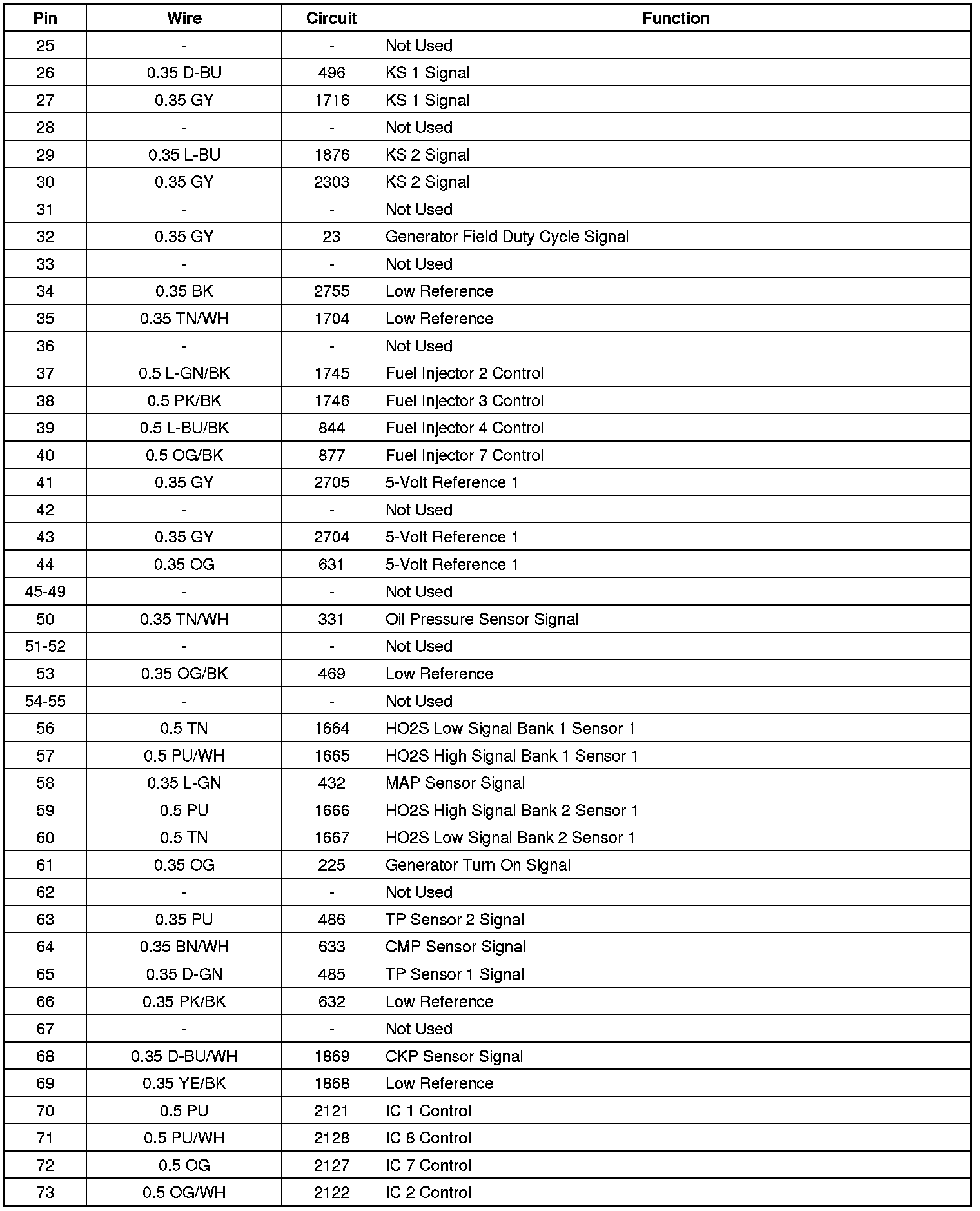

Engine Control Module (ECM) X2

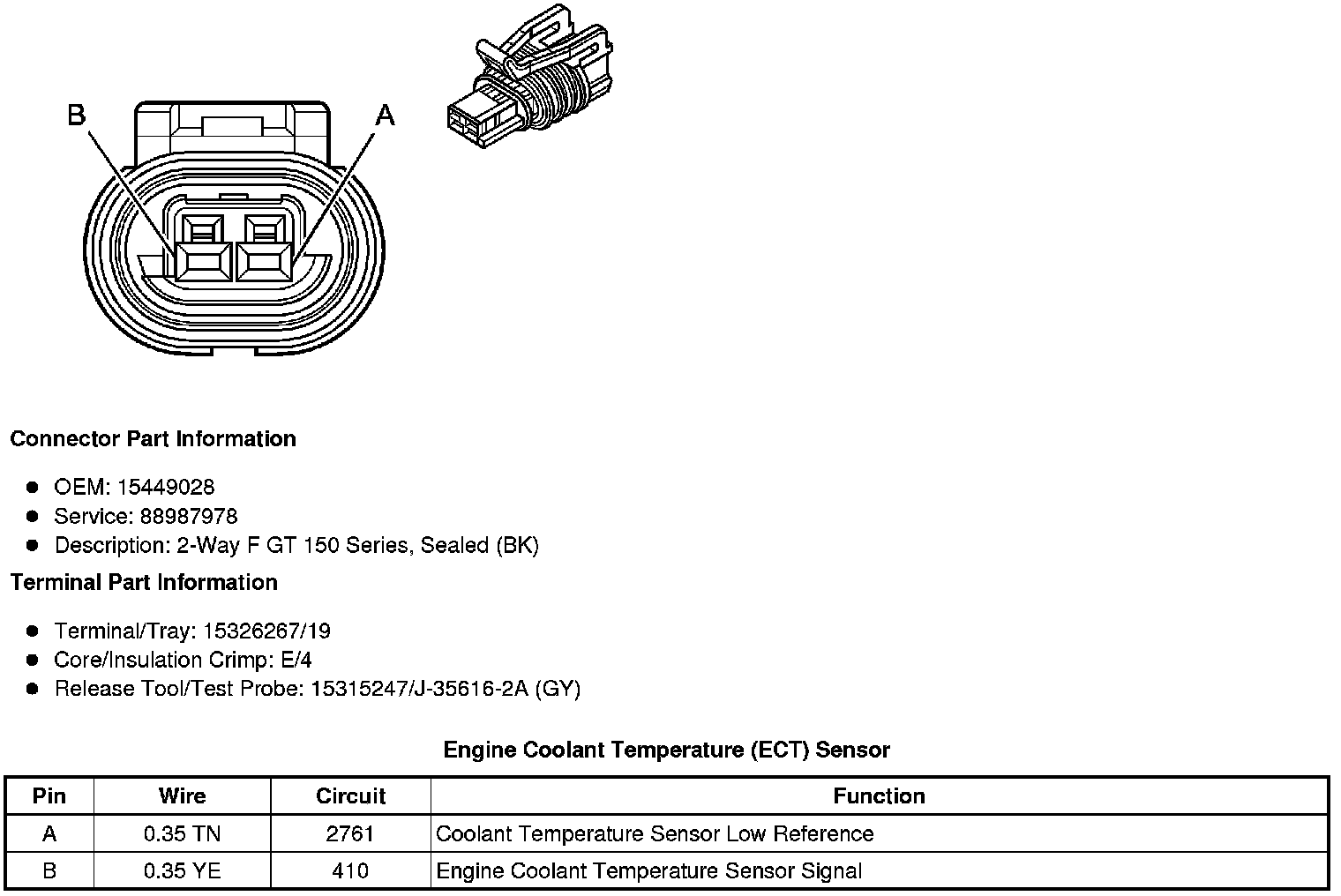

Engine Coolant Temperature (ECT) Sensor

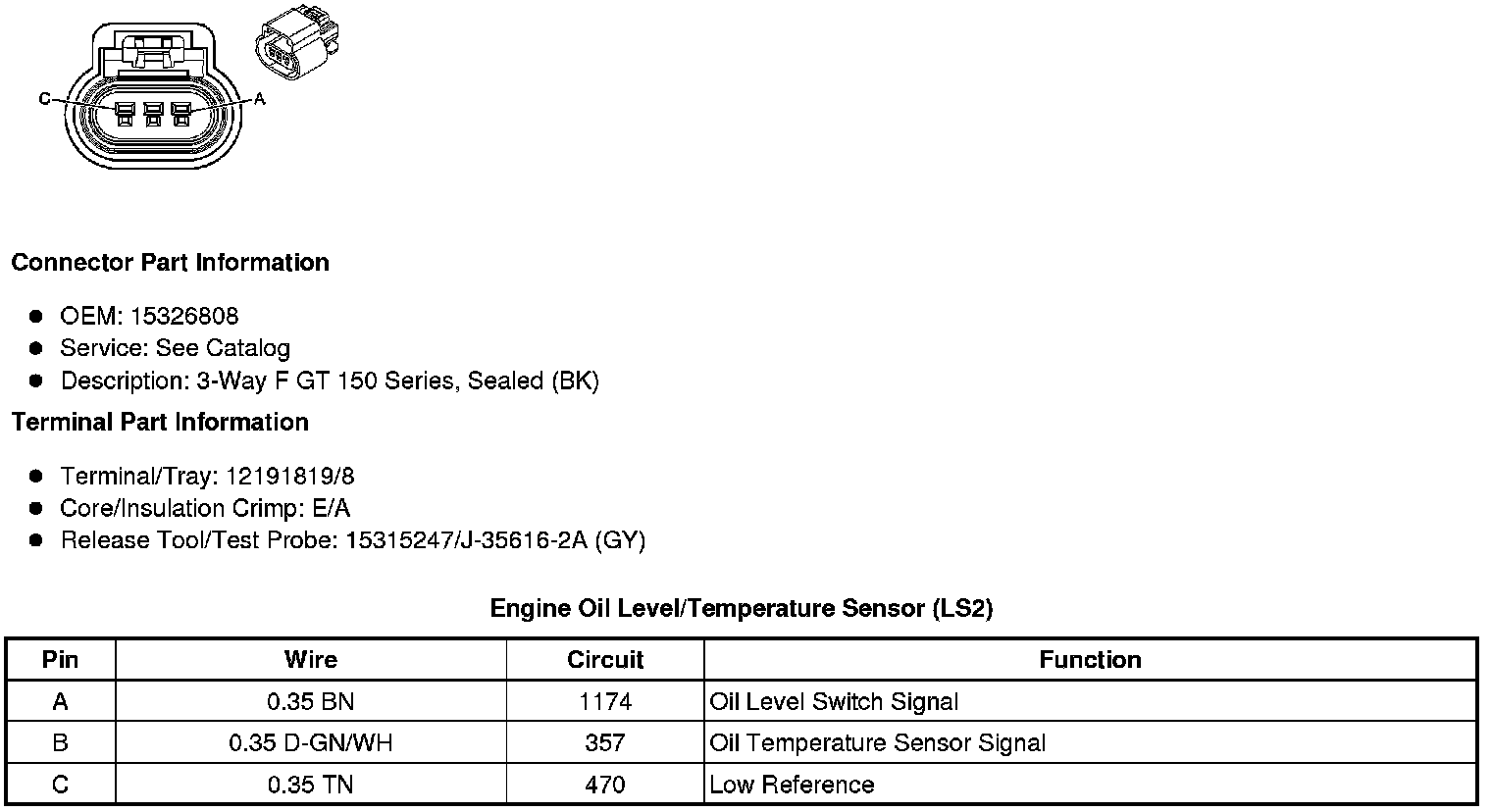

Engine Oil Level/Temperature Sensor (LS2)

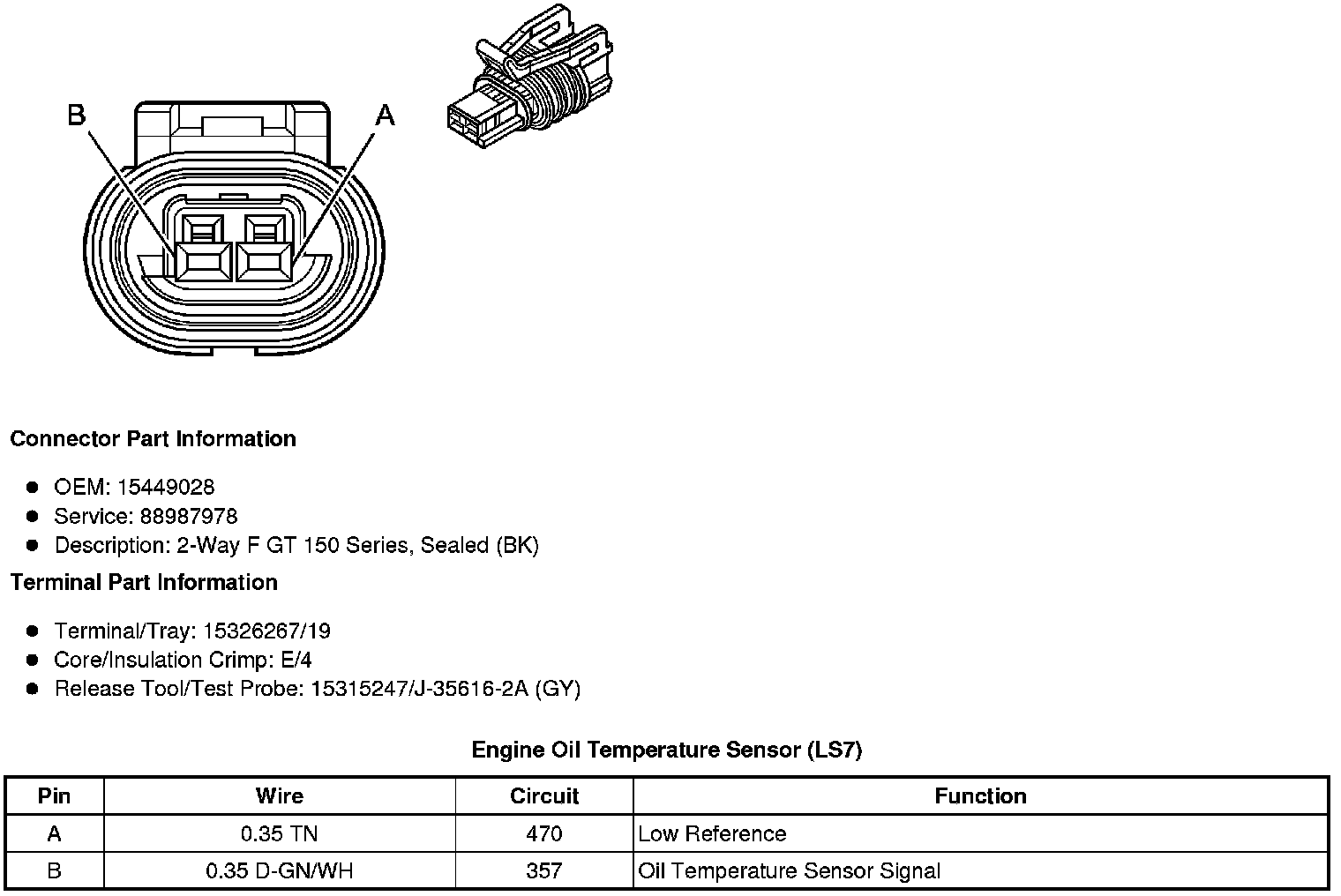

Engine Oil Temperature Sensor (LS7)

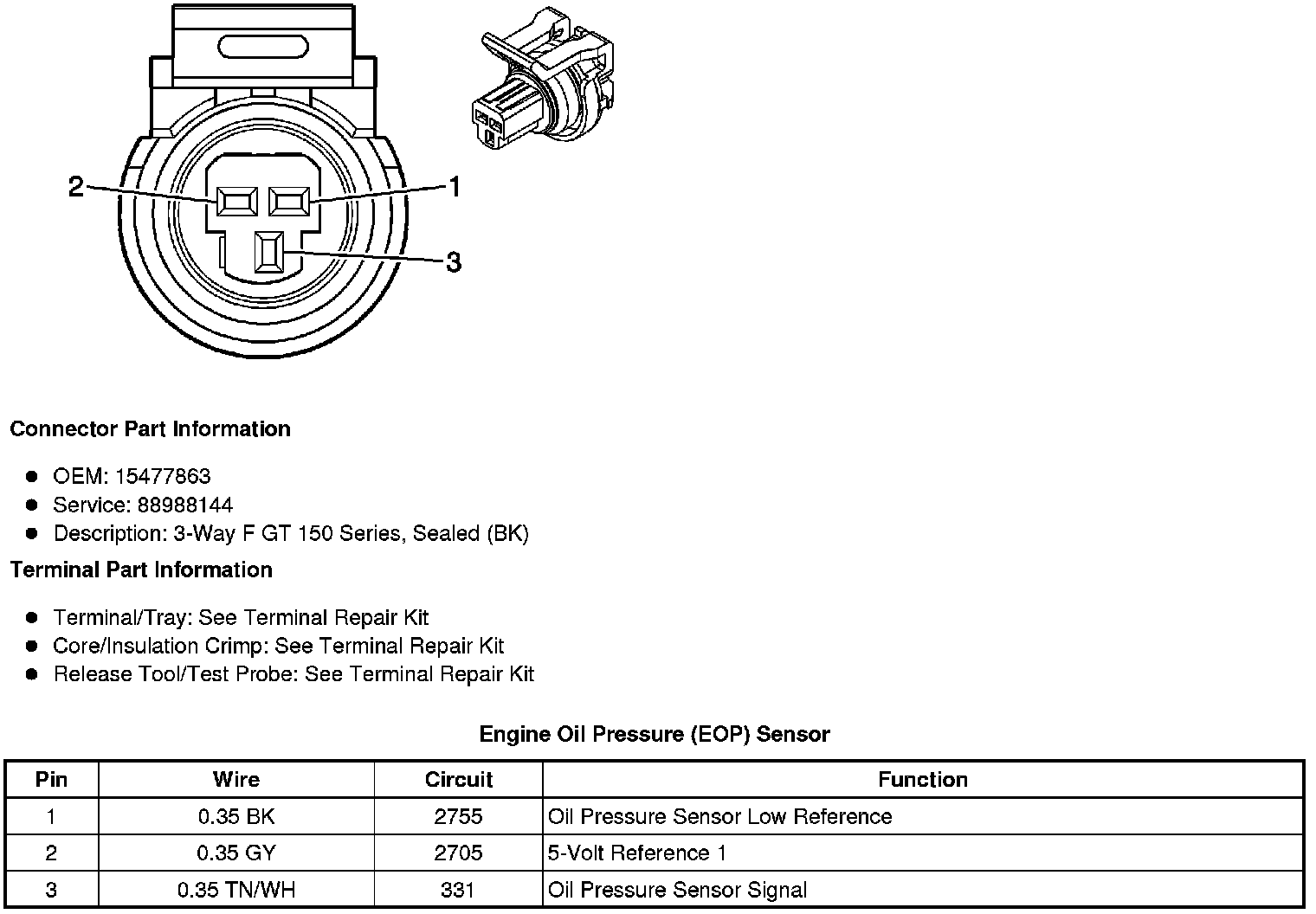

Engine Oil Pressure (EOP) Sensor

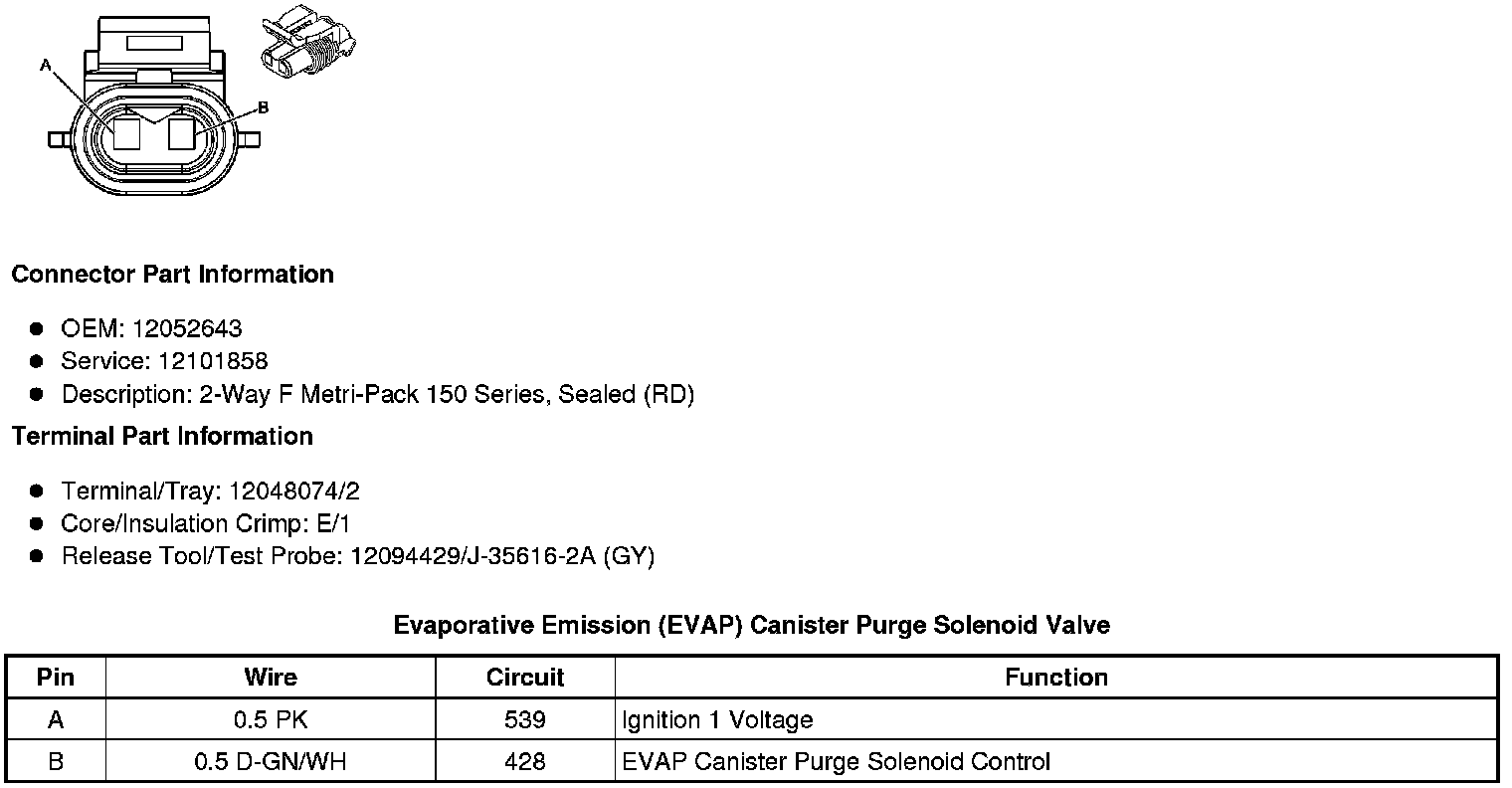

Evaporative Emission (EVAP) Canister Purge Solenoid Valve

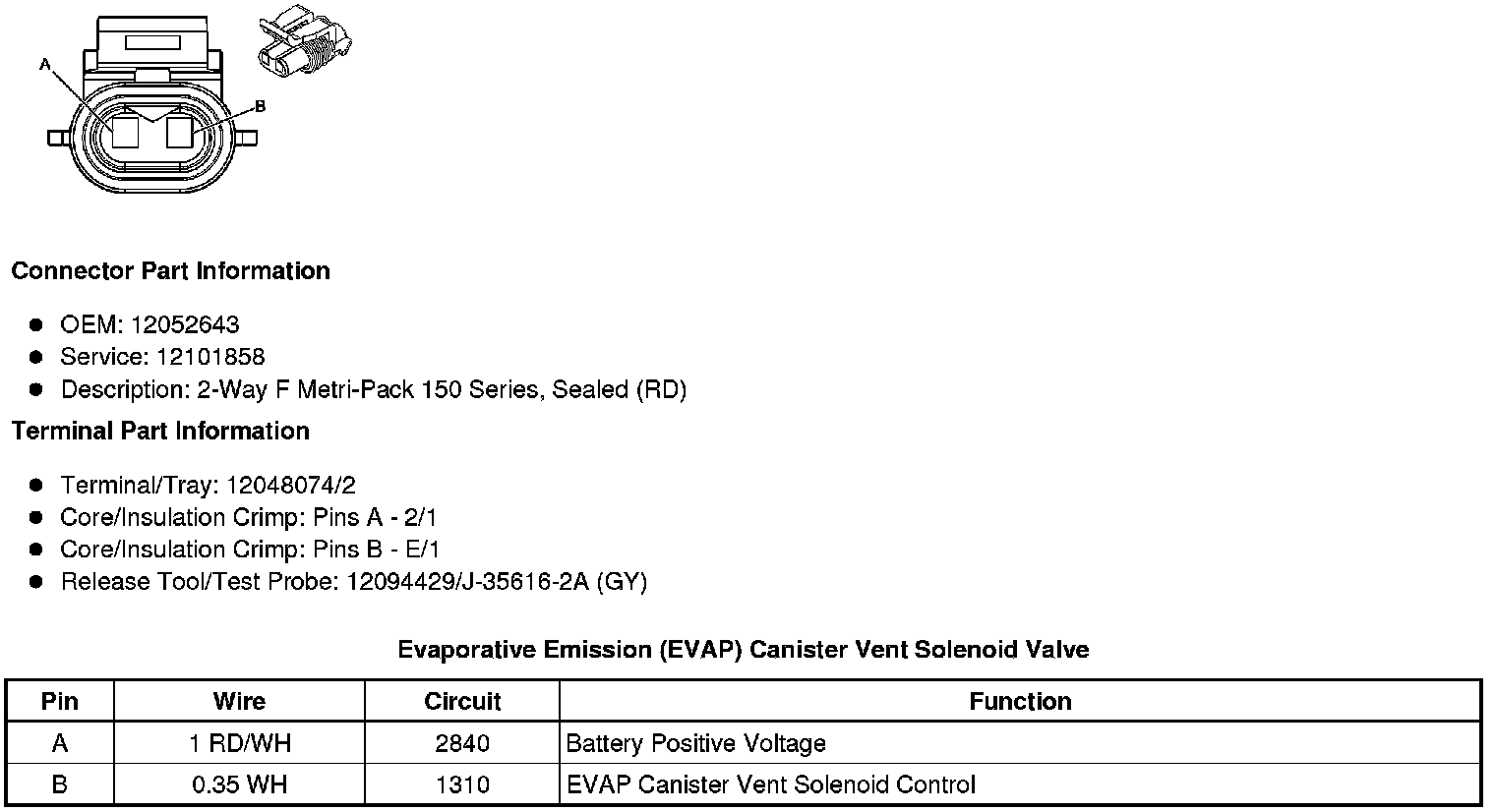

Evaporative Emission (EVAP) Canister Vent Solenoid Valve






Exhaust Tail Pipe Flow Valve Control Module X1

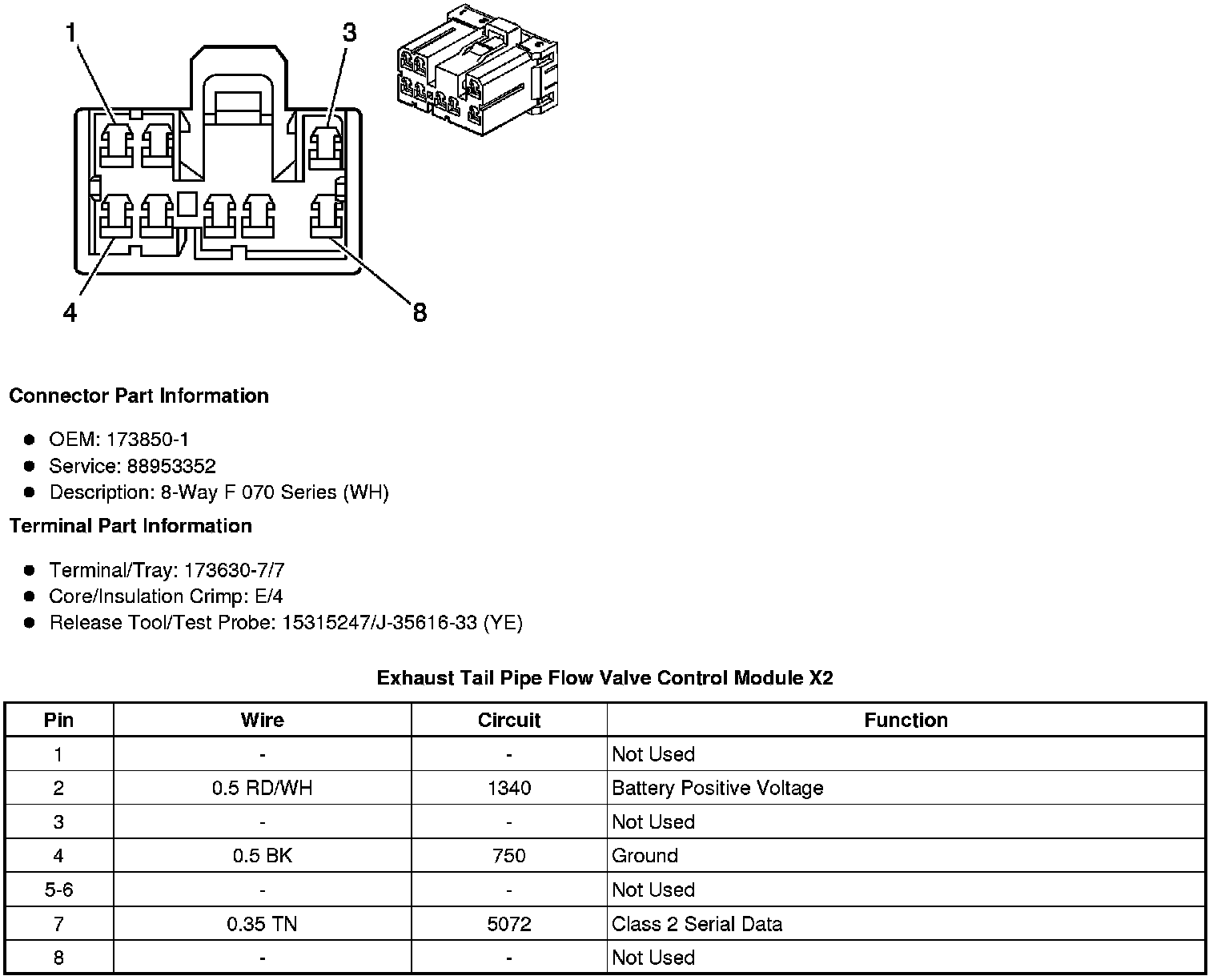

Exhaust Tail Pipe Flow Valve Control Module X2

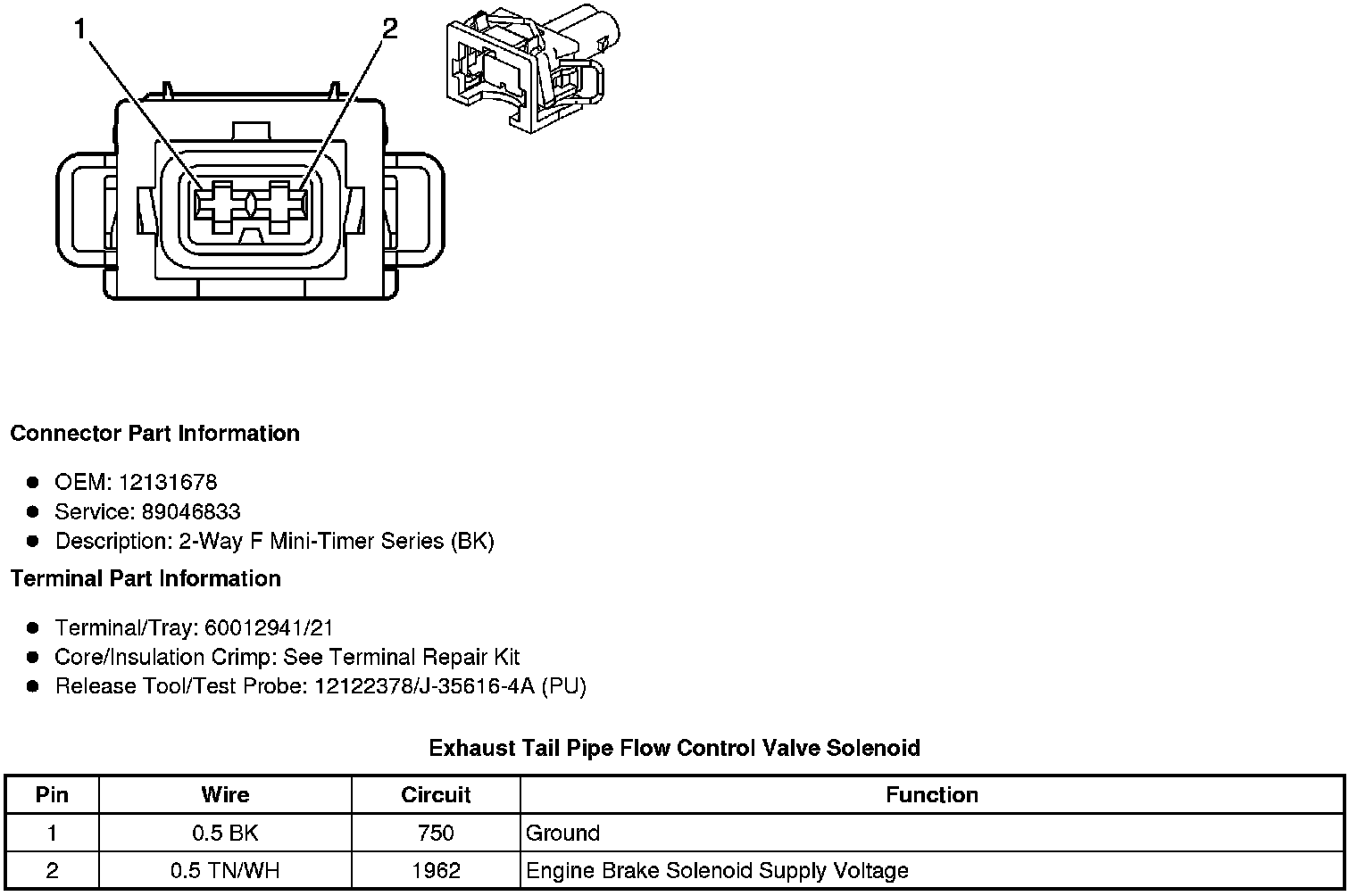

Exhaust Tail Pipe Flow Control Valve Solenoid

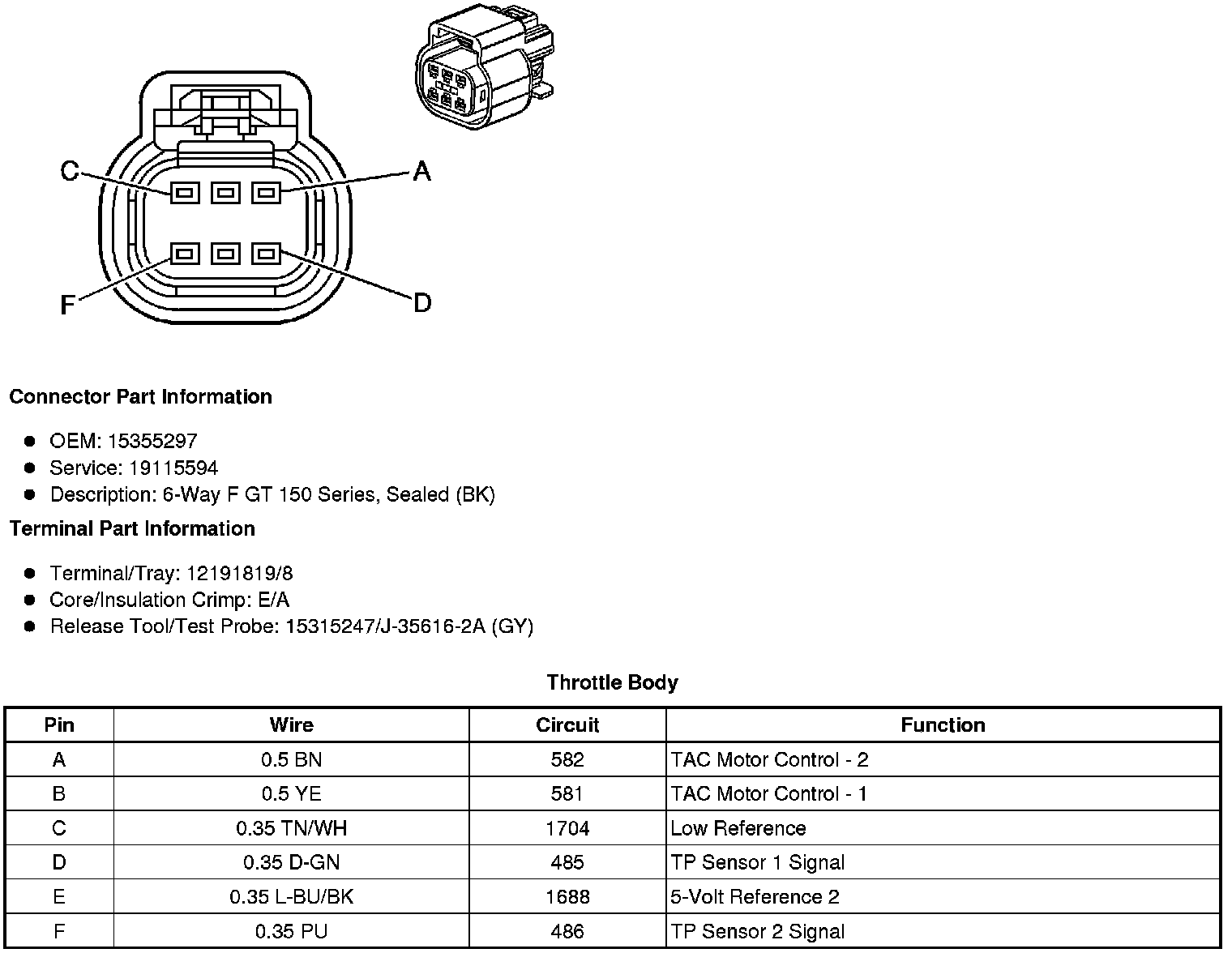

Throttle Body
