Instrument Panel, Gauges and Warning Indicators

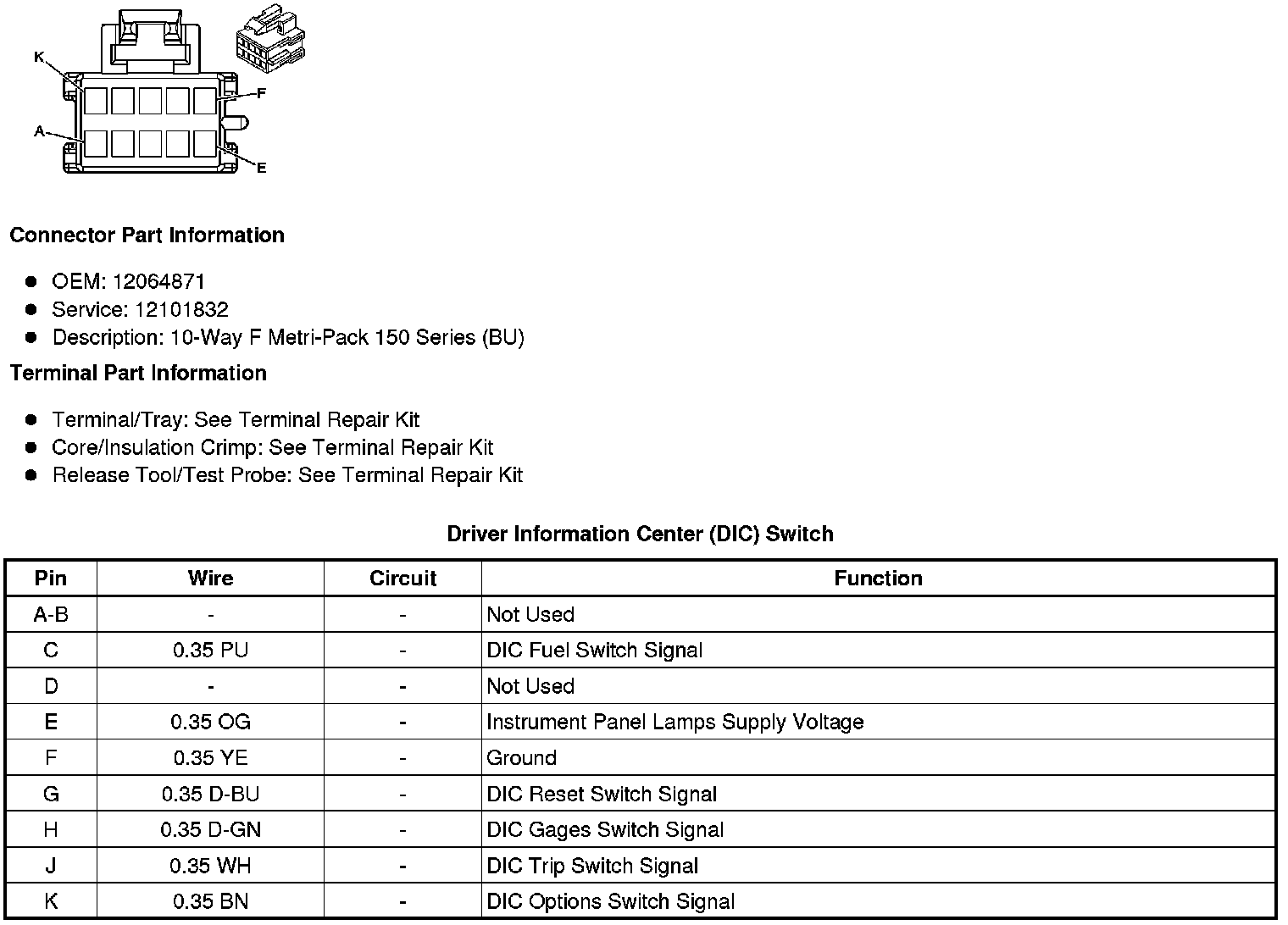

Driver Information Center (DIC) Switch

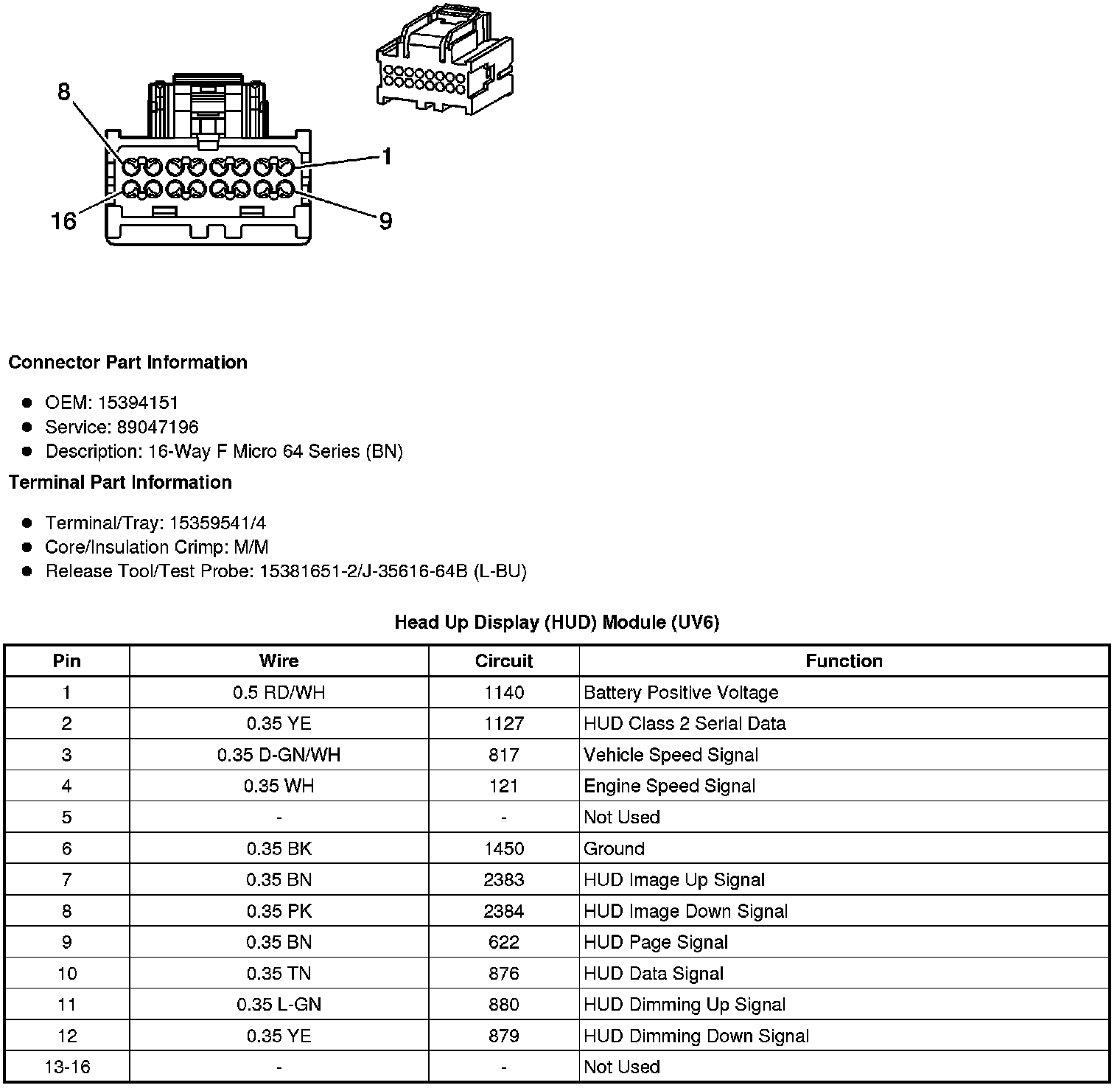

Head Up Display (HUD) Module (UV6)

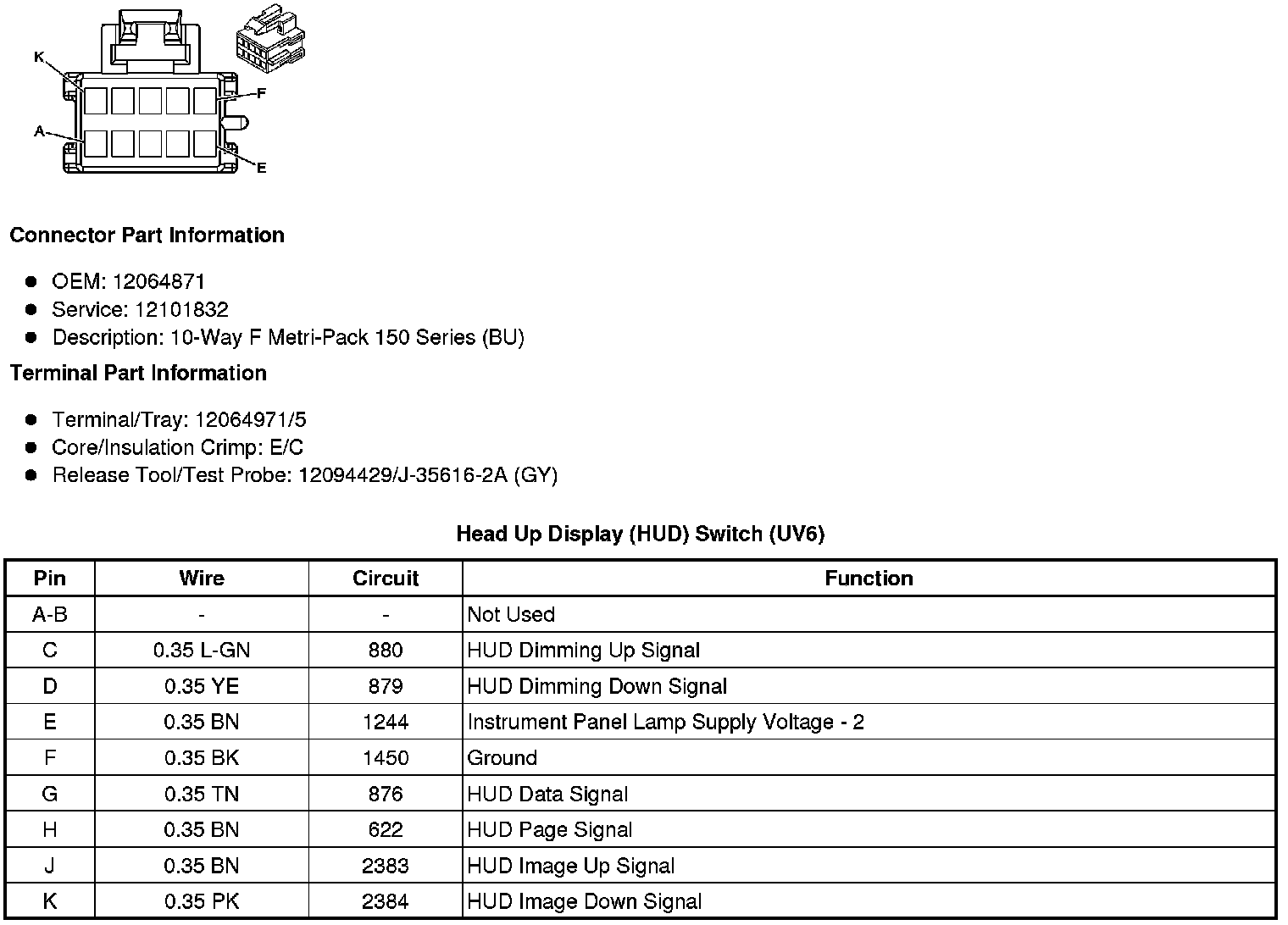

Head Up Display (HUD) Switch (UV6)

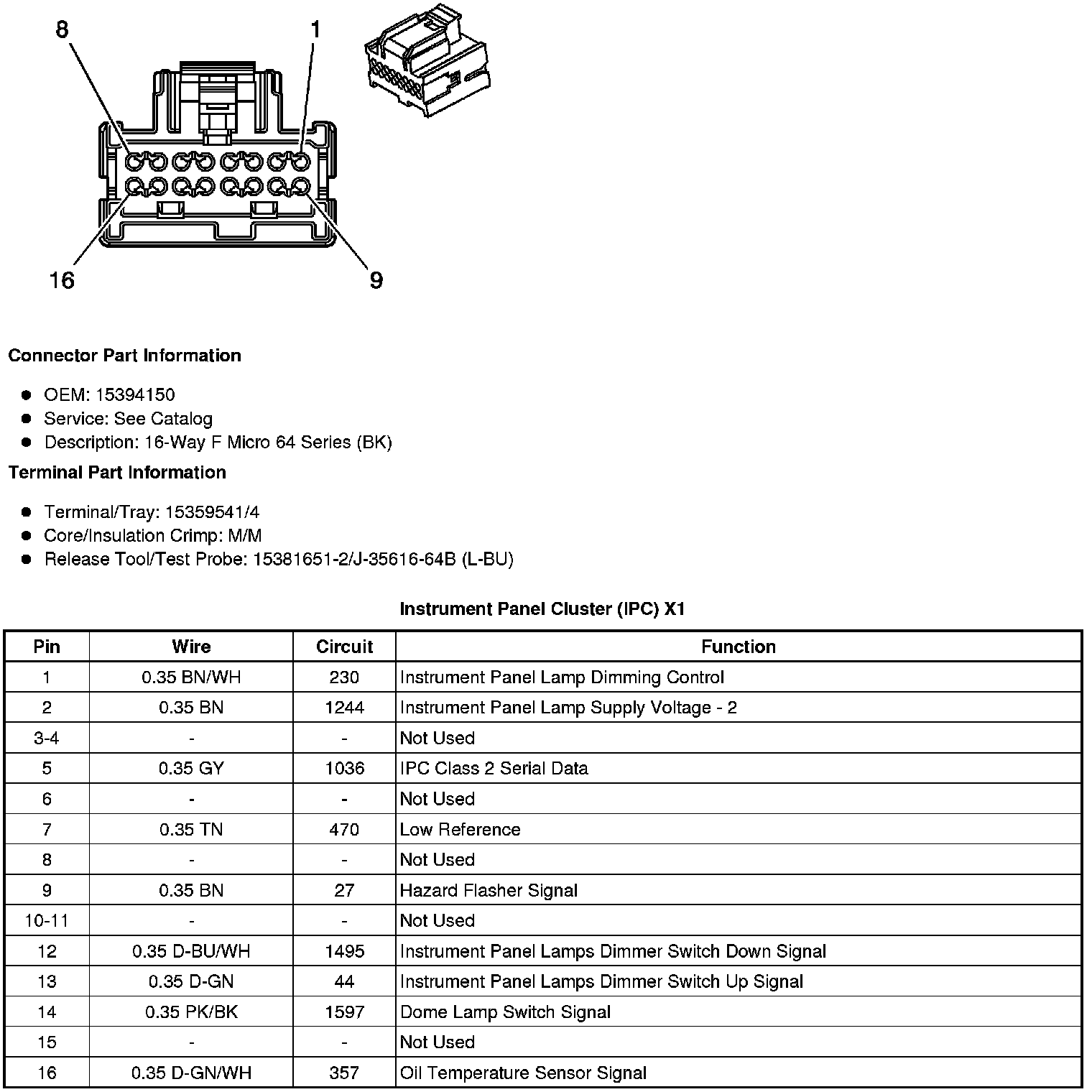

Instrument Panel Cluster (IPC) X1

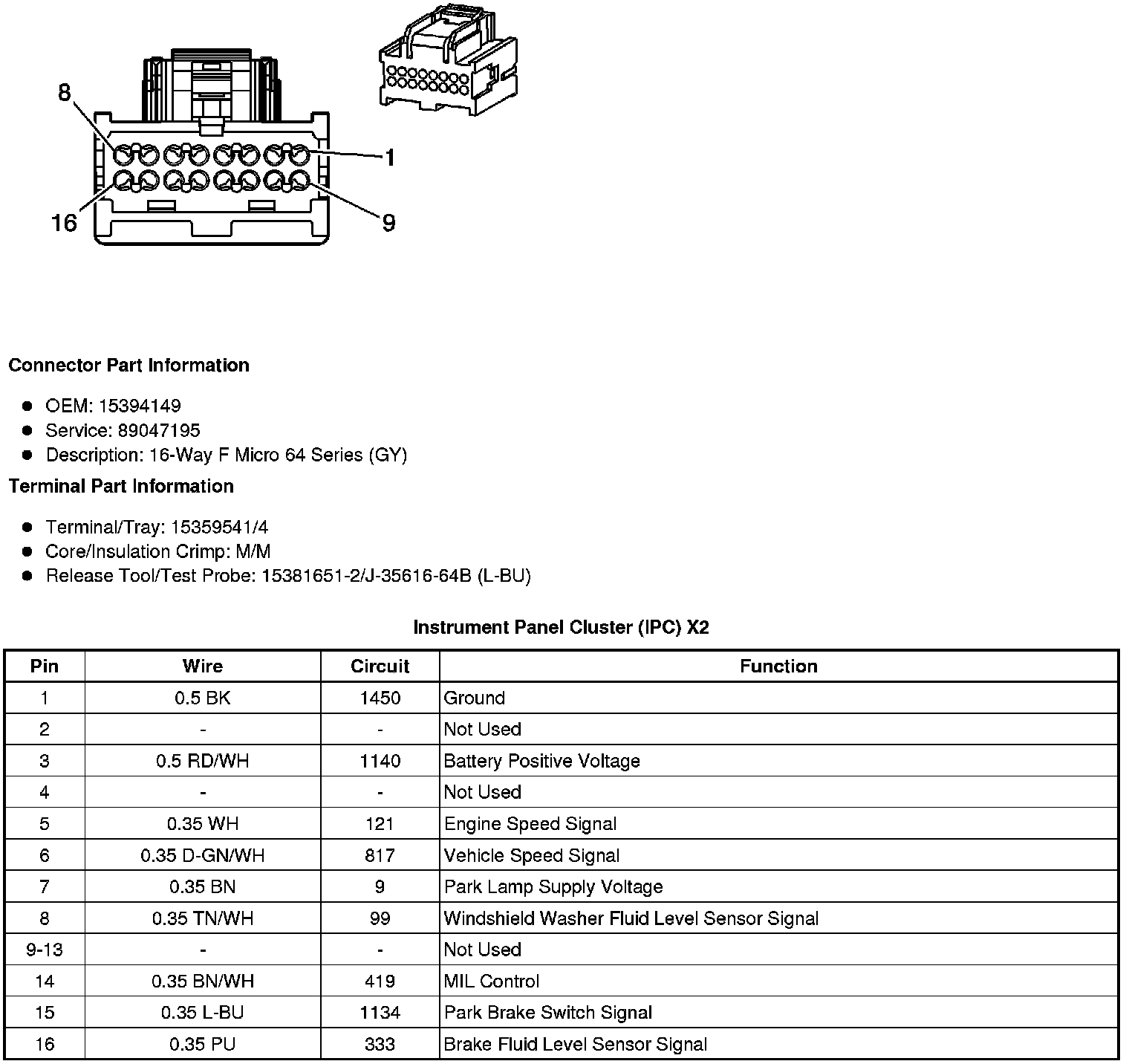

Instrument Panel Cluster (IPC) X2

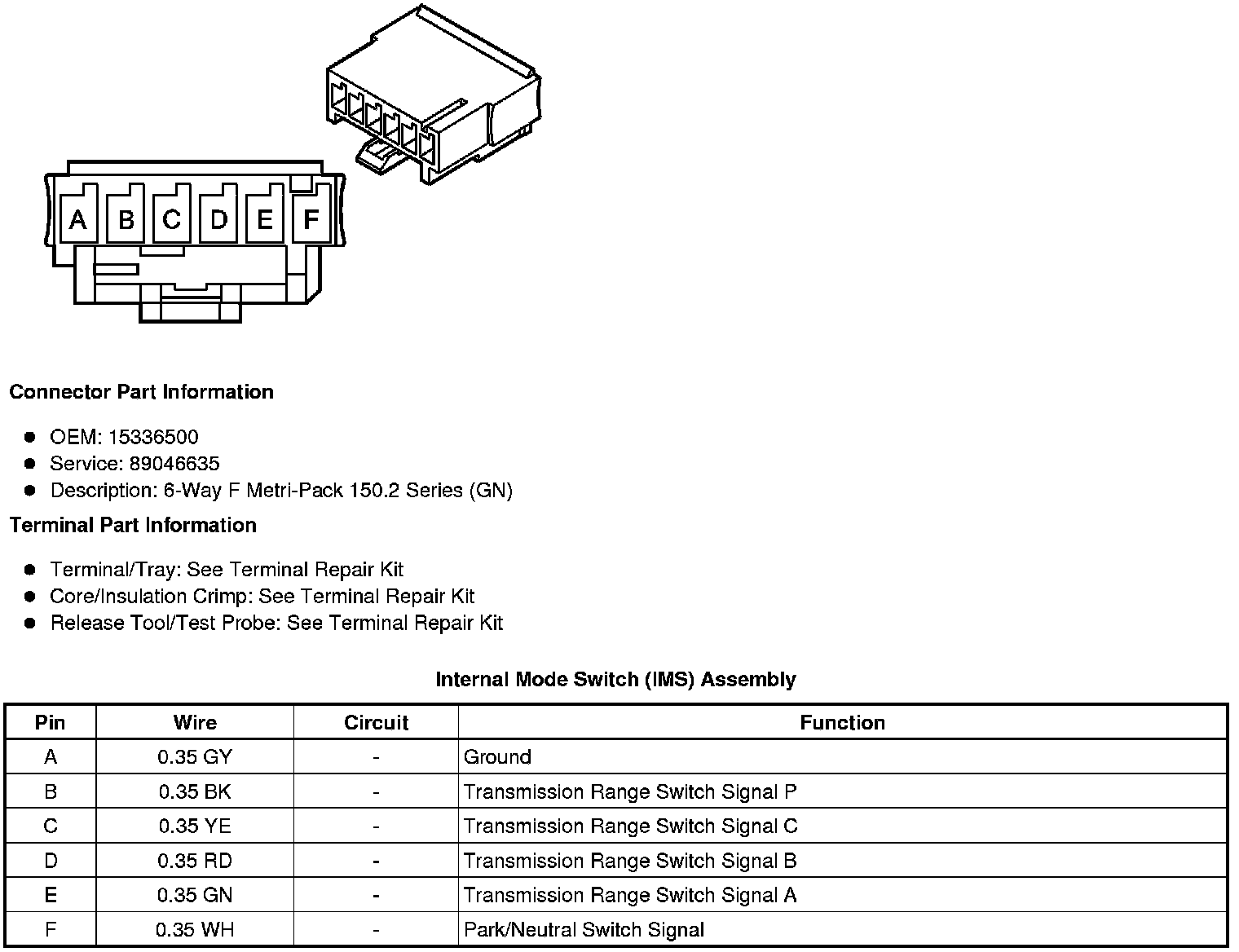

Internal Mode Switch (IMS) Assembly

Intrusion Sensor (UA2)

Intrusion Sensor Defeat Switch (UA2)

I/P Compartment Lamp

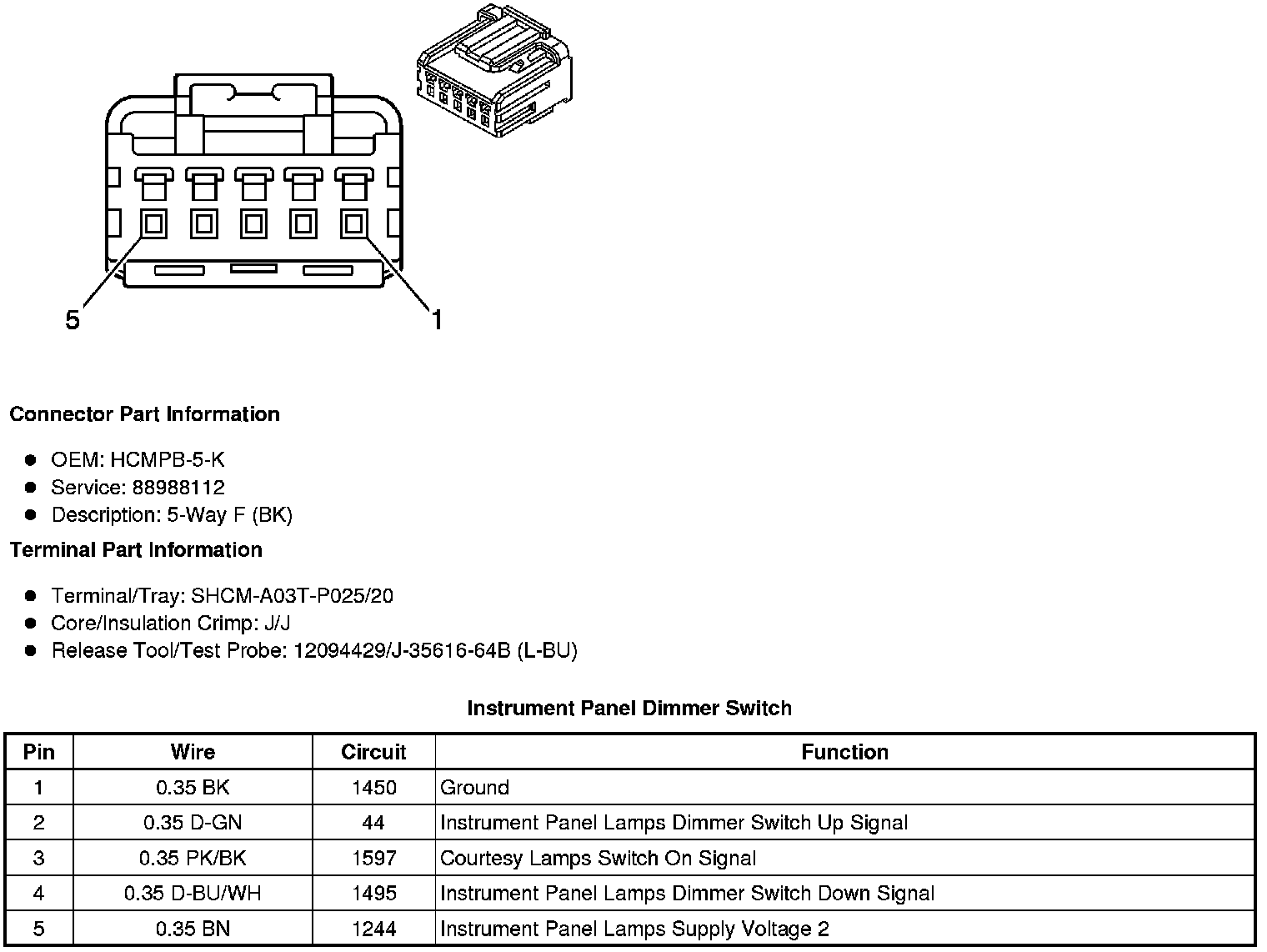

Instrument Panel Dimmer Switch

Keyless Entry Antenna - Back Up

Keyless Entry Antenna - Left

Keyless Entry Antenna - Rear Compartment

Keyless Entry Antenna - Right
