Rear Fascia Lighting

Harness Routing Views

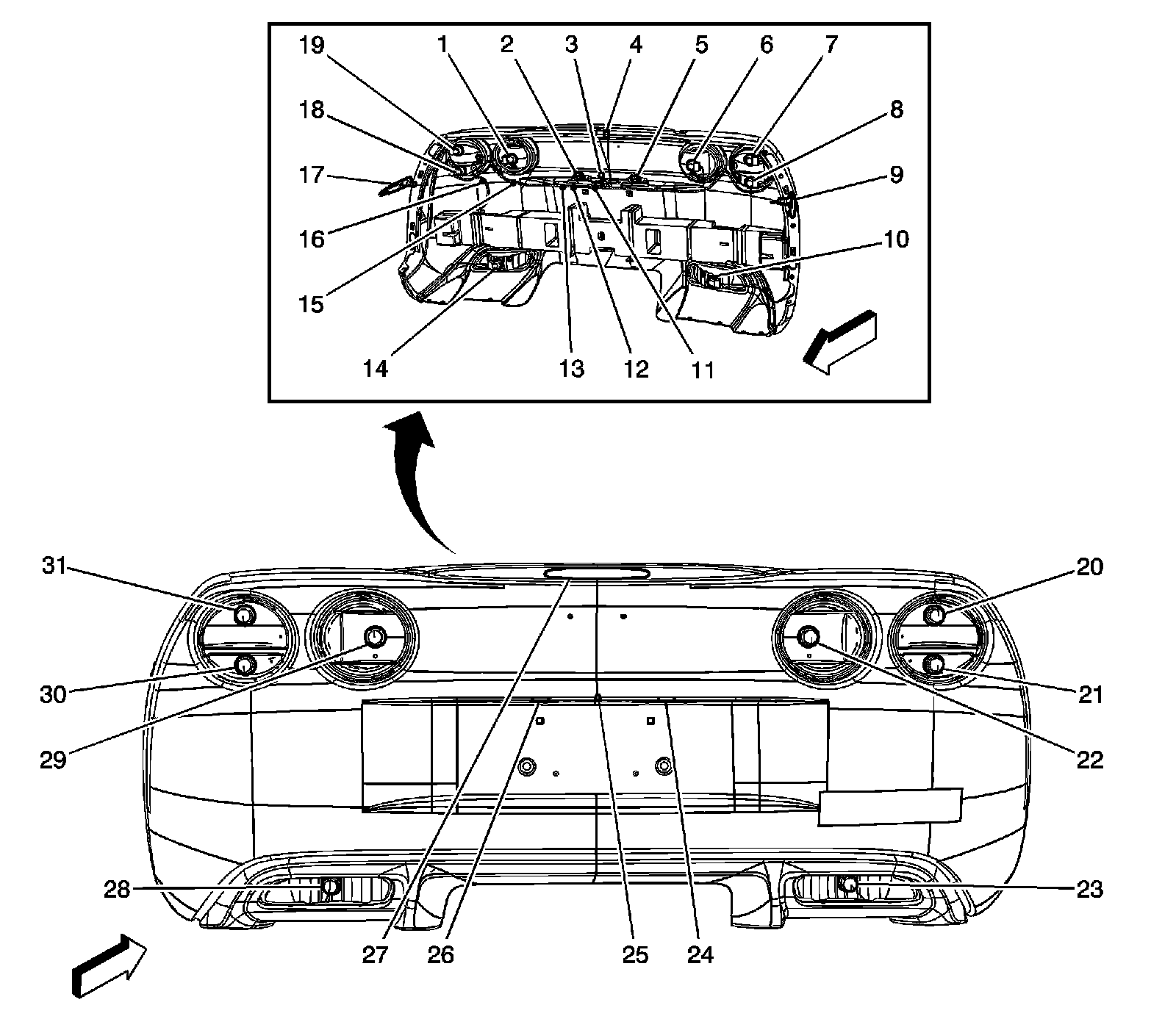

Rear Fascia Lighting (- North America)




1 - Fog Lamp - Right Rear
2 - License Lamp
3 - Rear Compartment Lid Release Switch - Exterior
4 - Center High Mounted Stop Lamp (CHMSL)
5 - License Lamp
6 - Fog Lamp - Left Rear
7 - Tail/Stop Lamp - Left
8 - Turn Signal Lamp - Left
9 - Side Marker Lamp - Left Rear
10 - Backup Lamp - Left
11 - J459
12 - J931
13 - J900
14 - Backup Lamp - Right
15 - J455
16 - J 960
17 - Side Marker Lamp - Right Rear
18 - Turn Signal Lamp - Right
19 - Tail/Stop Lamp - Right
20 - Tail/Stop Lamp - Right
21 - Turn Signal Lamp - Right
22 - Fog Lamp - Right Rear
23 - Backup Lamp - Right
24 - License Lamp
25 - Rear Compartment Lid Release Switch - Exterior
26 - License Lamp
27 - Center High Mounted Stop Lamp (CHMSL)
28 - Backup Lamp - Left
