Lamp Views

Harness Routing Views

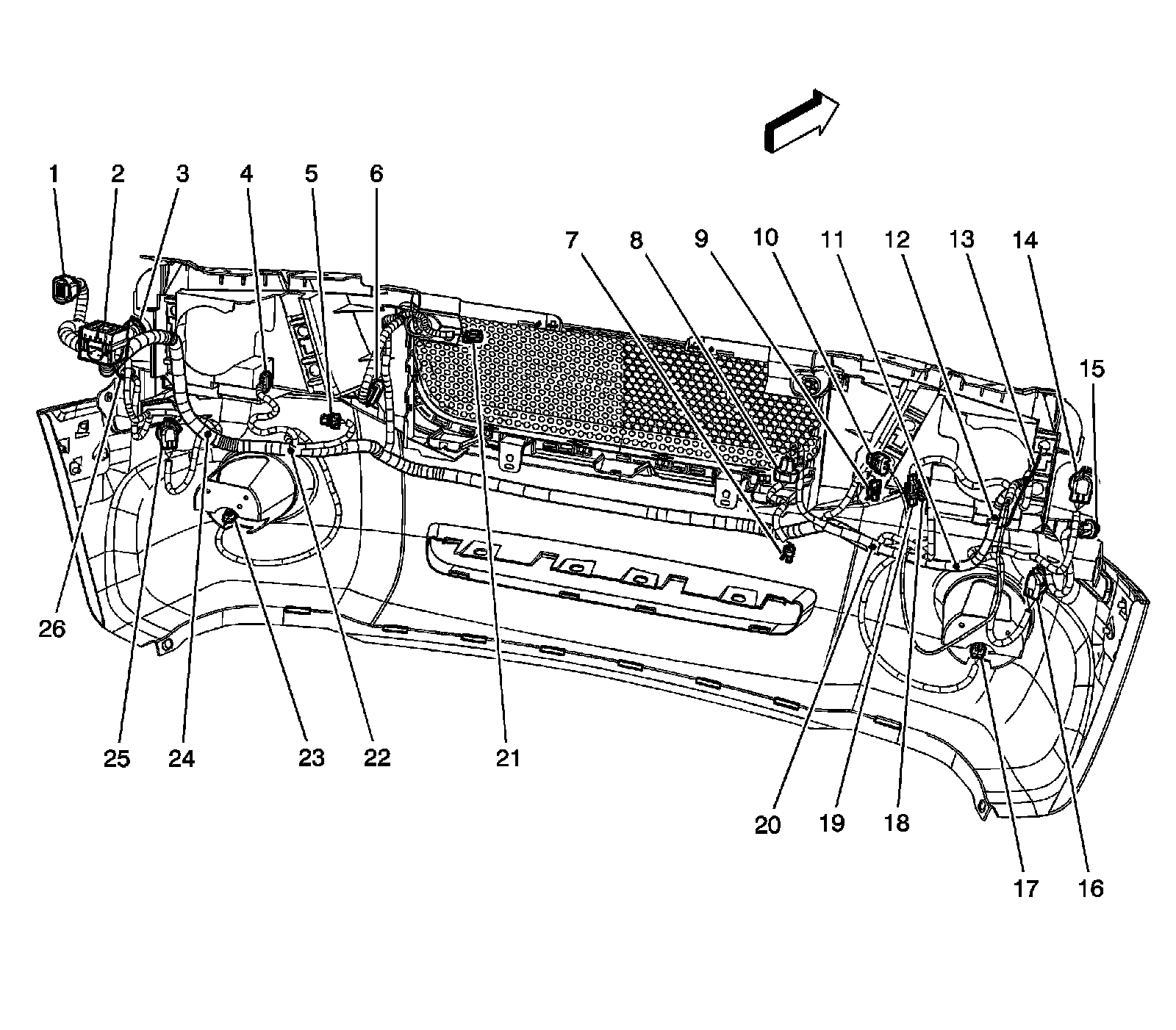

Forward Lamp Harness Routing




1 - C105
2 - Fuse Block - Underhood C4
3 - Park/Turn Signal Lamp - LF
4 - C102
5 - Horn Assembly
6 - C118
7 - Windshield Washer Fluid Level Switch (U68)
8 - Headlamp Washer Fluid Pump (CE4)
9 - Windshield Washer Fluid Pump
10 - A/C Low Pressure Switch
11 - S104 (W49)
12 - S103
13 - G103
14 - Park/Turn Signal Lamp - RF
15 - Marker Lamp -RF
16 - Cornering Lamp - Right (Z88/W49)
17 - Fog Lamp - RF
18 - C103
19 - Rear Window Washer Fluid Pump
20 - S113
21 - Ambient Air Temperature Sensor (CJ3)
22 - S107
23 - Fog Lamp - LF
24 - S106 (W49)
25 - Cornering Lamp - Left (Z88/W49)
26 - Marker Lamp - LF
