Liftgate Water Deflector Replacement

Liftgate Water Deflector Replacement

Removal Procedure




1. Open the liftgate.
2. Remove the liftgate trim panel. Refer to Liftgate Trim Panel Replacement (Service and Repair).

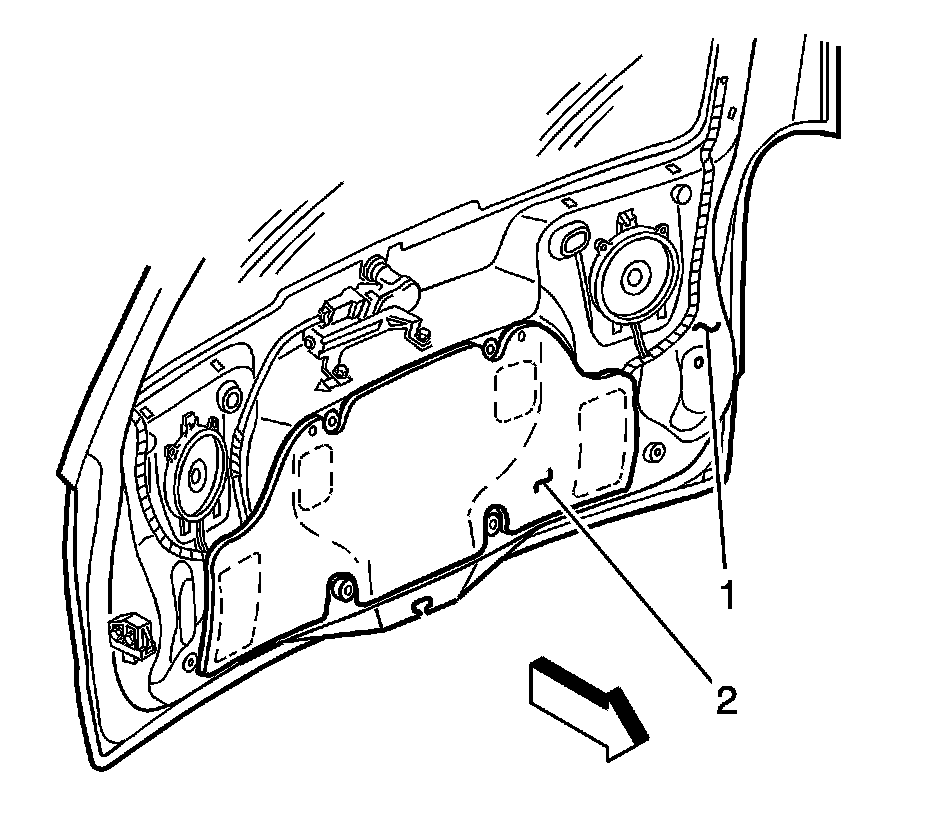

3. Release the water deflector (2) from the liftgate structure (1).

Installation Procedure




1. Position the water deflector (2) to the liftgate structure (1).
2. Firmly press the sealing adhesive in order to secure the water deflector (2) to the liftgate structure (1).
3. Install the liftgate trim panel to the liftgate. Refer to Liftgate Trim Panel Replacement (Service and Repair).
