Sit-N-Lift Chain Cover Replacement



Sit-N-Lift Chain Cover Replacement

Removal Procedure

1. Extend the seat out from the vehicle.




2. Remove the fasteners from the rear of the seat.

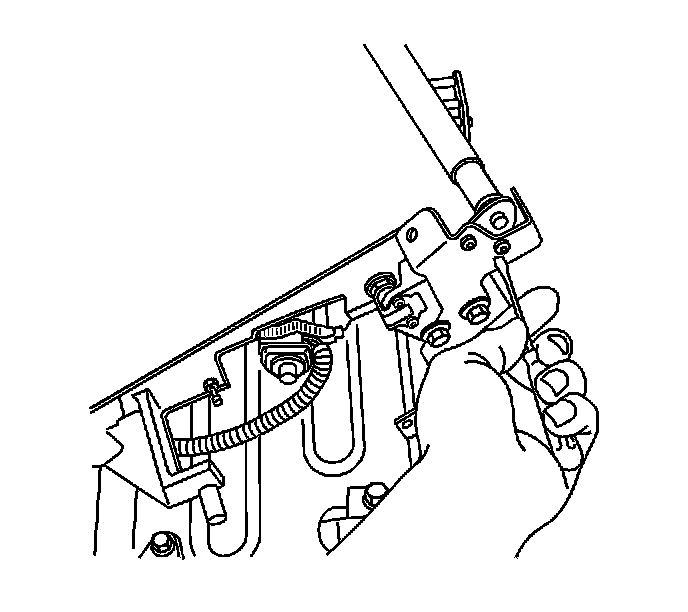

3. Remove the screws from the roll-up chain cover.
4. Remove the chain cover.

Installation Procedure




1. Install the roll-up chain cover.

Notice: Refer to Fastener Notice (Fastener Notice).

2. Install the screws to the chain cover.

Tighten the screws to 2 N.m (18 lb in).




3. Install the fasteners to the rear of the seat.
4. Return the seat to the vehicle.
5. Test the seat for proper operation.
