Steering Column Components



Harness Routing Views

Steering Column Components

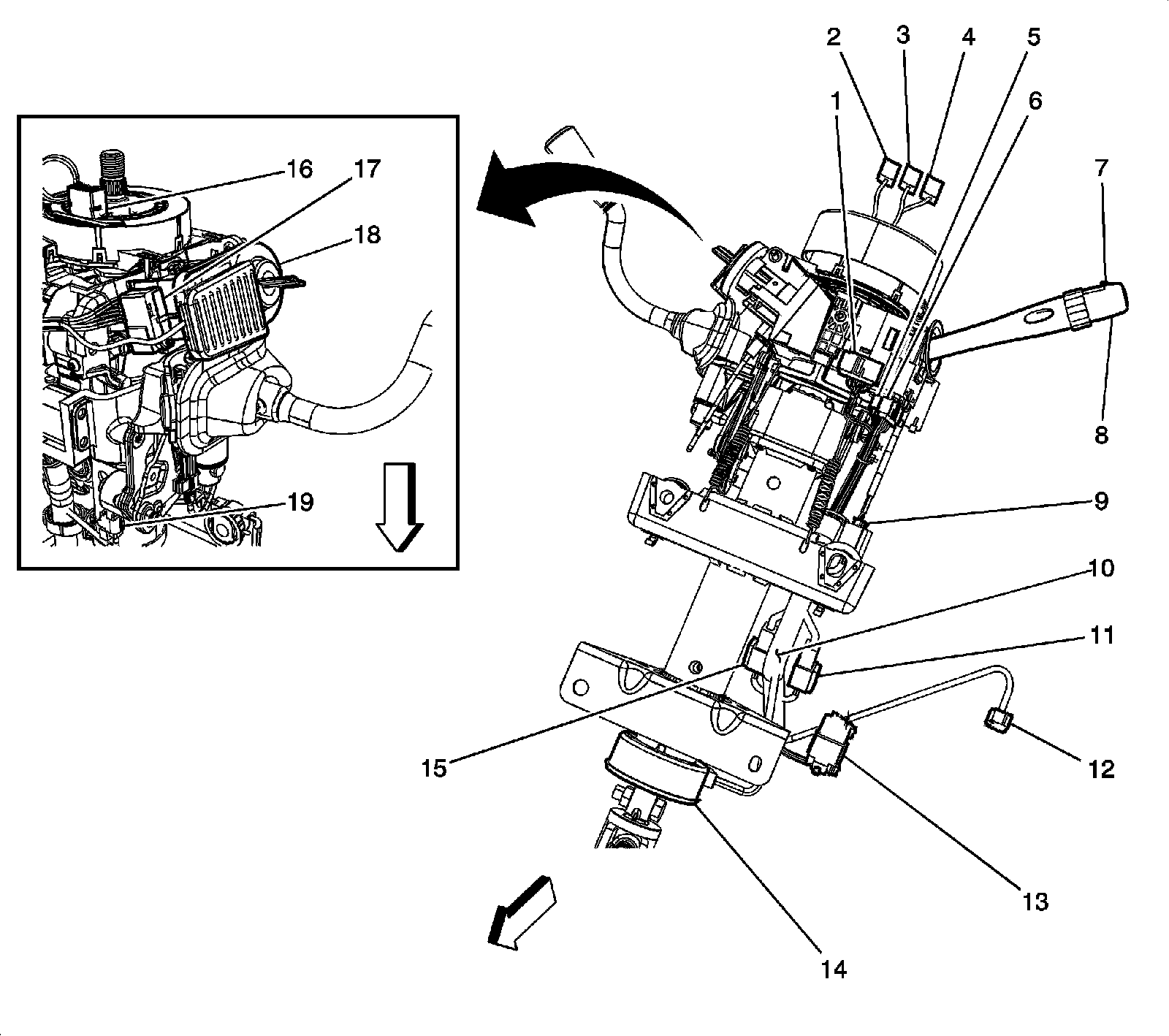

Steering Column Components:




1 - Turn Signal/Multifunction Switch X3
2 - X279 Inflatable Restraint Steering Wheel Module Coil to Steering Wheel Harness
3 - Inflatable Restraint Steering Wheel Module Coil X1 Connector
4 - Inflatable Restraint Steering Wheel Module Coil X2 Connector
5 - Turn Signal/Multifunction Switch X2
6 - Turn Signal/Multifunction Switch X1
7 - Rear Wiper/Washer Switch
8 - Turn Signal/Multifunction Switch
9 - Turn Signal/Multifunction Switch X4
10 - J277 and J279
11 - X277 Inflatable Restraint Steering Wheel Module Coil to Steering Column Harness
12 - X275 Inflatable Restraint Steering Wheel Module Coil to Body Harness
13 - X201 Steering Column Harness to Instrument Panel Harness
14 - Steering Wheel Speed Position Sensor (JL4)
15 - Theft Deterrent Exciter Module Connector (Pigtail)
16 - Inflatable Restraint Steering Wheel Module Coil
17 - Theft Deterrent Exciter Module
18 - Ignition Switch
19 - A/T Shift Lock Control Solenoid Connector
