Transmission Fluid Dam Replacement
Transmission Fluid Dam ReplacementRemoval Procedure 1.
Remove the case side cover. Refer to Control Valve Body Cover Replacement (
Control Valve Body Cover Replacement).
2.

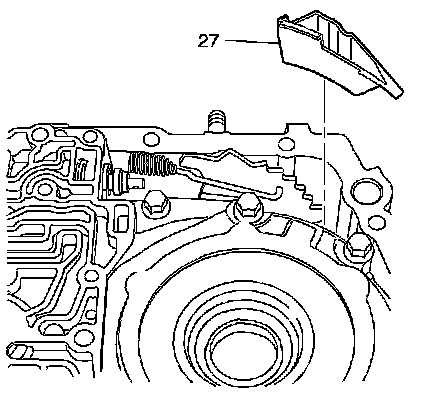

Remove the oil reservoir weir (27).
Installation Procedure 1.
Install the oil reservoir weir (27).
2.
Install the case side cover. Refer to Control Valve Body Cover Replacement (
Control Valve Body Cover Replacement).
