Range Selector Lever Cable Bracket Replacement

Range Selector Lever Cable Bracket Replacement

Removal Procedure

1. Remove the throttle body air inlet duct. Refer to Air Cleaner Inlet Duct Replacement (Air Cleaner Inlet Duct Replacement).
2. Use a flat-bladed tool in order to remove the automatic transaxle range selector cable from the cable lever and the bracket. Refer to Range Selector Lever Cable Replacement (Range Selector Lever Cable Replacement).

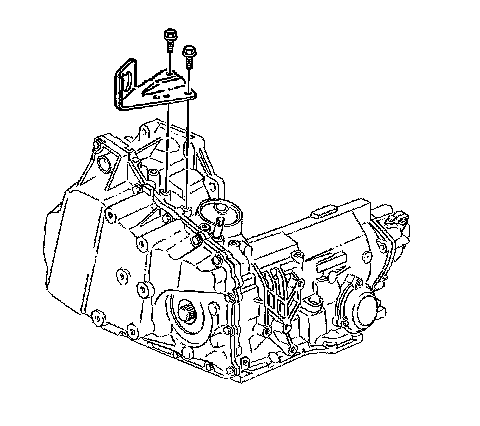

3. Remove the automatic transaxle range selector cable bracket bolts.
4. Remove the automatic transaxle range selector cable bracket.

Installation Procedure




1. Install the automatic transaxle range selector cable bracket.

Notice: Refer to Fastener Notice (Fastener Notice).

2. Install the automatic transaxle range selector cable bracket bolts.

Tighten the automatic transaxle range selector cable bracket bolts to 25 N.m (18 lb ft).

3. Install the automatic transaxle range selector cable to the cable lever and the bracket. Refer to Range Selector Lever Cable Replacement (Range Selector Lever Cable Replacement).
4. Adjust the automatic transaxle range selector cable. Refer to Range Selector Lever Cable Adjustment (Adjustments).
5. Install the throttle body air inlet duct. Refer to Air Cleaner Inlet Duct Replacement (Air Cleaner Inlet Duct Replacement).
