Wiring Harness: Service and Repair



Wiring Harness Replacement

Removal Procedure

1. Remove the case side cover. Refer to Control Valve Body Cover Replacement (Control Valve Body Cover Replacement).

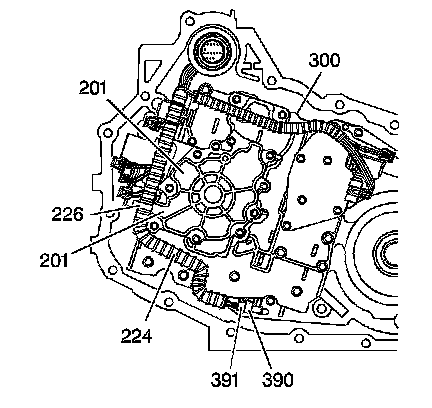

2. Use a small flat-bladed tool in order to remove the wiring harness from the solenoid valve(s) (315A, 315B, 322, 334 and/or 440), TFP manual valve position switch (395) and/or the temperature sensor (391).

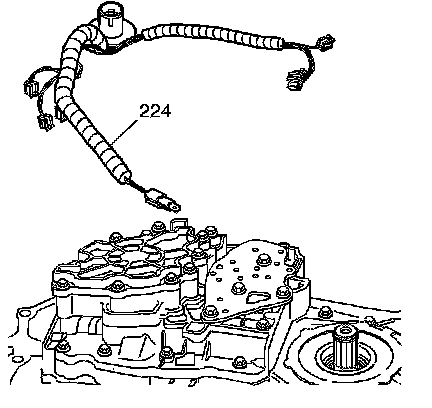

3. Remove the wiring harness (224).
4. Remove the clips retaining the solenoid(s).

Installation Procedure




1. Connect the wiring harness (224).




2. Install the wiring harness to the solenoid valve(s) (315A, 315B, 322, 334 and/or 440), TFP manual valve position switch (395) and/or the temperature sensor (391).
3. Install the case side cover. Refer to Control Valve Body Cover Replacement (Control Valve Body Cover Replacement).
