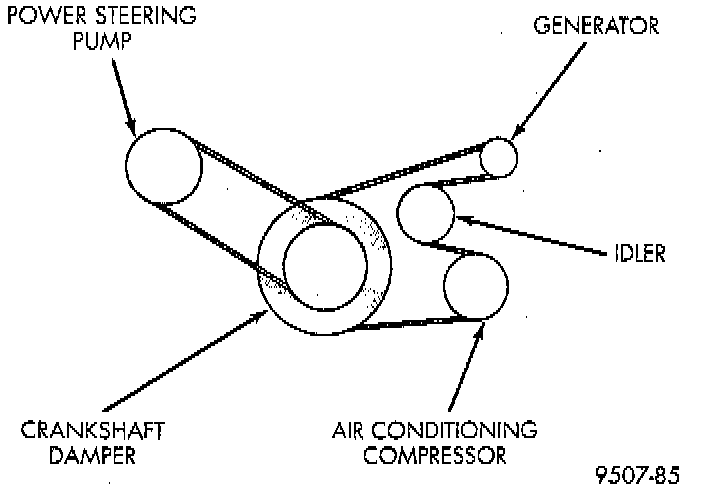

Alternator Belt

For conventional belts and Poly-V belts, use belt tensioning Special Tool Kit C-4162, or equivalent to obtain proper belt tension. Adjust the belt tension for a New or Used belt as prescribed in specifications.
1. Loosen T-Bolt locking nut A and pivot bolt B to remove and install Poly V belt and/or adjust belt tension.
2. Tighten adjusting bolt to adjust belt tension to specification.
3. Tighten T-Bolt locking nut A and pivot bolt B to 54 Nm (40 ft. lbs).
