Transmission Speed Sensor: Testing and Inspection

Input Speed Sensor Check:

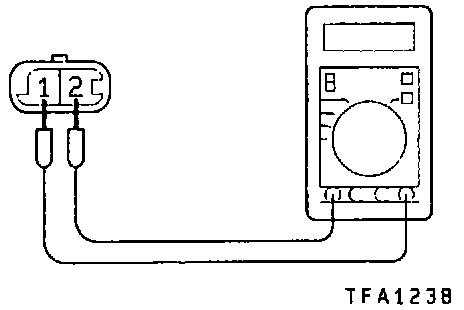

INPUT SPEED SENSOR CHECK

(1) Disconnect the input speed sensor connector.

(2) Measure the resistance between the input speed sensor side connector terminals 1 and 2.

Standard value: 0.3k-1.2k ohms

(3) If the resistance is outside the standard value, replace the input speed sensor.

Output Speed Sensor Check:

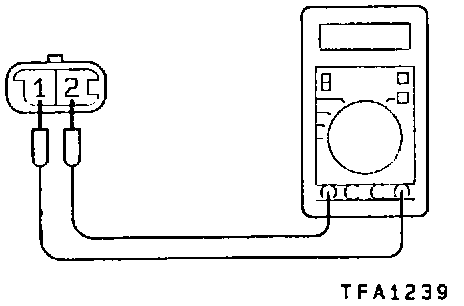

OUTPUT SPEED SENSOR CHECK

(1) Disconnect the output speed sensor connector.

(2) Measure the resistance between the input speed sensor side connector terminals 1 and 2.

Standard value: 0.3k-1.2k ohms

(3) If the resistance is outside the standard value, replace the output speed sensor.
