Column Switch

Windshield Wiper And Washer - Removal And Installation:

CAUTION: Before removal of air bag module and clock spring, refer SRS Service Precautions, Air Bag Module and Clock Spring.

NOTE: Do not remove parts marked with* from the column switch except when removal is absolutely necessary.

REMOVE
- Horn pad
- Air bag module
- Steering wheel

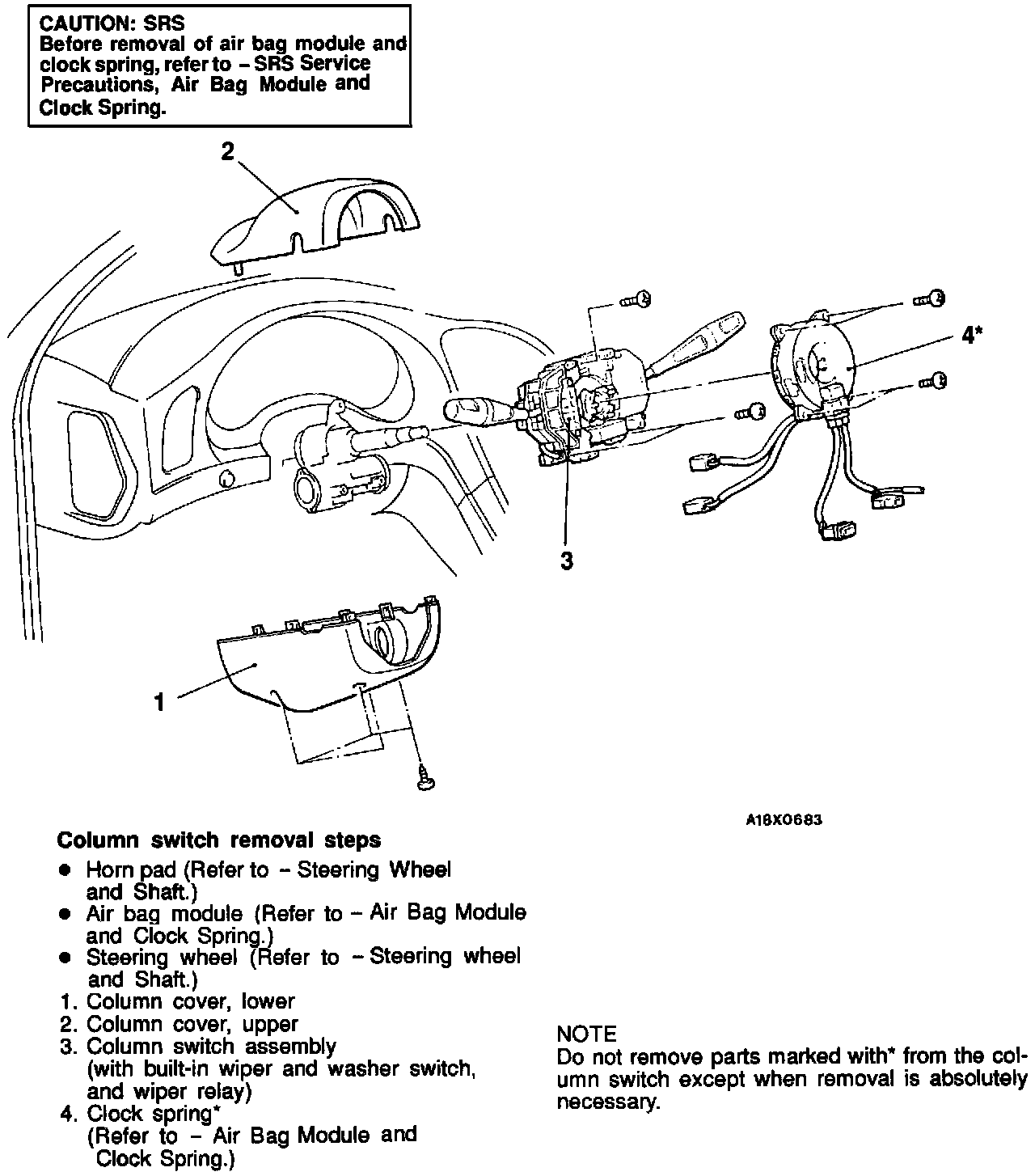

1. Column cover, lower
2. Column cover, upper
3. Column switch assembly
4. Clock spring*

INSTALL
1. Clock spring*
2. Column switch assembly
3. Column cover, upper
4. Column cover, lower
- Steering wheel
- Air bag module
- Horn pad
