Clutch: Service and Repair
MODULAR CLUTCHREMOVAL 1.
Remove transaxle and modular clutch assembly from vehicle.
2.

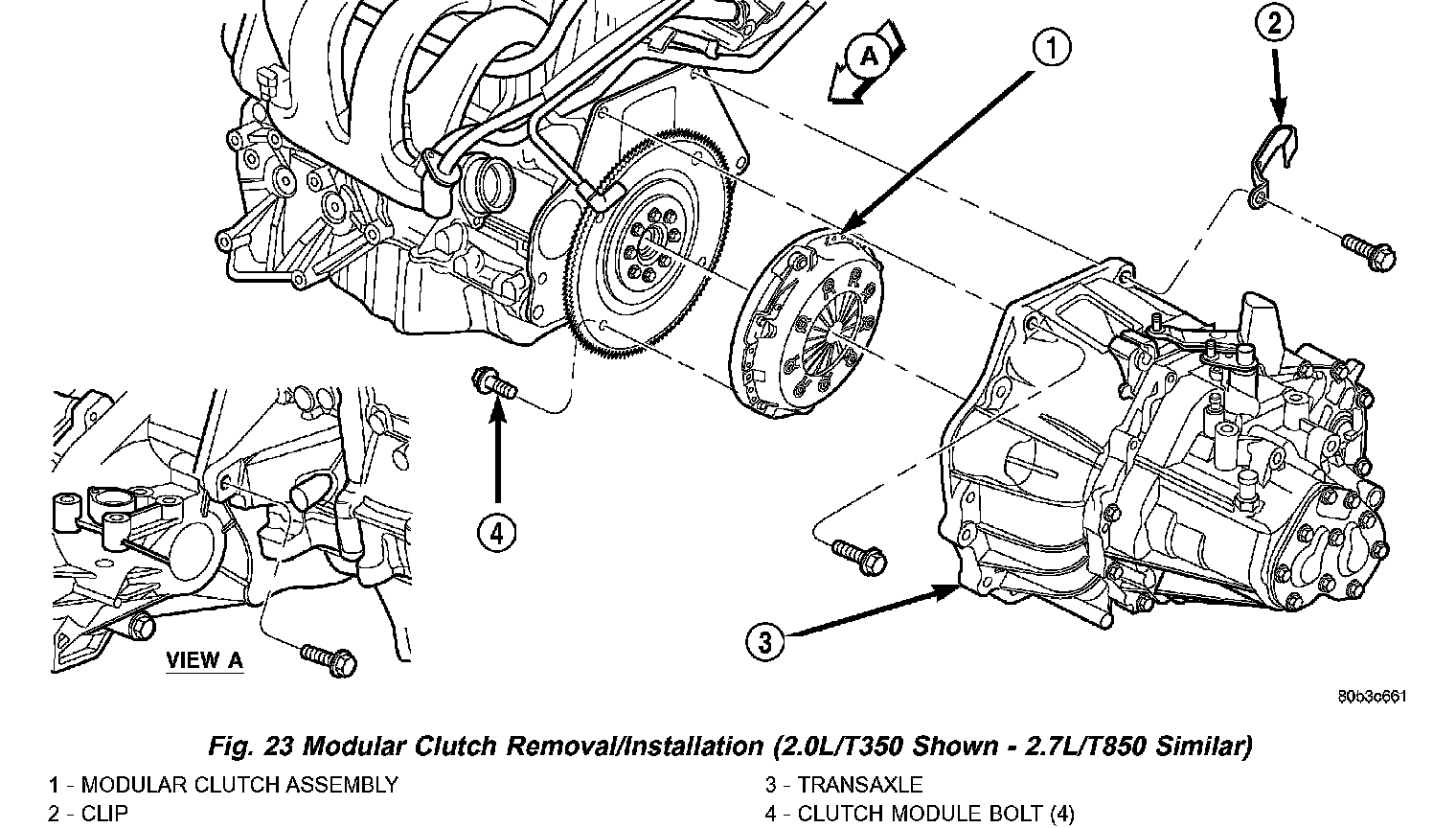

Remove the modular clutch assembly from the transaxle input shaft. Handle carefully to avoid contaminating the friction surfaces (Fig. 23).
INSTALLATION 1.
Install modular clutch assembly onto input shaft (Fig. 23).
2.
Install transaxle to vehicle.
