Grille: Service and Repair

GRILLE

REMOVAL

1. Remove radiator closure.

Fig. 19:

2. Remove front fascia (Fig. 19). Refer to Front Bumper.

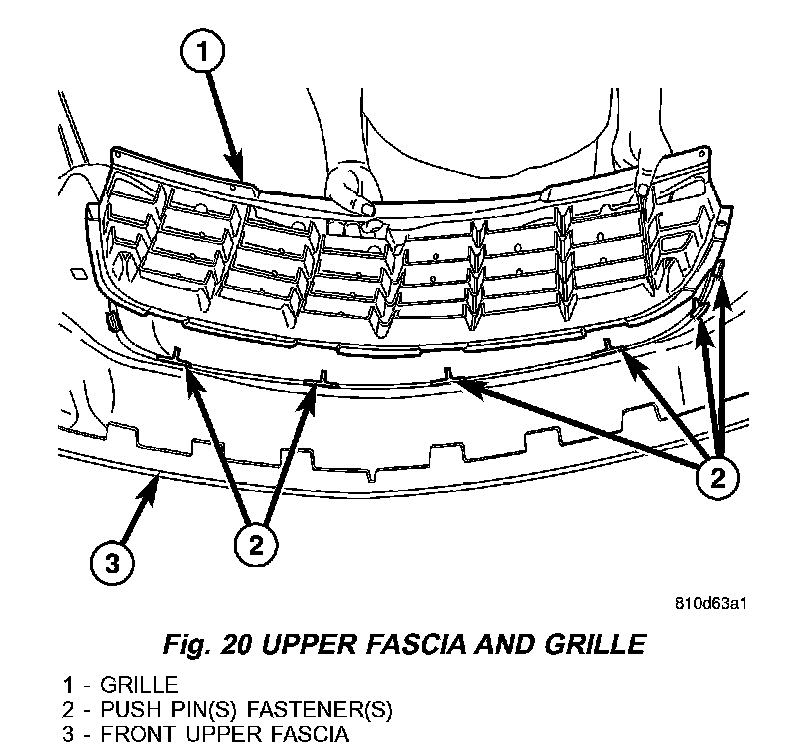

Fig. 20:

3. Remove grille from front fascia (Fig. 20). Using care and depress push pin(s) fasteners to release the grille.

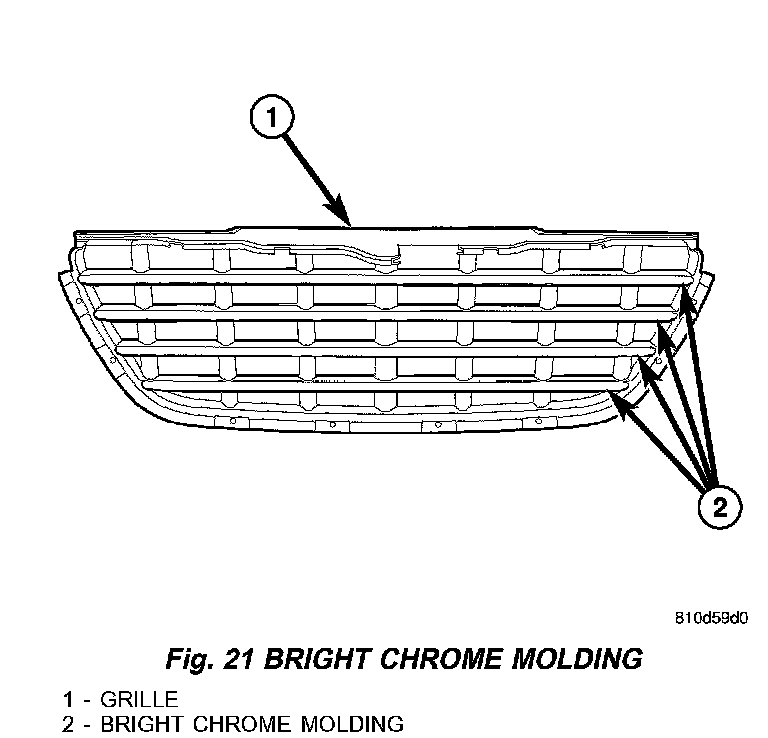

Fig. 21:

4. Remove bright chrome molding from Grille (Fig. 21).
5. Depress molding locking tabs and pull outward to release molding.

INSTALLATION

1. Place bright chrome molding into position on grille (Fig. 21).
2. Press molding into the locked position.
3. Place grille into position on the front fascia (Fig. 20).
4. Using care, press grille onto push pin(s) fasteners.
5. Install front fascia (Fig. 19).
6. Install radiator closure.
7. Close hood.
